Product Details
＋
Product Description
|
Product Name
|
XK-F203
|
|
Function
|
A dual-screen portable ground control station
|
|
Package
|
Packed in a professional shipping box
|
1. Product performance description

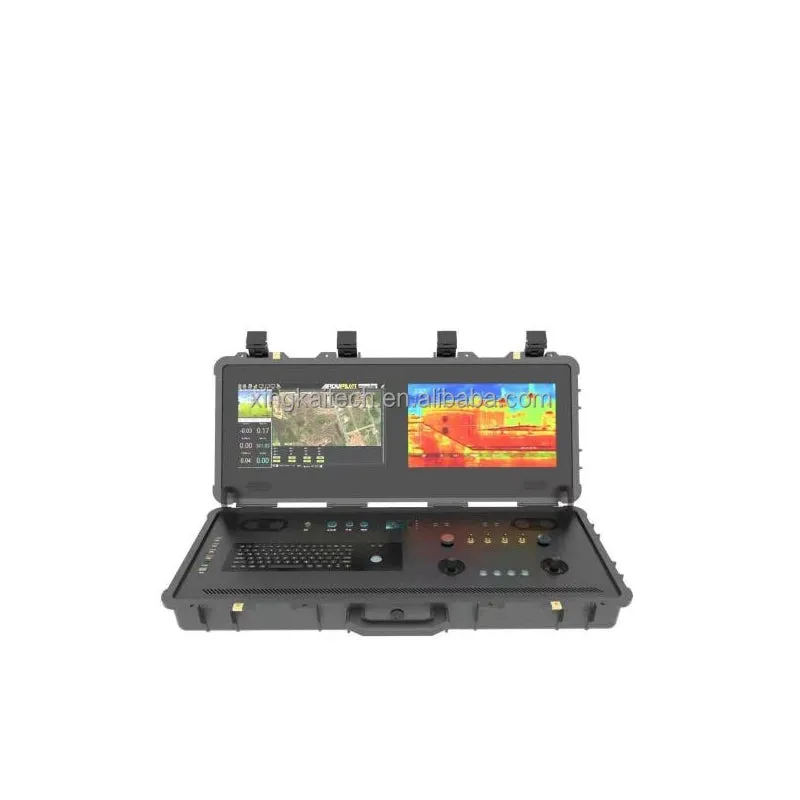

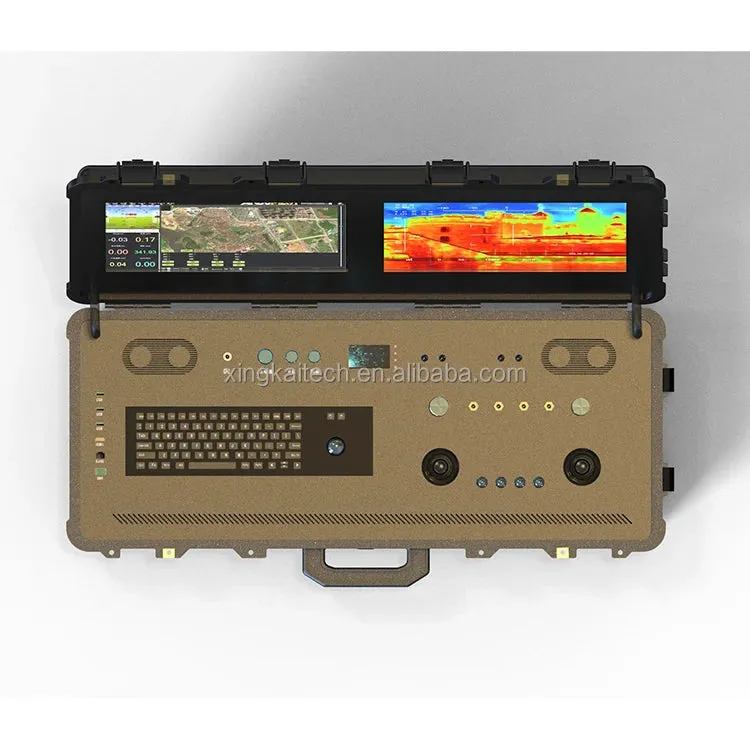

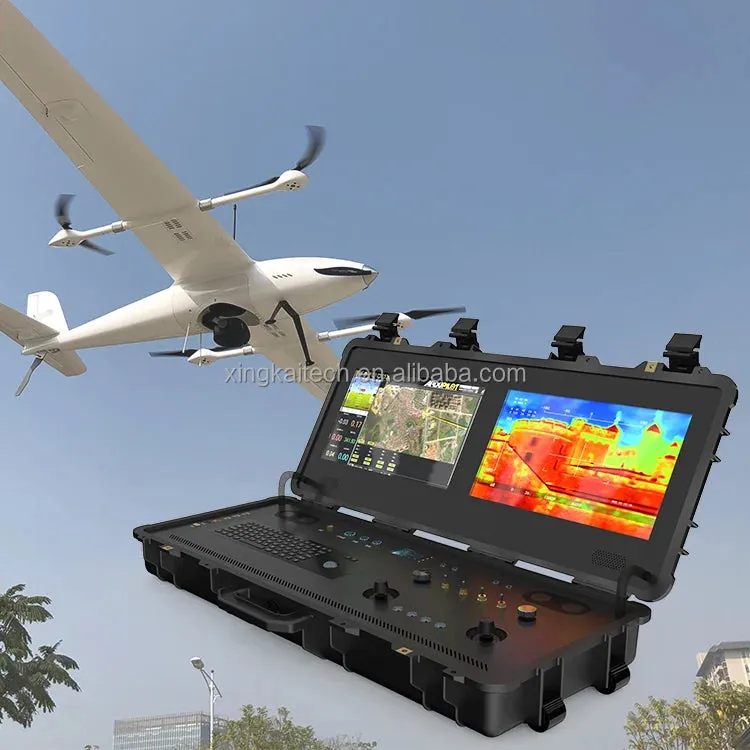

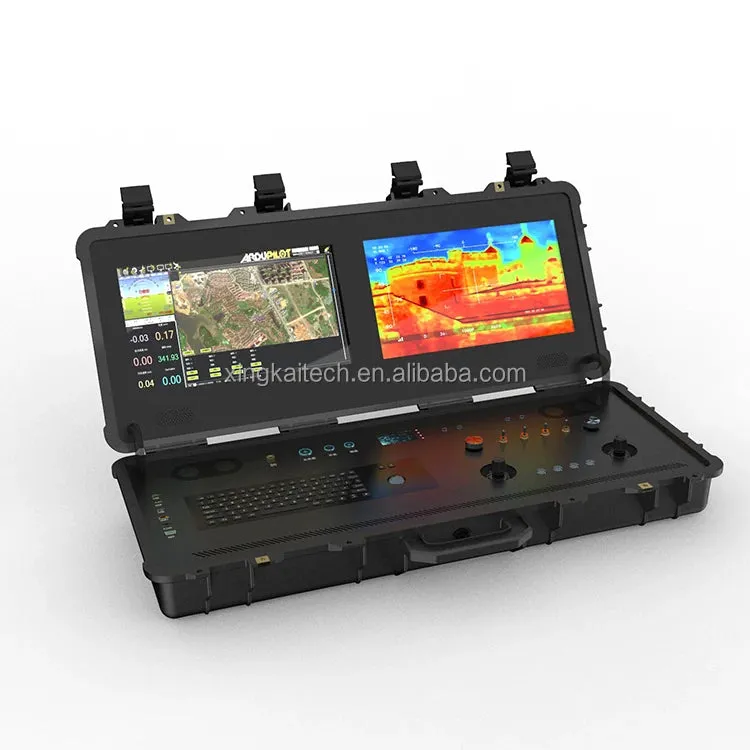

XK-F203 is a dual-screen portable ground control station with rugged ground computer,integrated industrial grade PC system and data link remote control system. XK-F203 provides the function such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc. The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads.
2. Technical Parameter:
|
Technical Parameter
|
|
|
Box Type
|
Military three-proof safety box
|
|
Overall Dimensions
|
968MM(L)*406MM(W)*155MM(H)
|
|
Weight
|
Less than 20KG
|
|
Shell material
|
PVC
|
|
IP rating
|
IP67
|
|
Working Temperature
|
-20°C~ 60°C
|
|
Colour
|
Military green
|
|
Portable Features
|
Built in pull rod, external lifting cover
|
|
Operation Panel
|
|
|
Panel material
|
3K Carbon fiber plate
|
|
Interface support
|
USB*3,RS232*1,DC IN,HDMI,RJ45
|
|
Feeder and interface
|
N,SMA
|
|
Human-computer interaction
|
Industrial mouse button suit
|
|
Audio input / output
|
Microphone, speaker
|
|
Antenna interface
|
antenna interface of the radio link
|
|
Switch parameters
|
Main power supply, power on key, link power supply
|
|
Others
|
Industrial cooling fan
|
|
Industrial Control Host
|
|
|
Processor
|
i9 CPU NVIDIA RTX A4000
|
|
Operating system
|
Windows 10
|
|
Memory
|
16G
|
|
Hard disk
|
256G
|
|
I/O Interface
|
USB,Network port,Serial port,HDMI
|
|
Left and right dual display
|
|
|
Dimensions
|
17.3inches
|
