Product Details

48V 1000W 20 inch Front Fat Tire Frame Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel, a LED light and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.

Features:

  • Approx. 28 mile/h (45 KPH) top speed
  • Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs
  • The Pedal Assist System (PAS) allows riding an e-bike without throttle response for less fatigue for a long-distance journey
  • Supplied with a twist throttle, the motor is easily activated by twisting the handle, while 3 indicators show the battery status
  • Brake levers cut off the power and brake when riding; CE certificated for quality & safety assurance
  • Battery Recommendation: Lead Acid Battery featured in nominal voltage 48v, nominal capacity 17-20Ah is compatible with the motor.

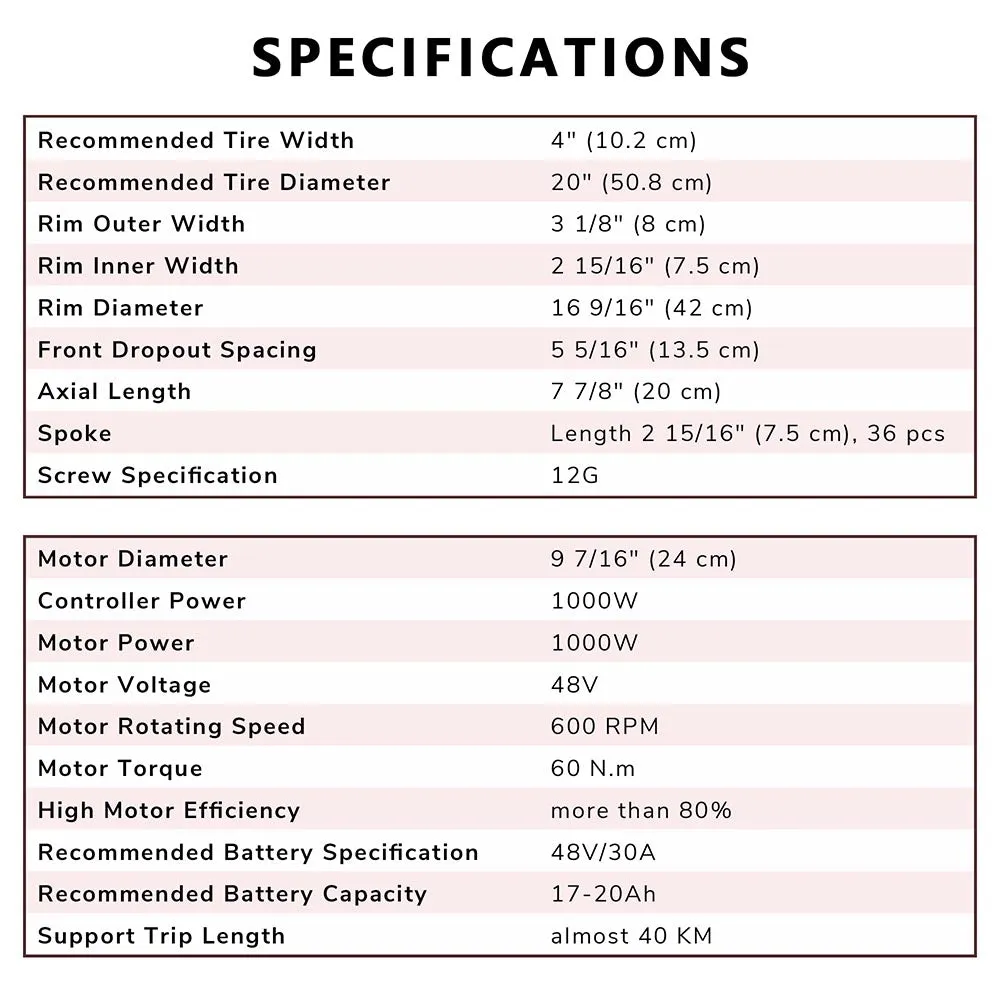

Specifications:

  • The ebike conversion kit includes motorized wheel (not included the tire), motor controller, Thumb Throttle, power break lever, wire harness, pedal assist sensor

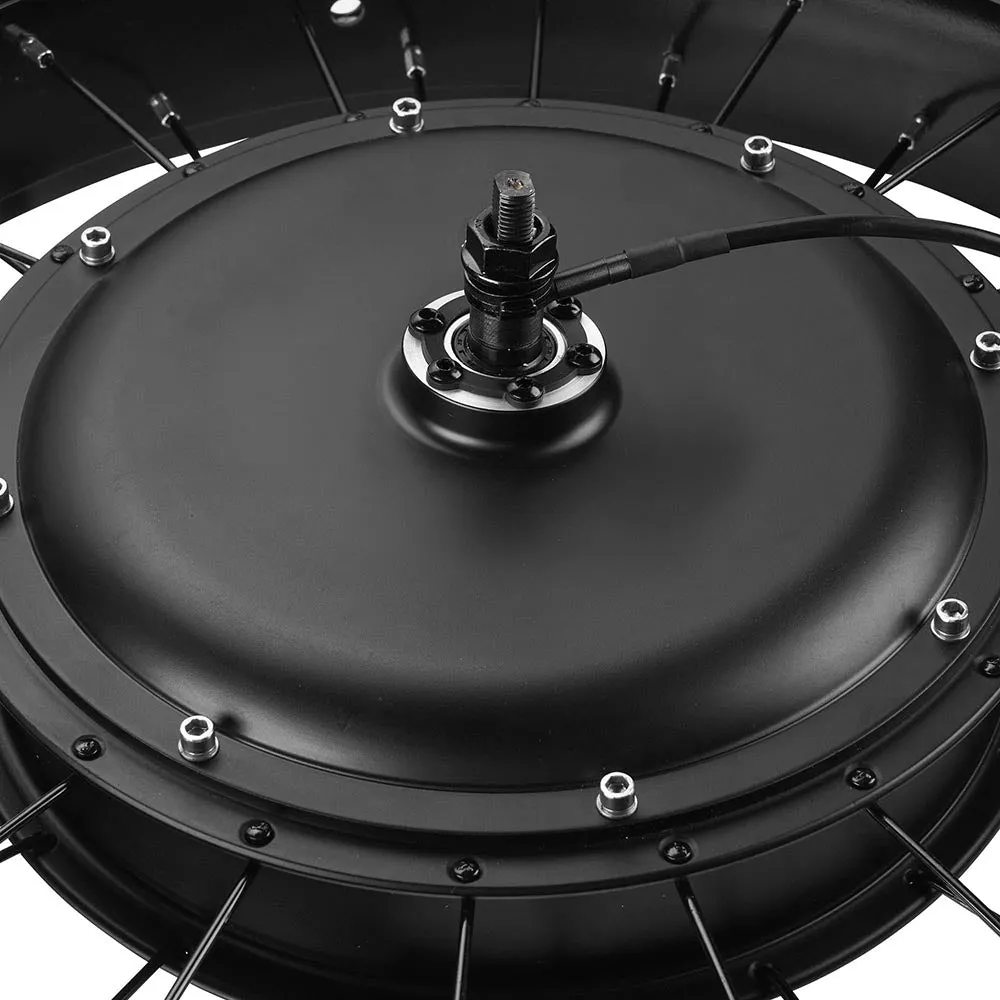

  • Quiet and reliable brushless gearless hub motor
  • Motor specifications: 48V / 1000W / 470RPM
  • High motor efficiency: 80%

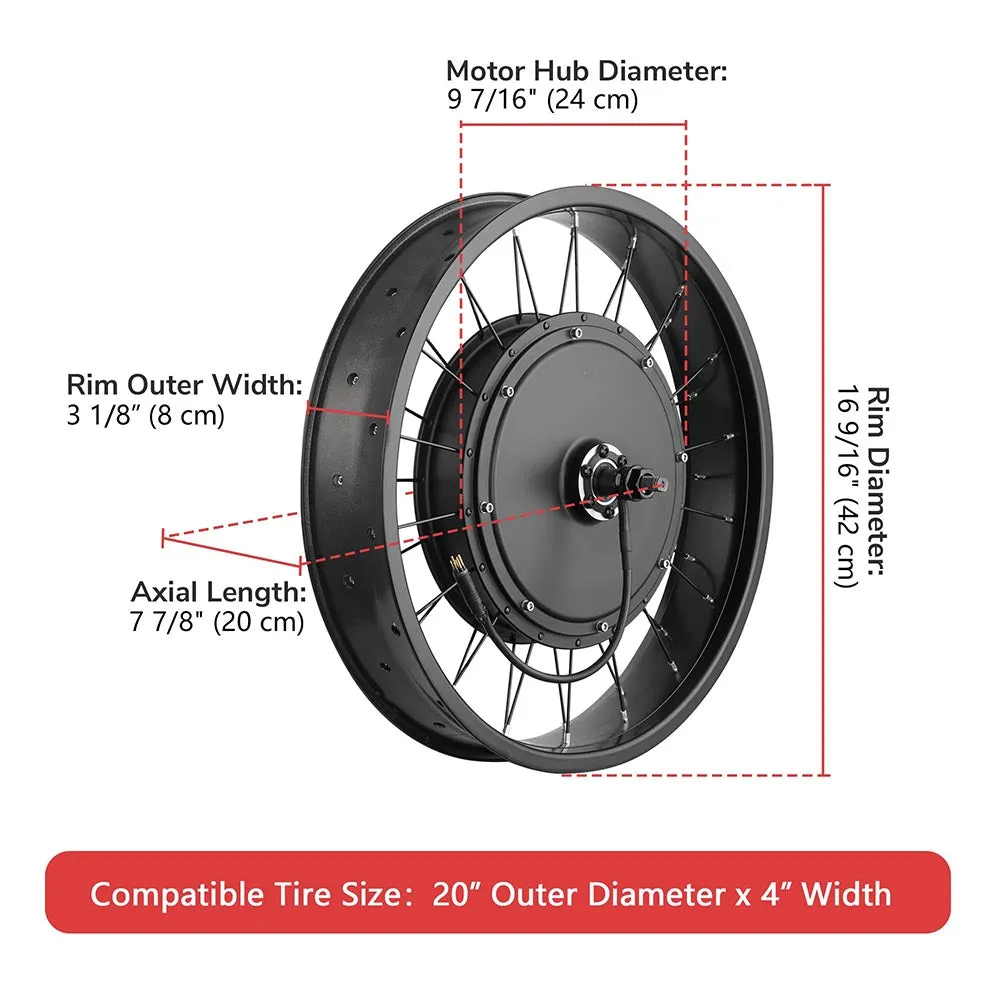

  • Motor diameter: 245mm

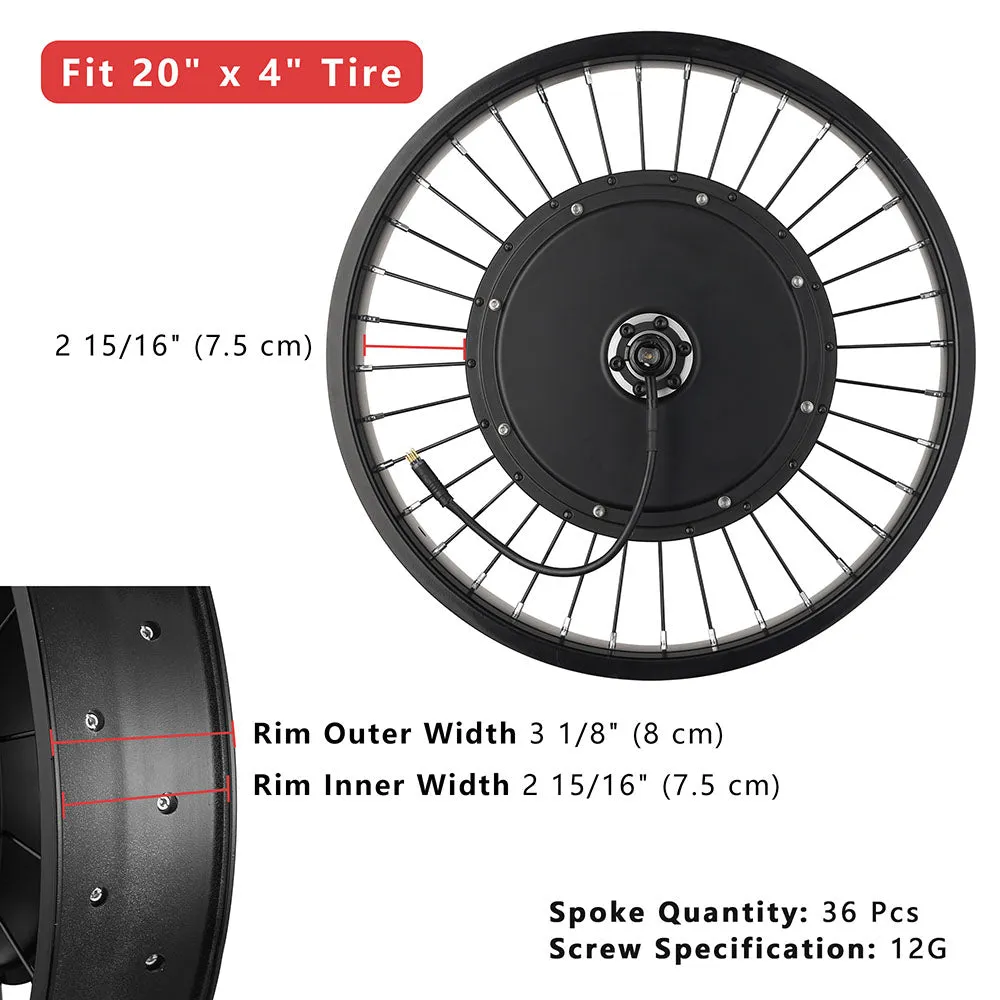

  • Rim: width 3 1/4" (8.3cm)
  • Tire: width 4" (not inculdes the tire)

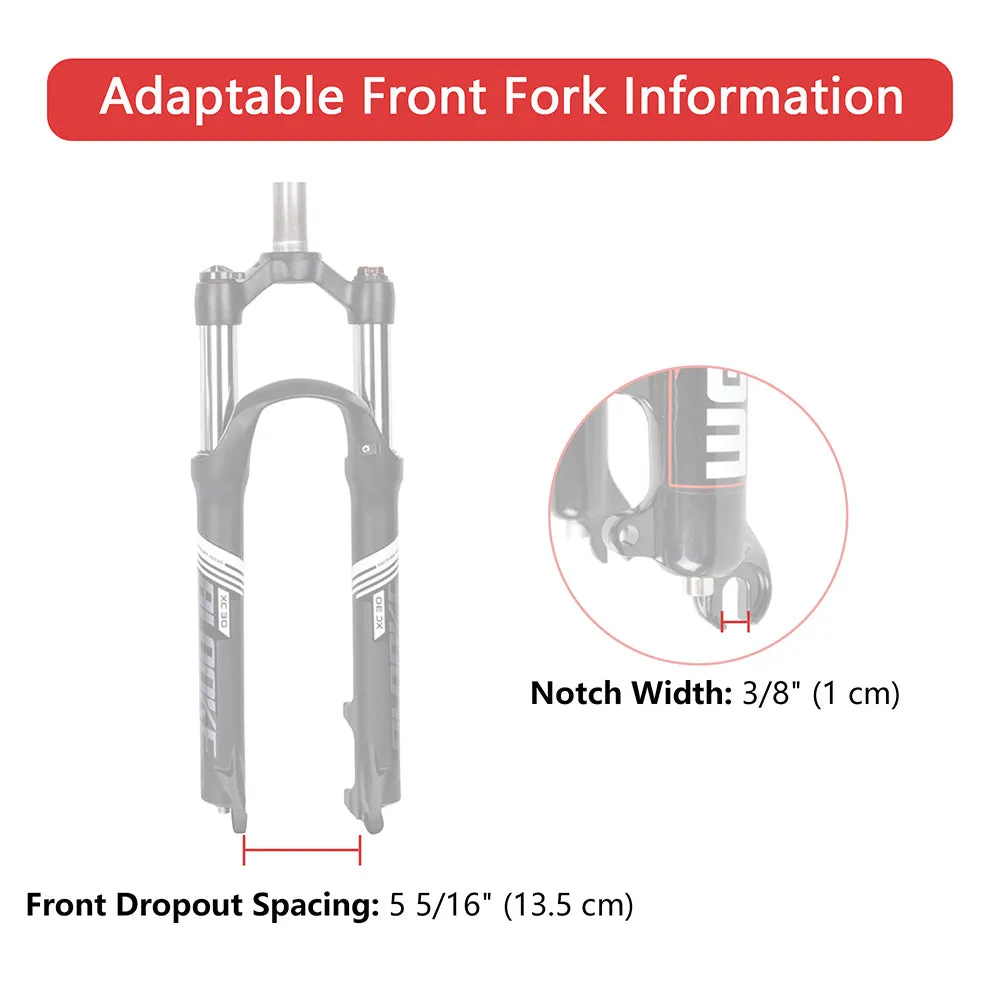

  • The motor dropout spacing is 135MM

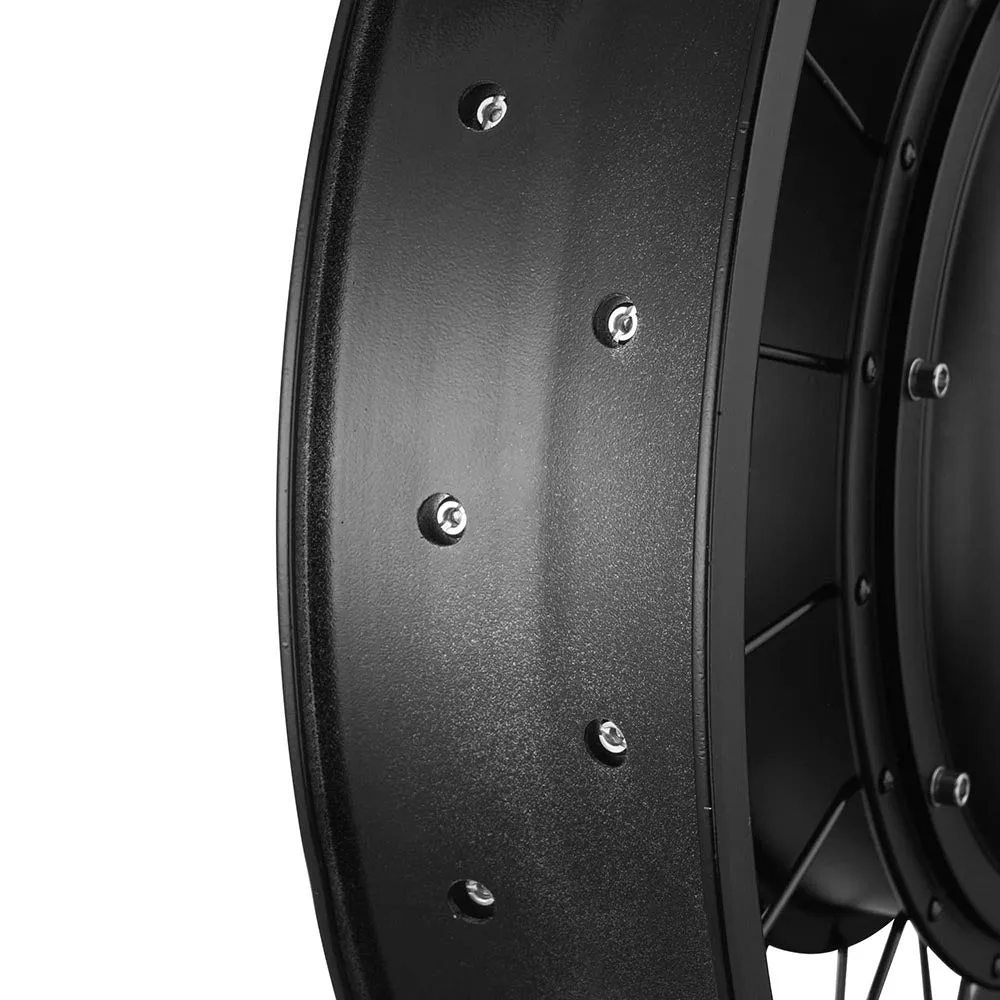

  • Brushless Front Hub Motor mounted 20" fat tire single wall aluminum rim(rim width is 3 1/4")
  • Thumb Throttle with 3 LEDs indicator lights
  • Applicable Bike: Fat Tire Electric Bike(Not suit for other bike)
  • Applicable Tire: 20"x4"
  • Hub size: 16-1/2"
  • Net weight: 20.9 Lbs (9.5 kg)

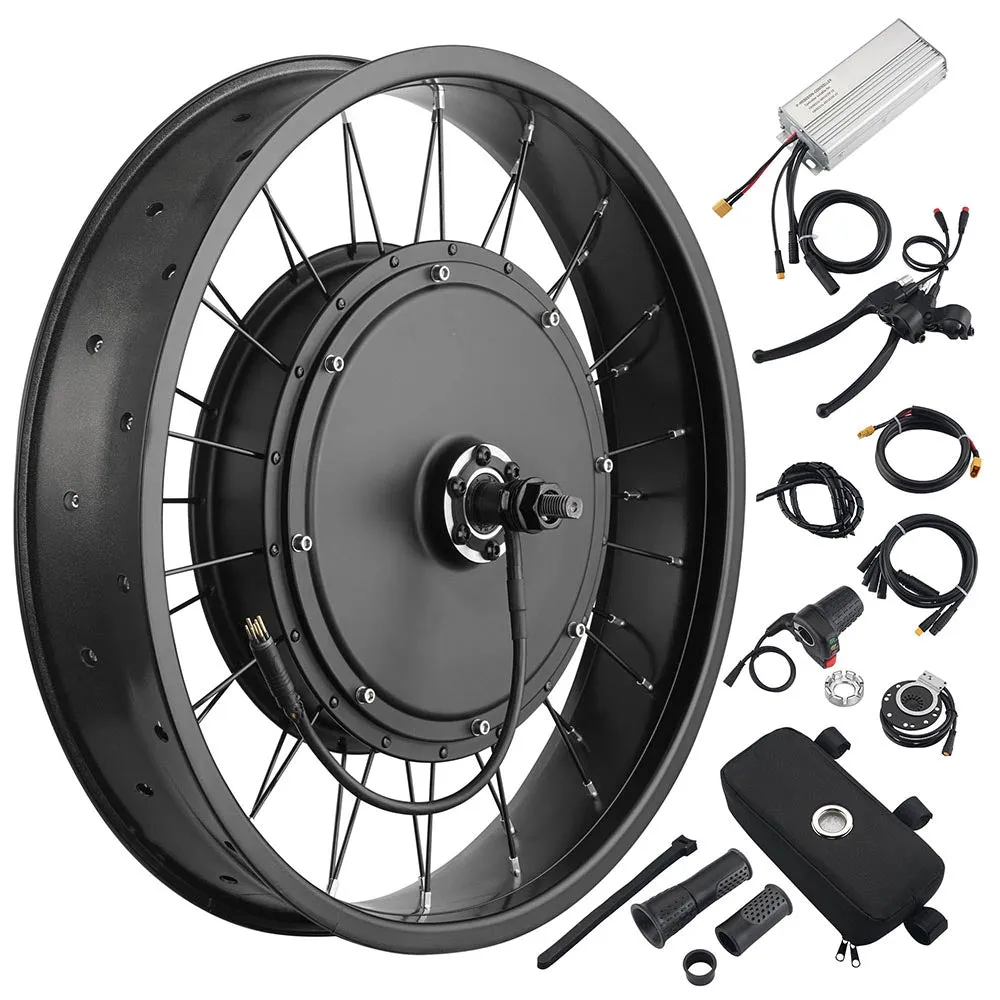

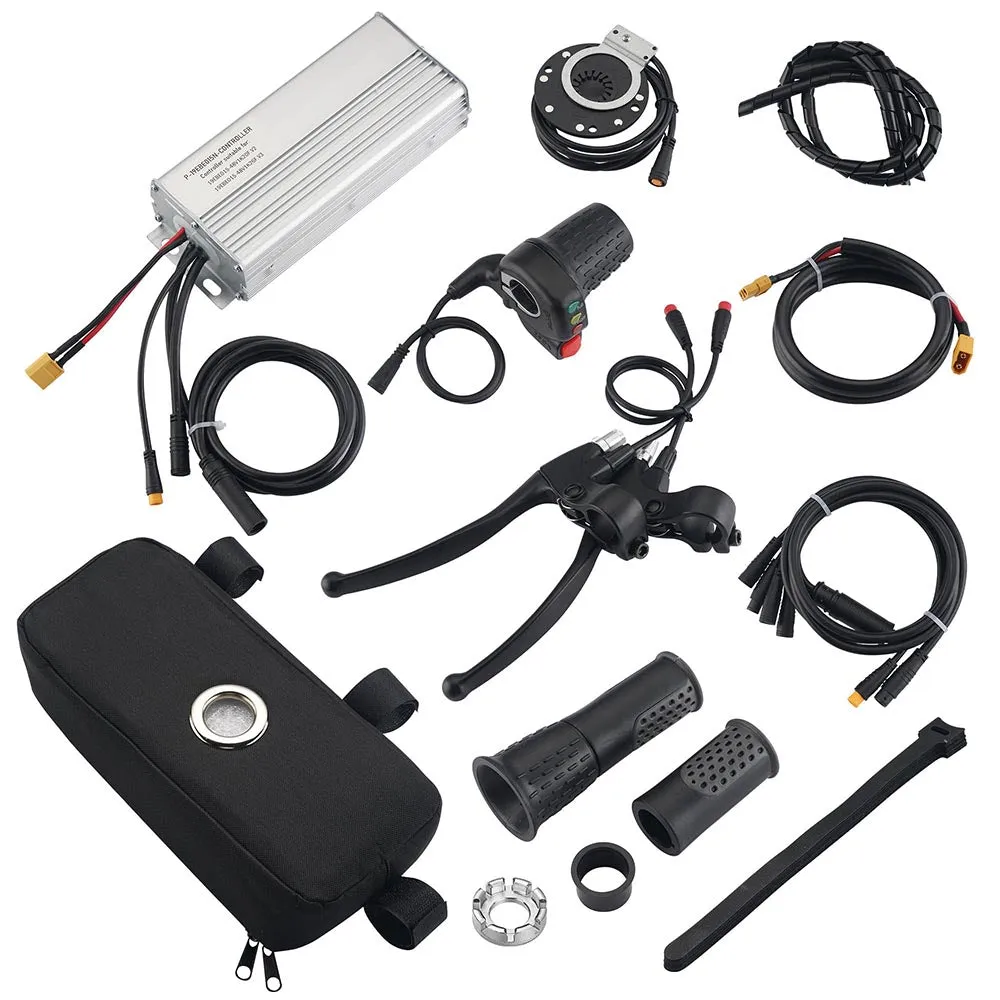

Package Includes:

  • 1x 20" Front Wheel with Brushless Hub Motor (Tire is not included)
  • 1x 1T4 Waterproof Battery Extension Cord
  • 1x Dual Mode Motor Controller
  • 2x Brakes Levers
  • 2x Handle Grips
  • 10x Wire Ties
  • 2x Winding Pipes
  • 1x Controller Bag
  • 1x Hub Wire
  • 1x Twist Throttle
  • 1x PAS Sensor
  • 1x Spoke Key
  • 1x Manual

Notice:

  • 1.Must to wear a helmet before riding this electric bicycle for protection.
  • 2.Please go to those automobile repair shop with standard business license for modification.
  • 3.For safety reasons, it is not recommended to use in rainy days.
  • 4.It is only applicable to bicycle/snow bike, not tricycles, tractors, etc;
  • 5.Suitable battery type and parameters: 48V, 30 Ah, travel about 20km;Recommended capacity is at least 8.8AH or above.
  • 6. If you have any question about the compatible Model, please contact our Customer Service before purchasing.
  • 7.Battery not included.
TheLAShop 48v 1000w 20in Front Fat Tire Electric Bicycle Motor Kit
  • DefaultTitle

$ 52.86

$ 40.66
