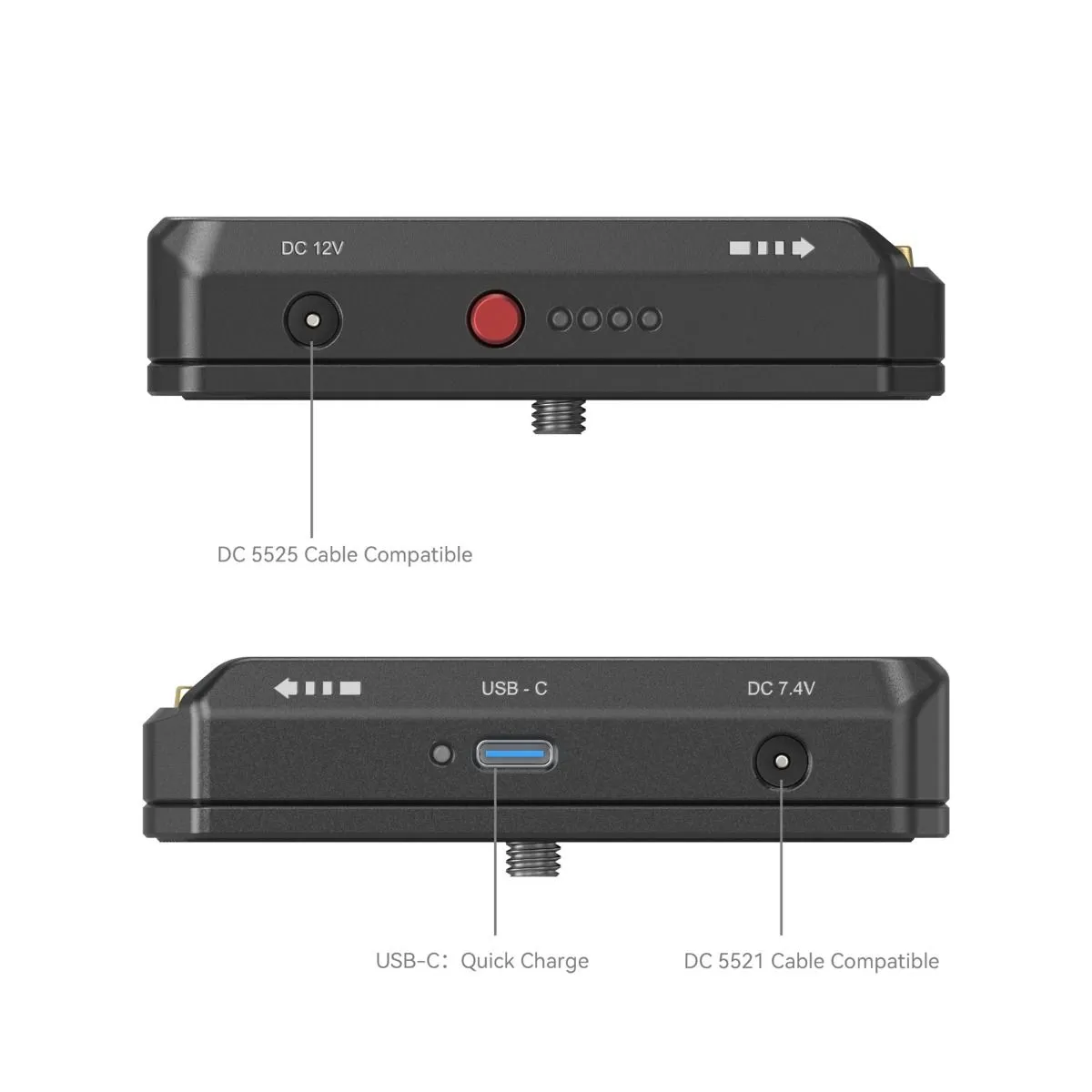

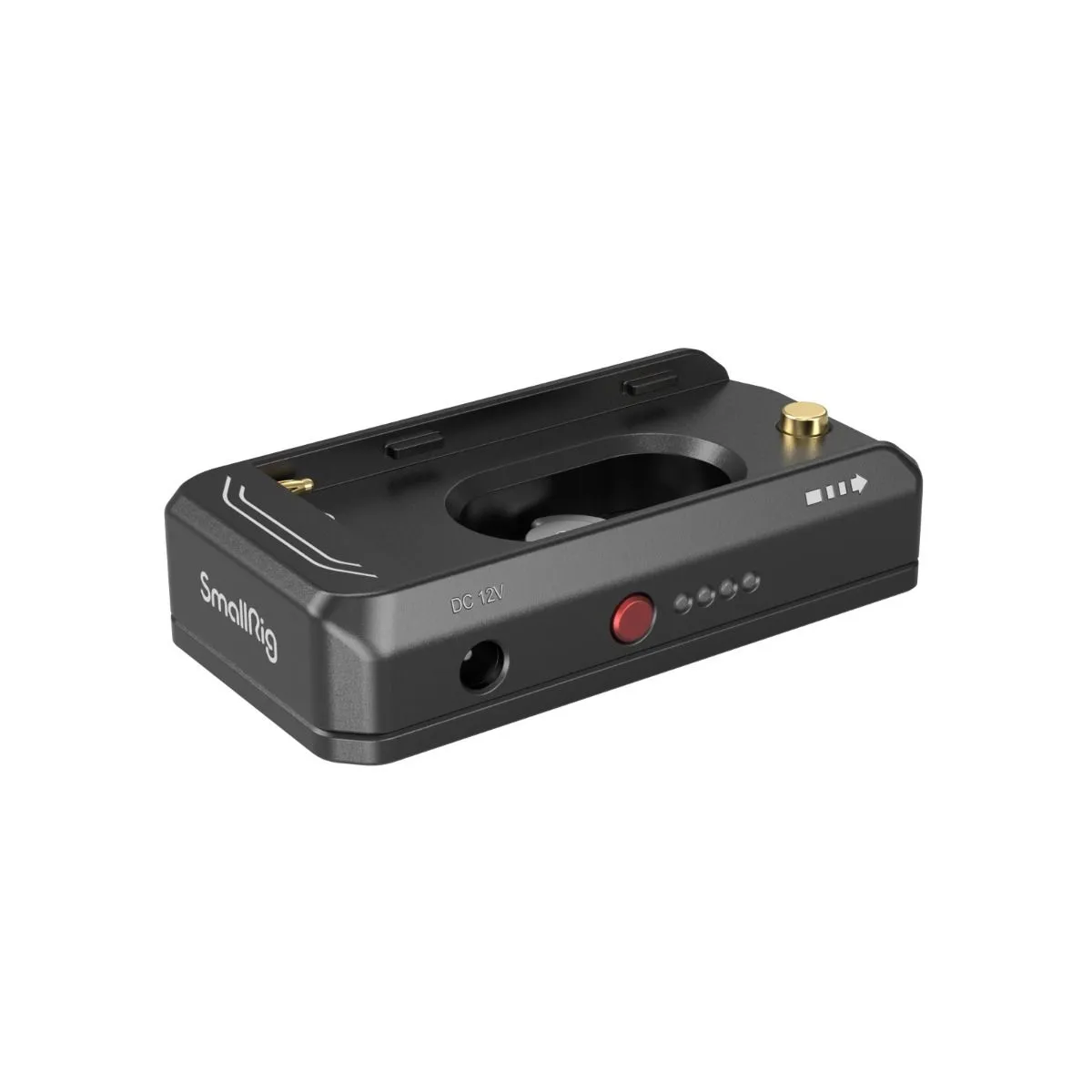

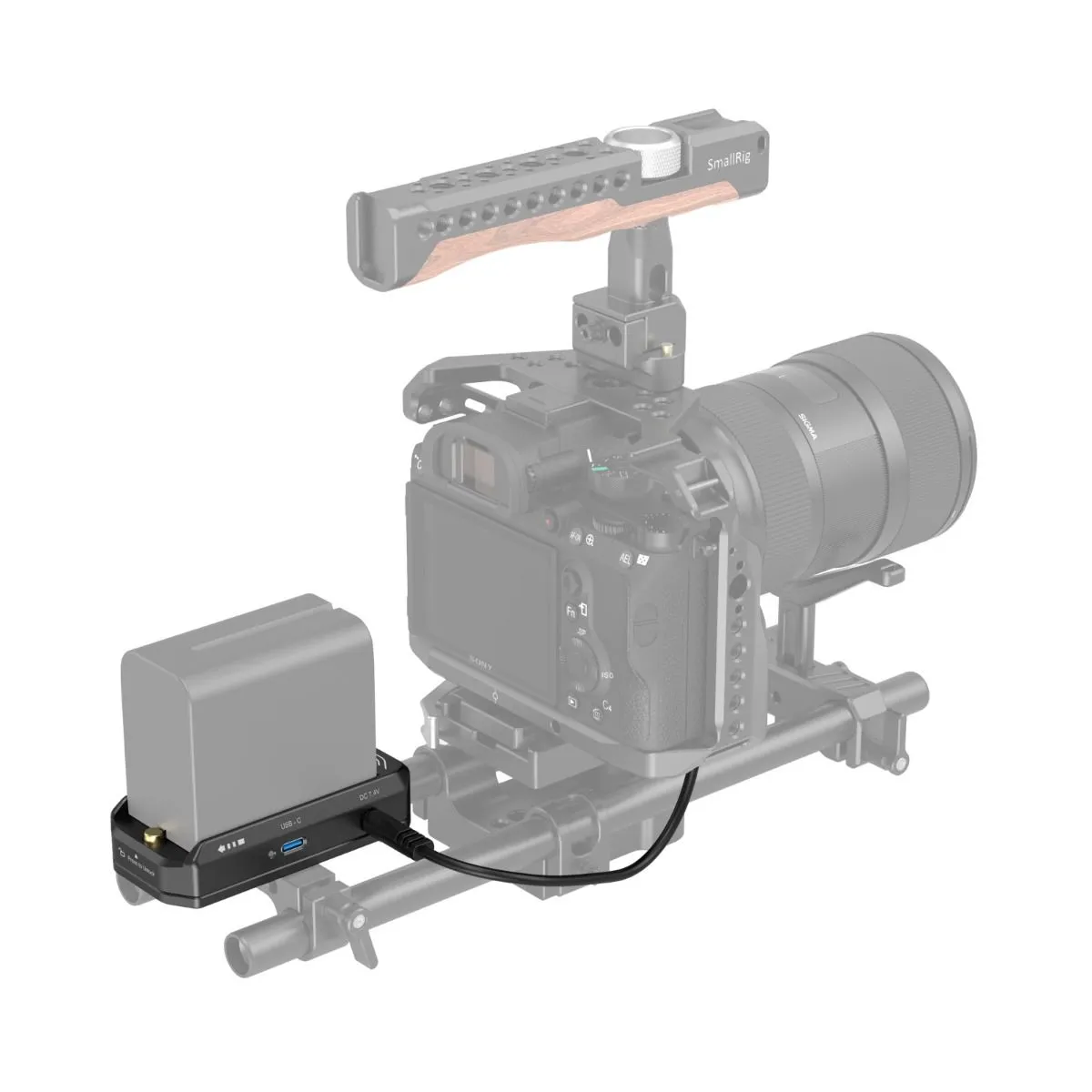

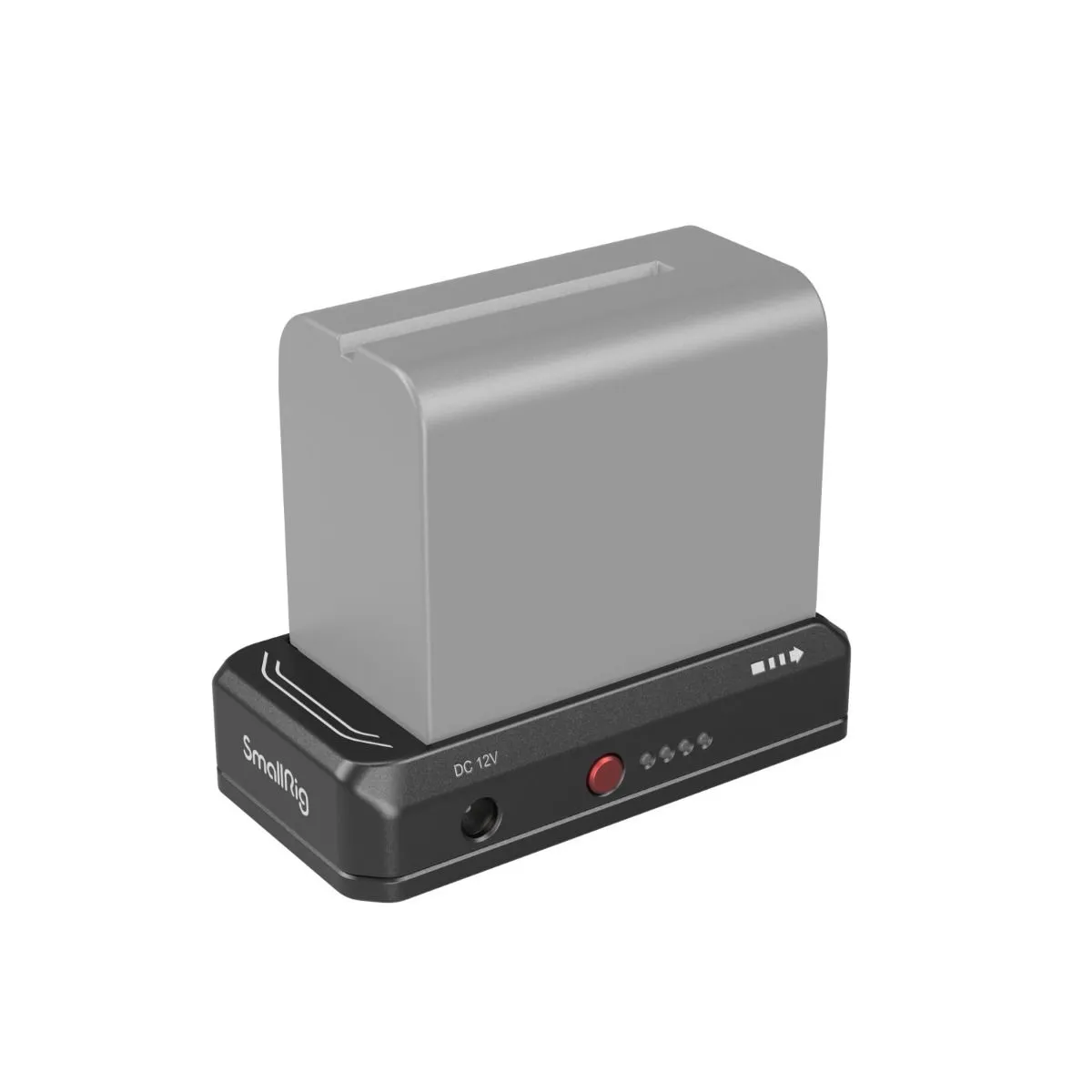

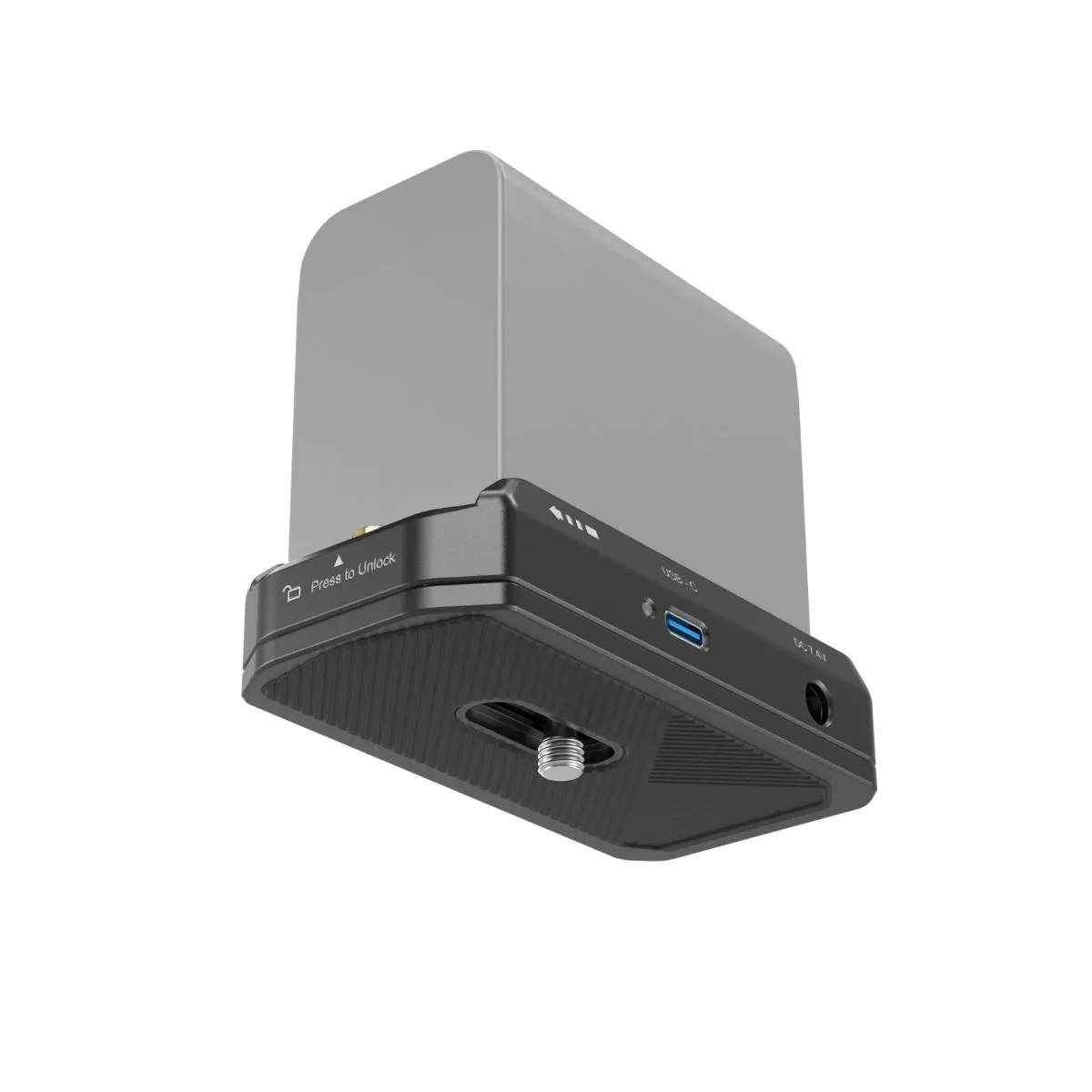

SmallRig NP-F Battery Adapter Mount Plate Kit with NP-FZ100 Dummy Battery Power Cable (Advanced Edition) 4341 is designed to enable NP-F batteries on the market (including Sony original and third-party batteries) to power Sony FX3 / FX30/ α7CR / α7C II / α7 IV/ ZV-E1 and various mirrorless cameras, the set can achieve long-lasting power supply. The NP-F Battery Plate is made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4''-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.
- Compatible with NP-F type batteries, paired with DC to NP-FZ100 dummy battery power cable, providing external power supply for Sony FX3 / FX30/ α7CR / α7C II / α7 IV/ ZV-E1 and various mirrorless cameras.
- Aluminum alloy and gold-plated electrical contacts make it more durable and conductive.
- Allows to access two devices with DC 7.4V and 12V dual output Maximum DC and USB-C output: 36W.
- The USB-C interface supports bi-directional input and output with 36W power.
- Features automatic wake-up and sleep modes to avoid damage to the camera.
- Comes with USB-C mode and power indicators for easy viewing of charging and state of charge.
- Each output port features a short circuit and high current protection to ensure safety during use.
Certification: FCC、UKCA、CE、ISED、RoHS
Key Features:

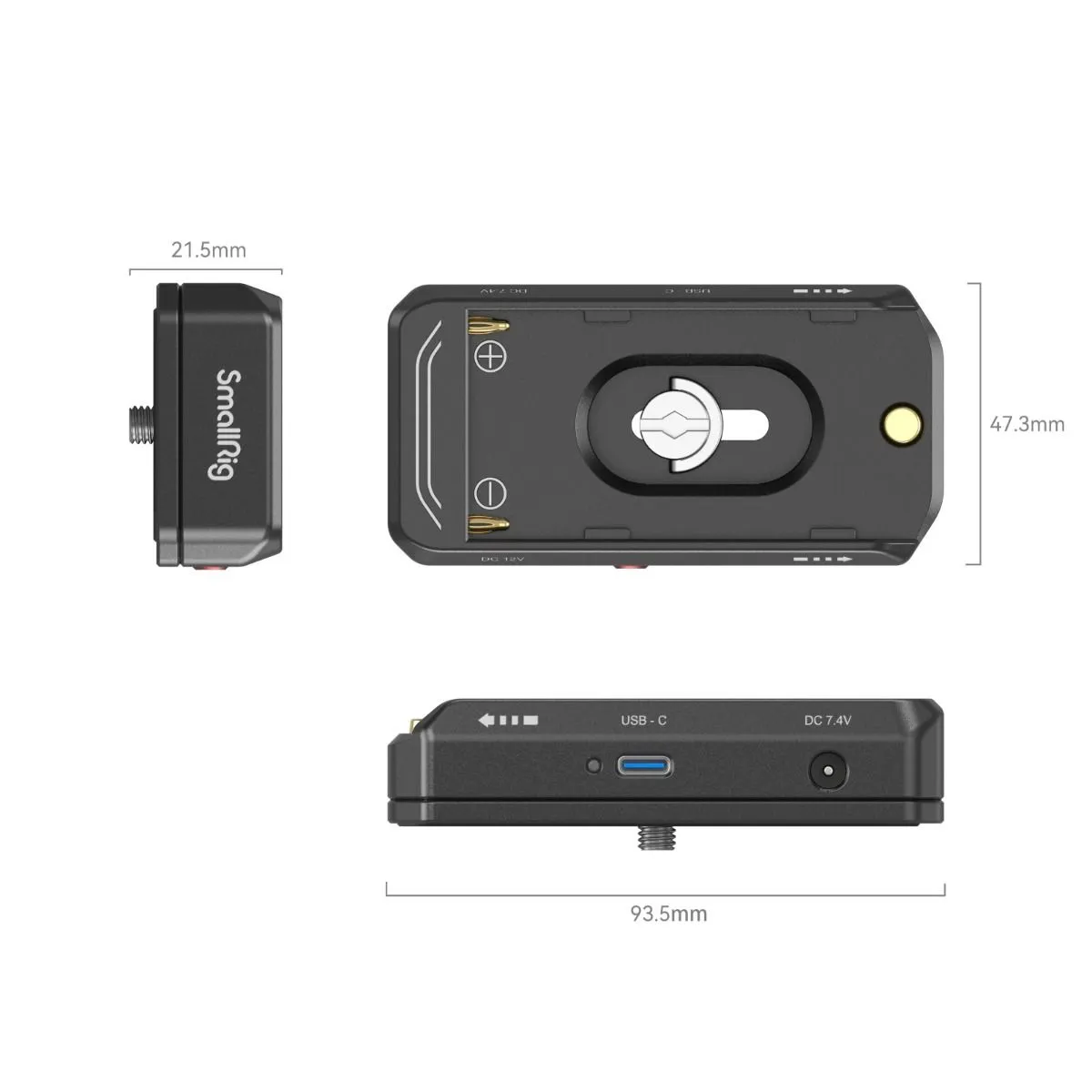

Product Dimensions:
94x 47 x 23mm (3168B)
105x 38.7 x 22.7mm (DC5521 to NP-FZ100 Dummy Battery Power Cable)
Package Dimensions: 101x 66 x 55mm
Product Weight: 156 ± 5g
Package Weight: 185.4 ± 5g
Material(s): CNC ABS
Compatibility
3168B NP-F Battery Adapter Mount Plate: Sony NP-F battery
NP-FZ100 Dummy Battery Power Cable: Sony α6600 / α9 II / α7 III / α7R III / α1 / α7C / α7S III / α7R IV / α7R V / α6700 / FX3 / FX30 / α7CR / α7C II / α7 IV / ZV-E1

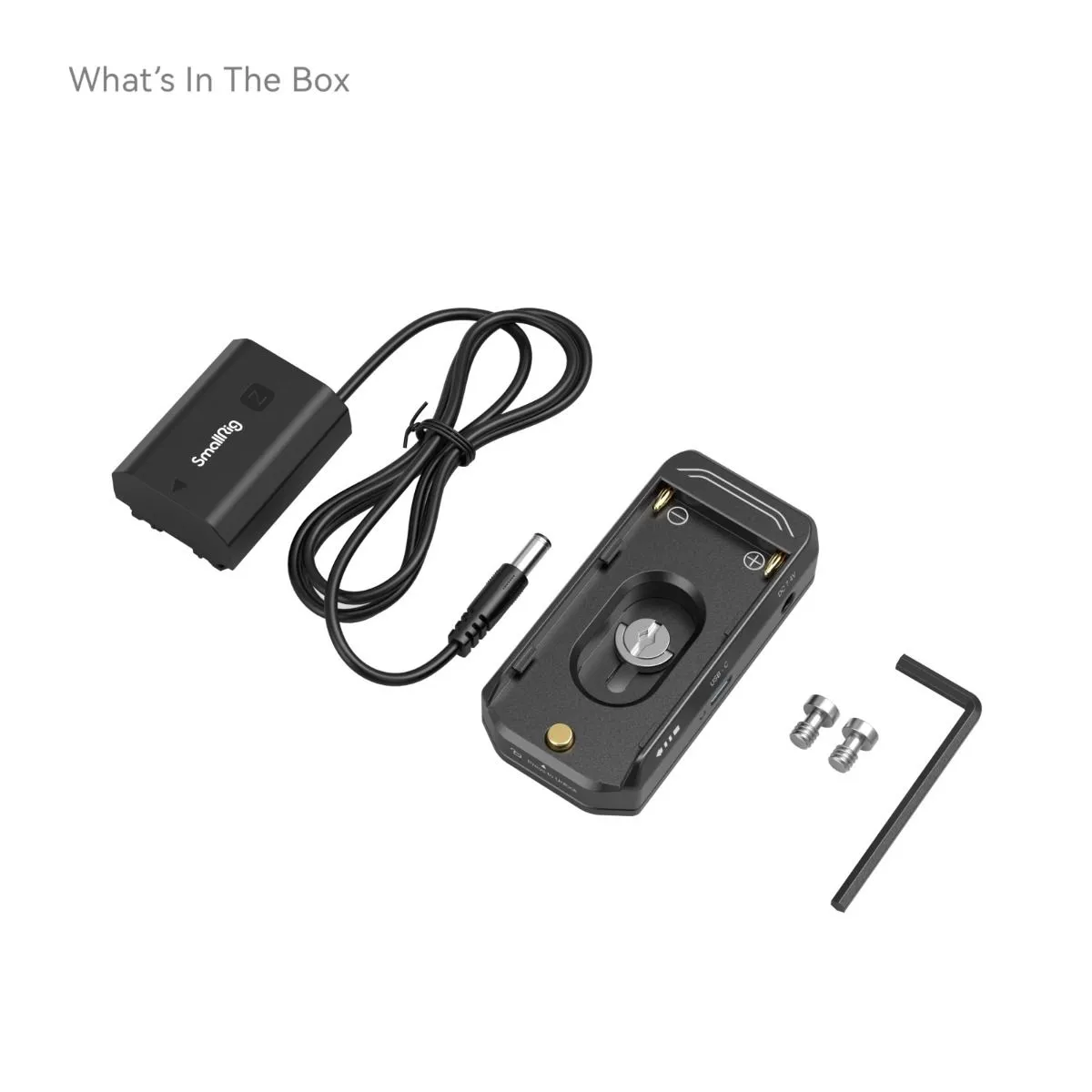

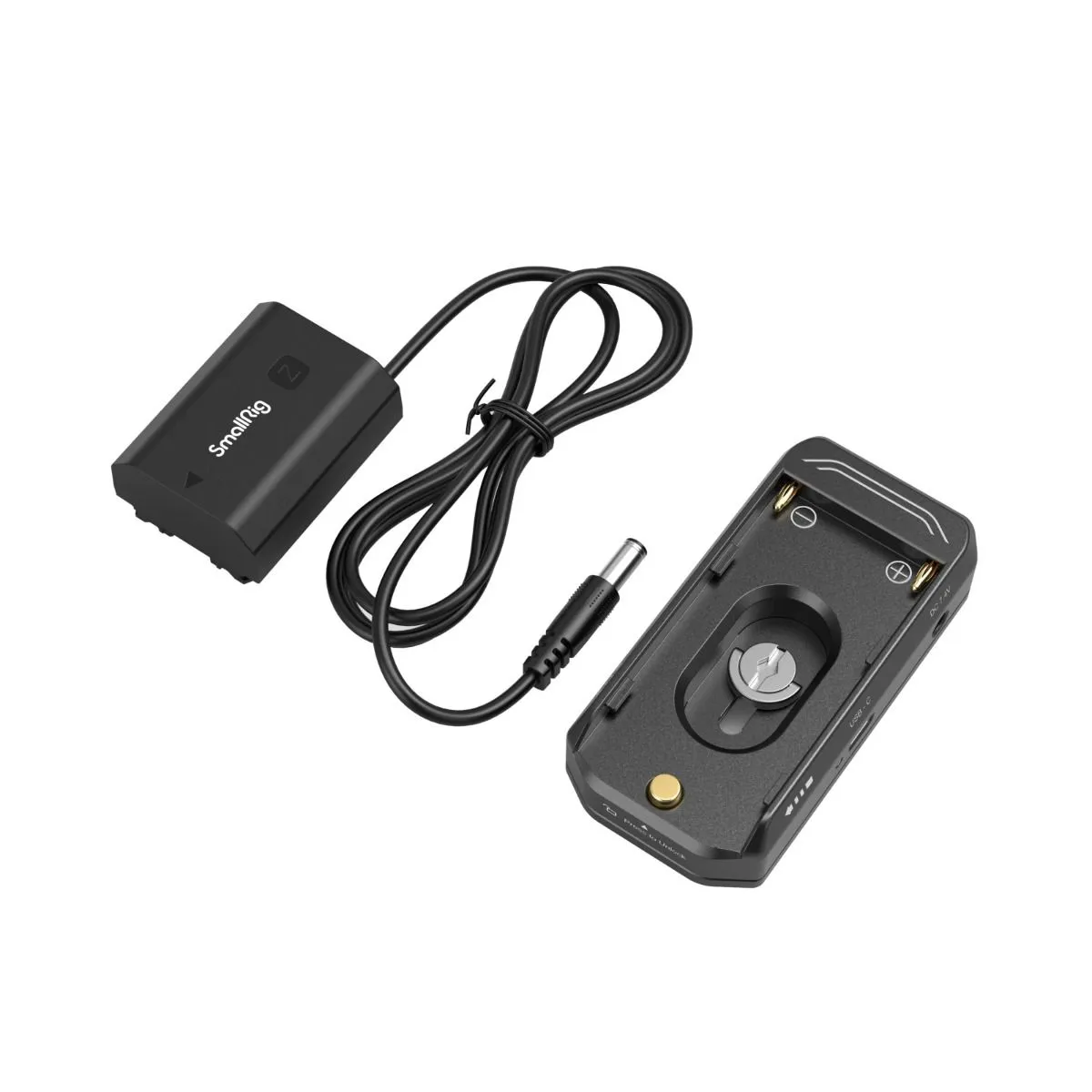

What’s in the box:
- 1 x 3168B NP-F Battery Adapter Mount Plate
- 1 x DC5521 to NP-FZ100 Dummy Battery Power Cable
- 1 x 1/4"-20 Screw
- 1 x Allen Wrench
- 1 x User Manual
