Product Details
Product Attribute Attribute Value
Contact Current Rating 1.5 (AC-15), 2 (DC-13) A
Depth 0.118" (3mm)
Dimensions 45 x 99 x 114 mm
Family Name Preventa XPS Safety Automation Family
Function Safety
Input Type Voltage
Length 3.897" (99mm)
Maximum Operating Temperature 55 °C
Minimum Operating Temperature -10 °C
Mounting Style DIN Rail
Mounting Type DIN Rail
Number of Channels 1 Channel ; 2 Channel
Number of Outputs 13
Relay Type Safety Relay
Series
Special Features Auxiliary Contacts
Standards CSA ; EN 1088/ISO 14119 ; EN/IEC 60204-1 ; EN/IEC 60947-5-1 ; EN/ISO 13850 ; TUV ; UL
Supply Voltage 24 VAC
Temperature Operating Range -10 to 55 C
Terminal Type Screw Clamp
Termination Screw Clamp
Type Safety Relay
UPC Code 785901343707
Voltage Rating 24 VAC/VDC
Voltage, Control 24 VDC
Width 3.543" (90mm)

Overview

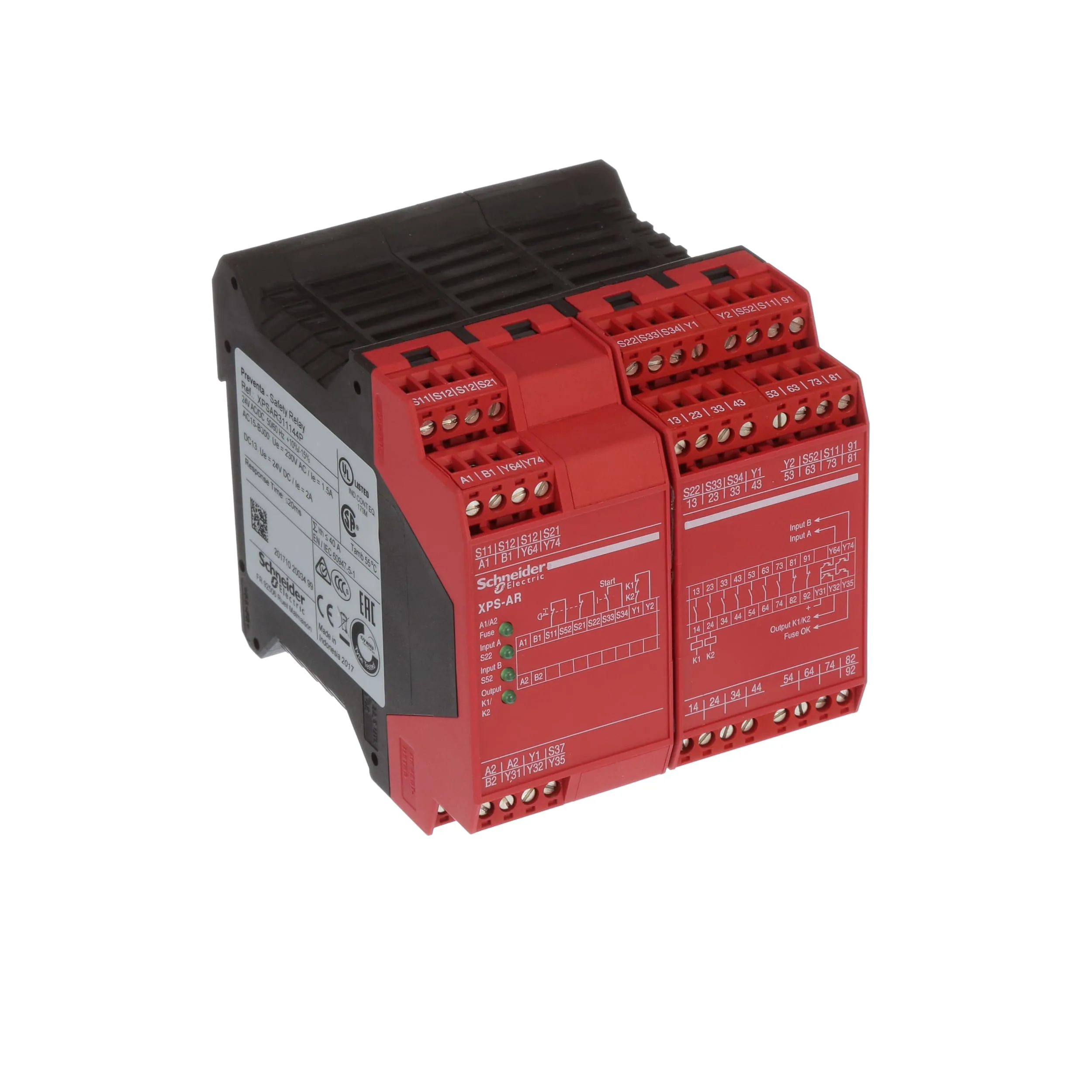

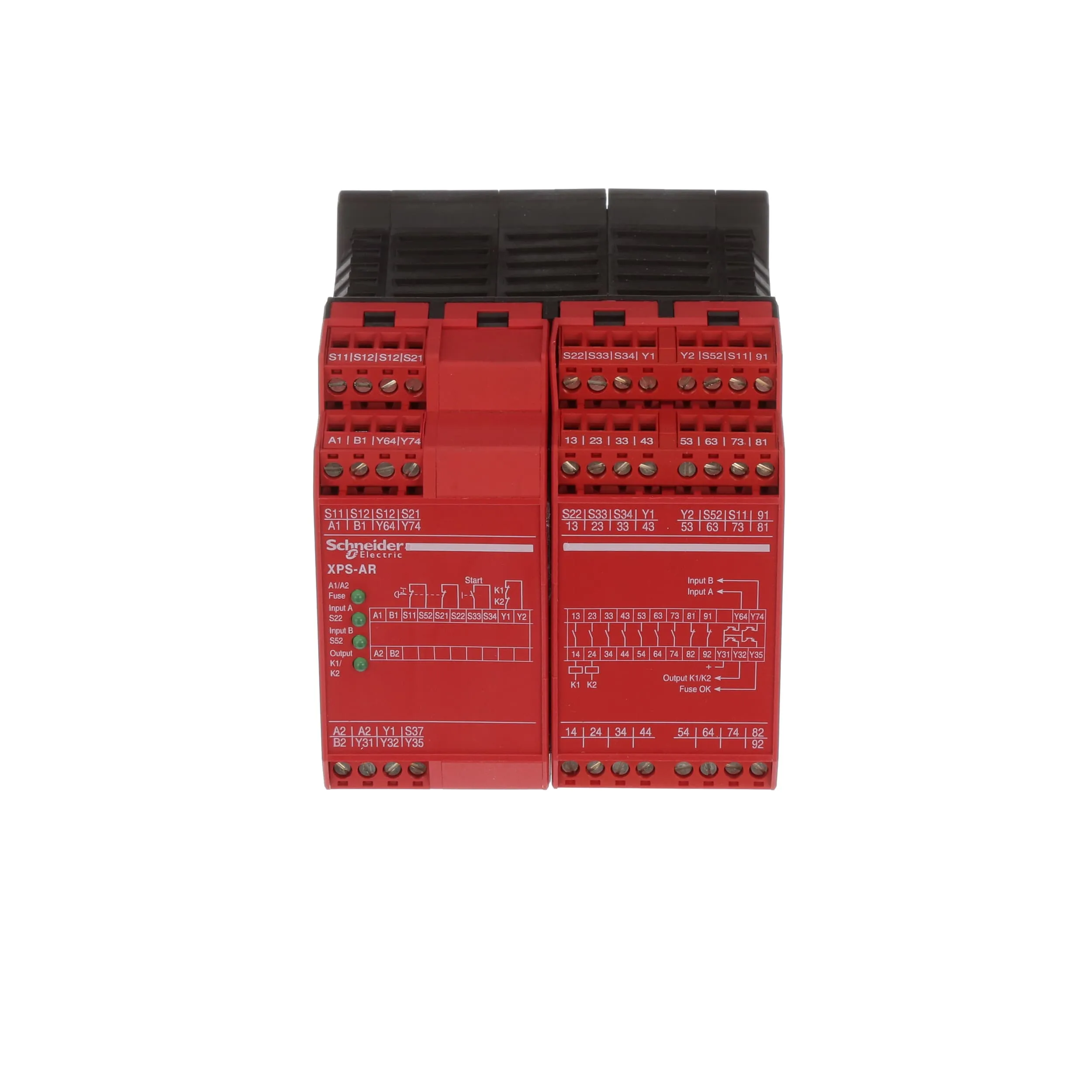

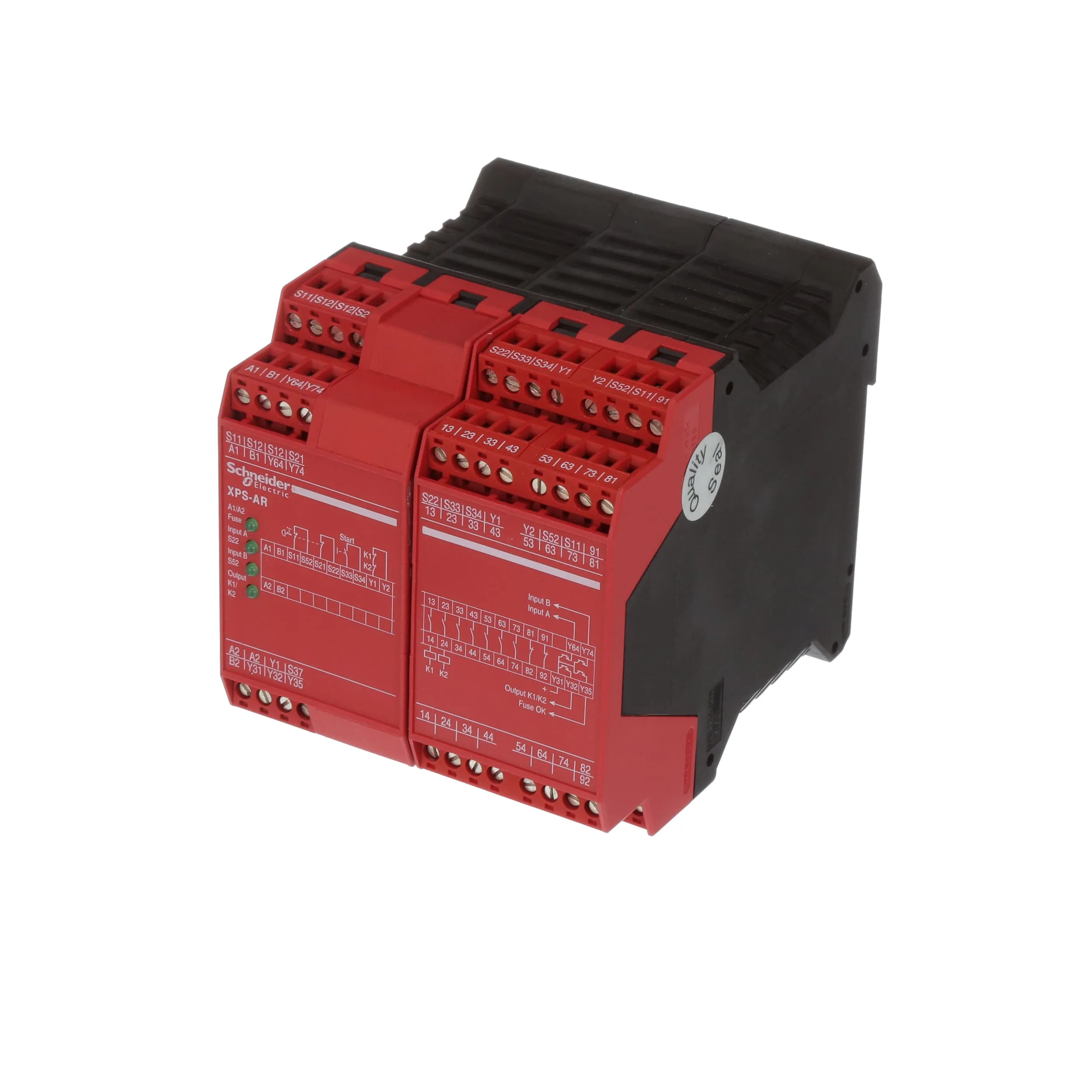

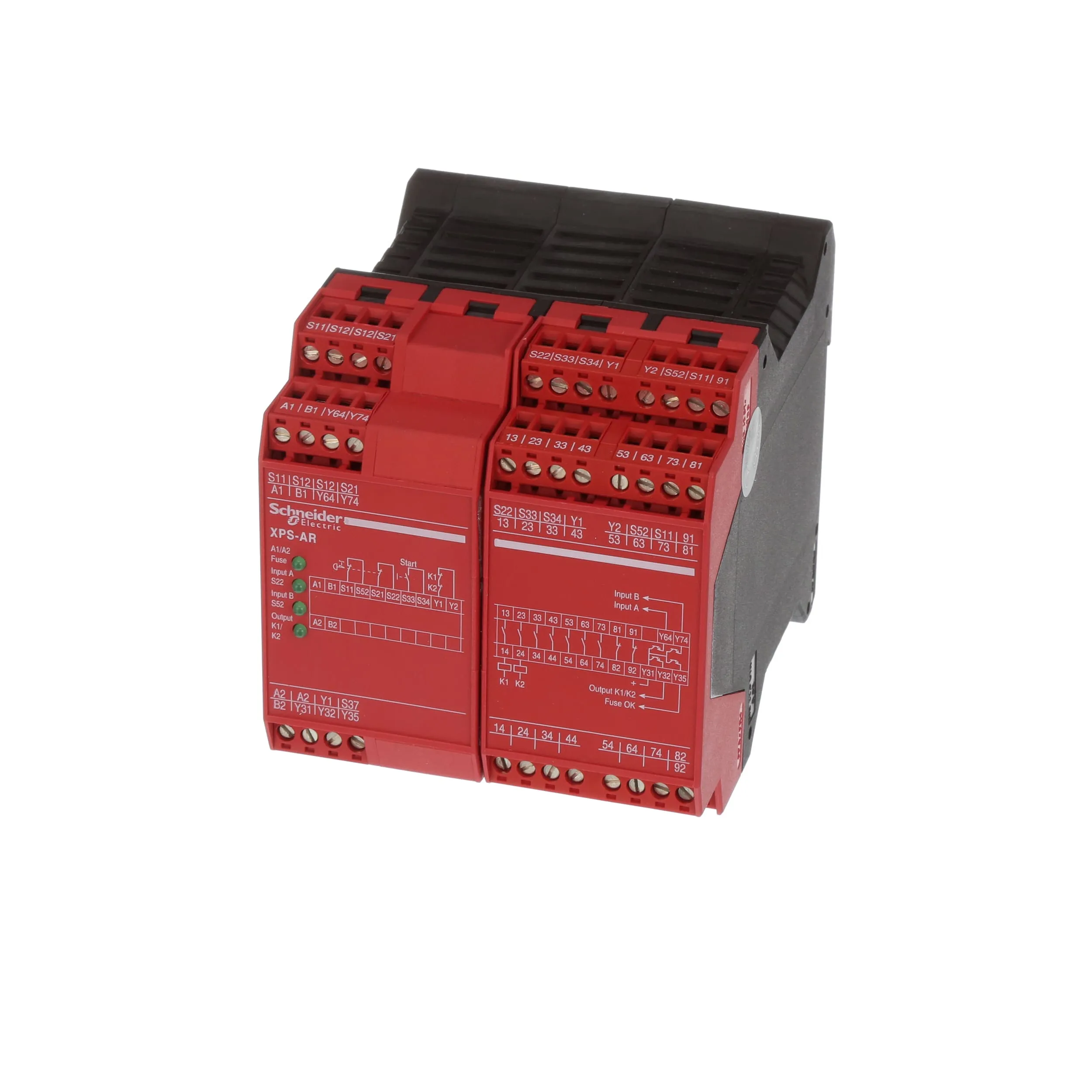

Schneider Electric Preventa XPS-AR Series — Safety Modules For Emergency Stop, Switch or Safety Light Curtain Monitoring:

Safety modules XPSAR meet the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1. The Preventa XPSU range brings a reworked design that helps to simplify installation and maintenance. Moreover, they offer innovative features that improve the user experience for operators. The Preventa XPSU safety module series is supporting the integration of machines in digital service and predictive maintenance concepts. The environmental impacts of this referenced product are representative of the impacts of the other products of the range which are developed with a similar technology. To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.

Features:

  • Monitoring Emergency stop circuits conforming to EN/ISO 13850 and EN/IEC 60204-1.
  • Electrical monitoring of switches activated by protection devices conforming to standard EN/ISO 14119
  • Monitoring type 4 light curtains conforming to EN/IEC 61496-1 that have solid-state safety outputs with test function (light curtains XUS L)
  • In addition to 7 safety outputs, modules XPSAR incorporate 2 relay signalling outputs and 4 solid-state
    signalling outputs for signalling to the process PLC
  • Safety modules XPSARppppppP incorporate removable terminal blocks, thus optimising machine maintenance
  • To aid diagnostics, the modules have 4 LEDs on the front face which provide information on the monitoring circuit status
  • The Start button monitoring function is configurable depending on the wiring
  • PL e/Category 4 conforming to EN/ISO 13849-1
  • SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061
  • Schneider Electric XPSAR311144P
    • DefaultTitle

    $ 81.86

    $ 62.97

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
