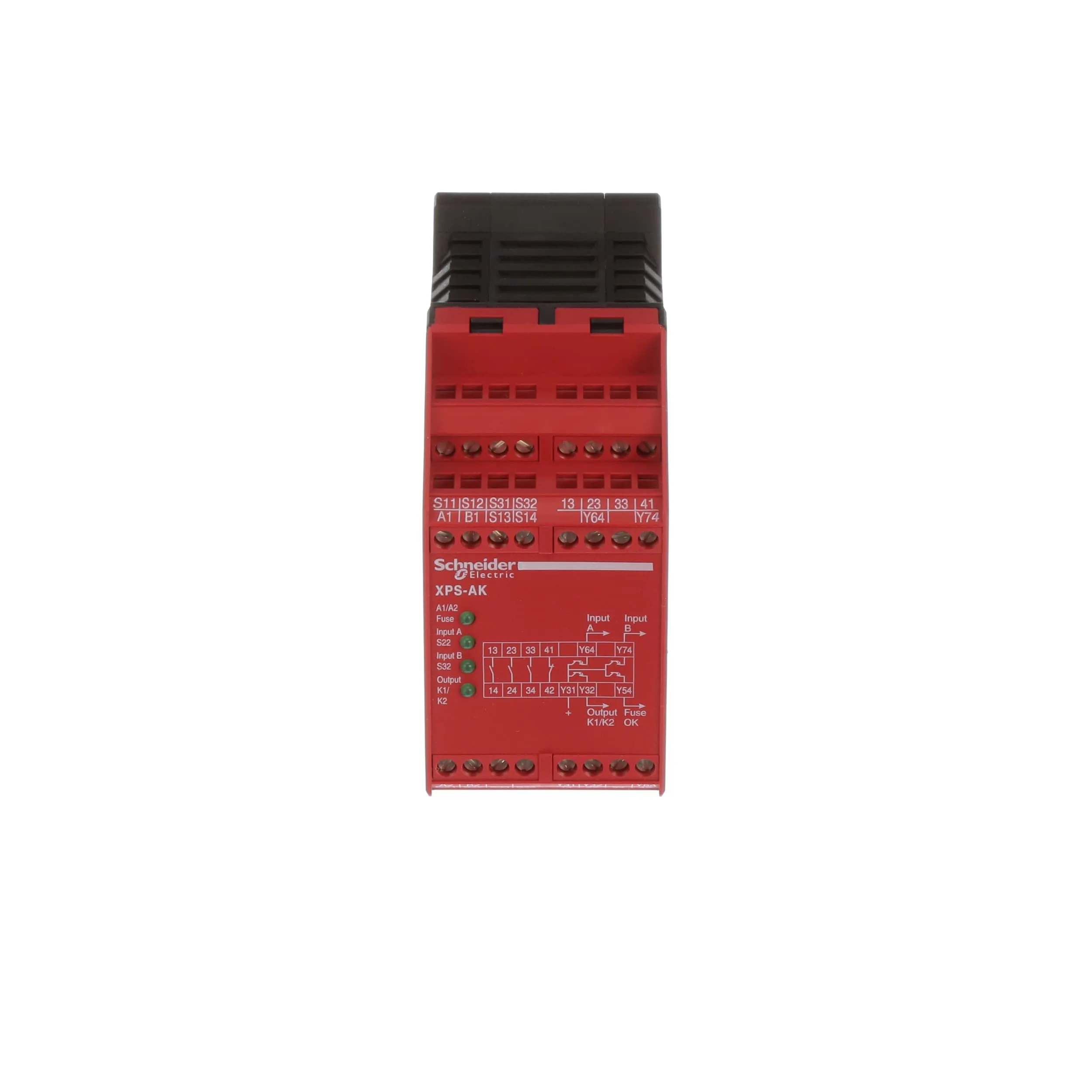

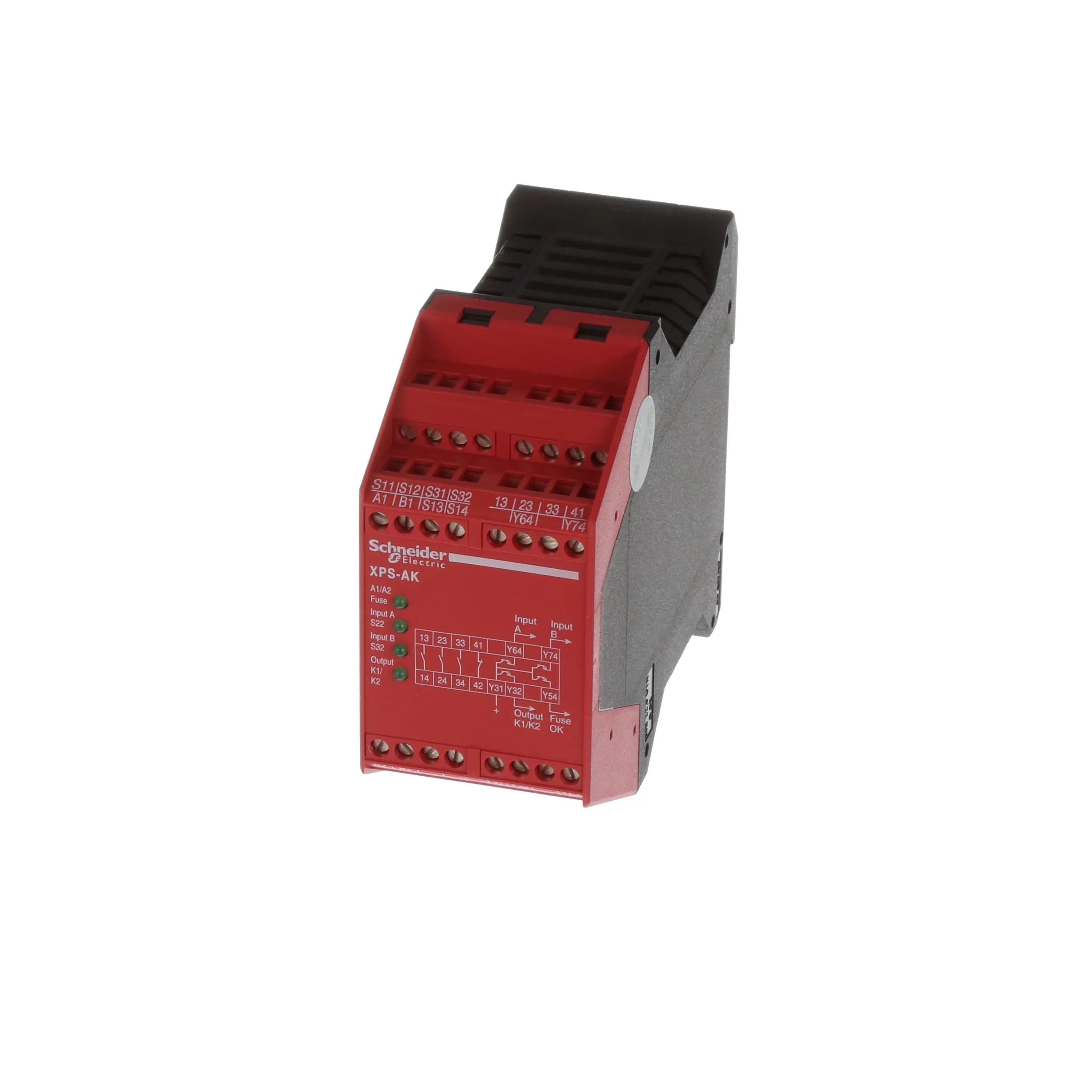

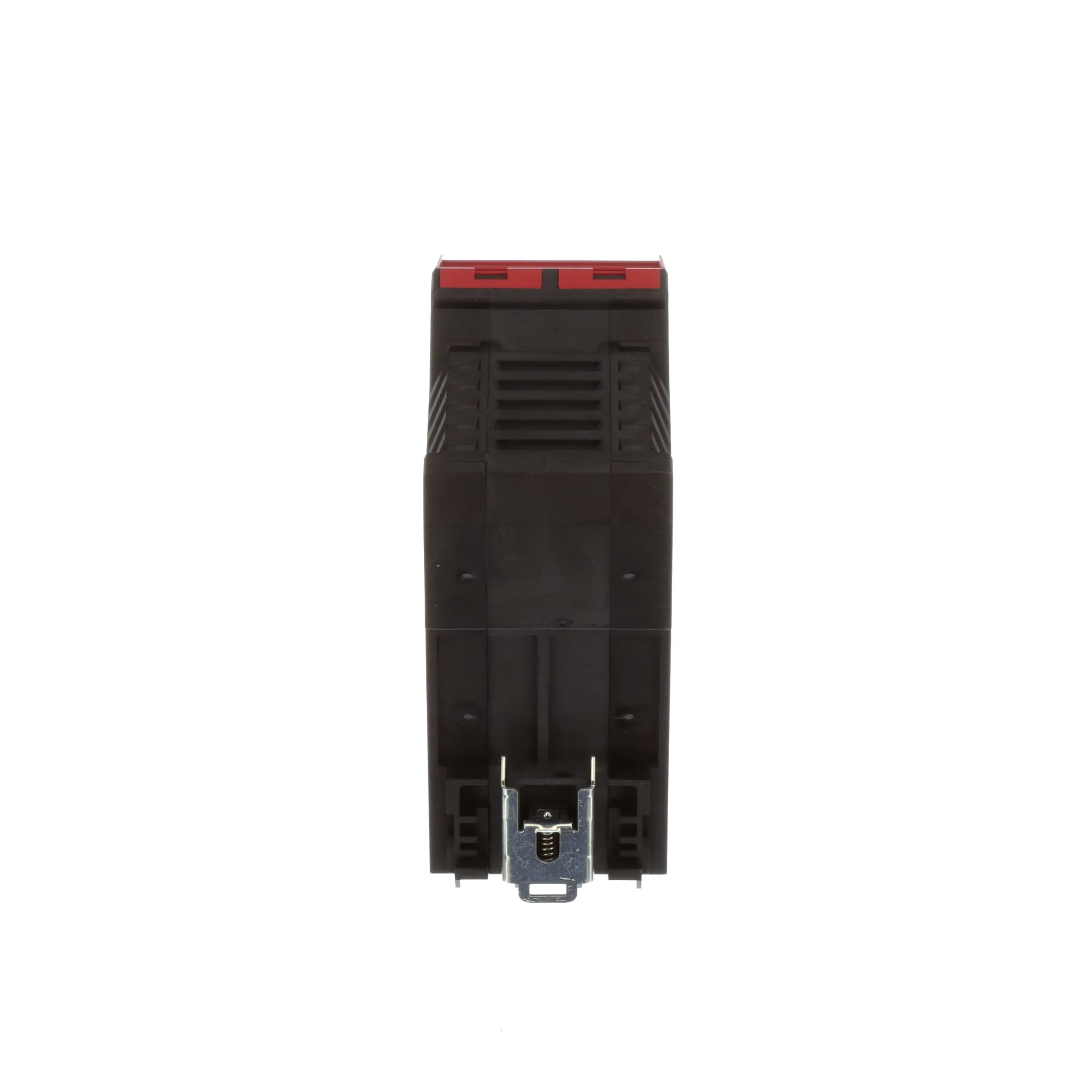

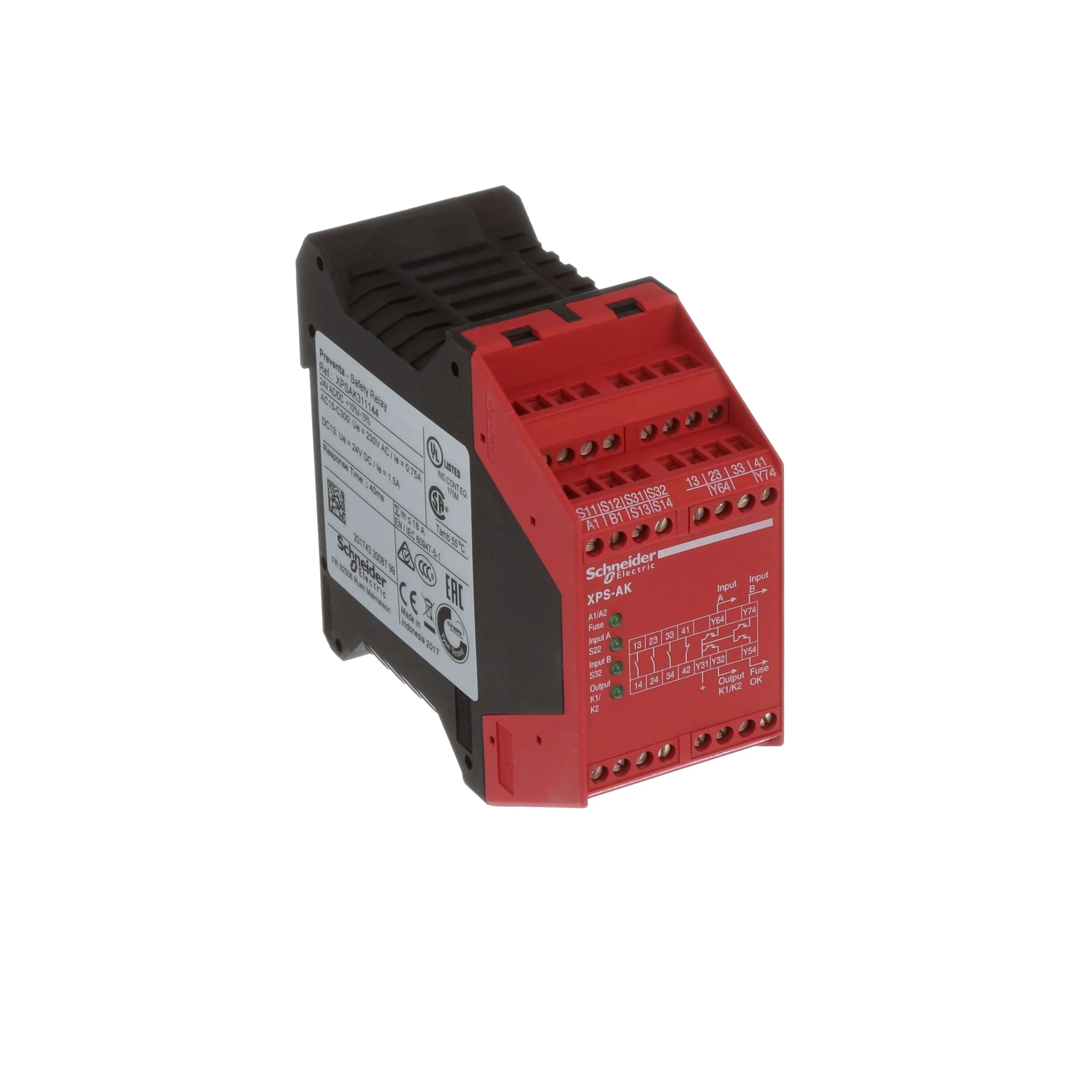

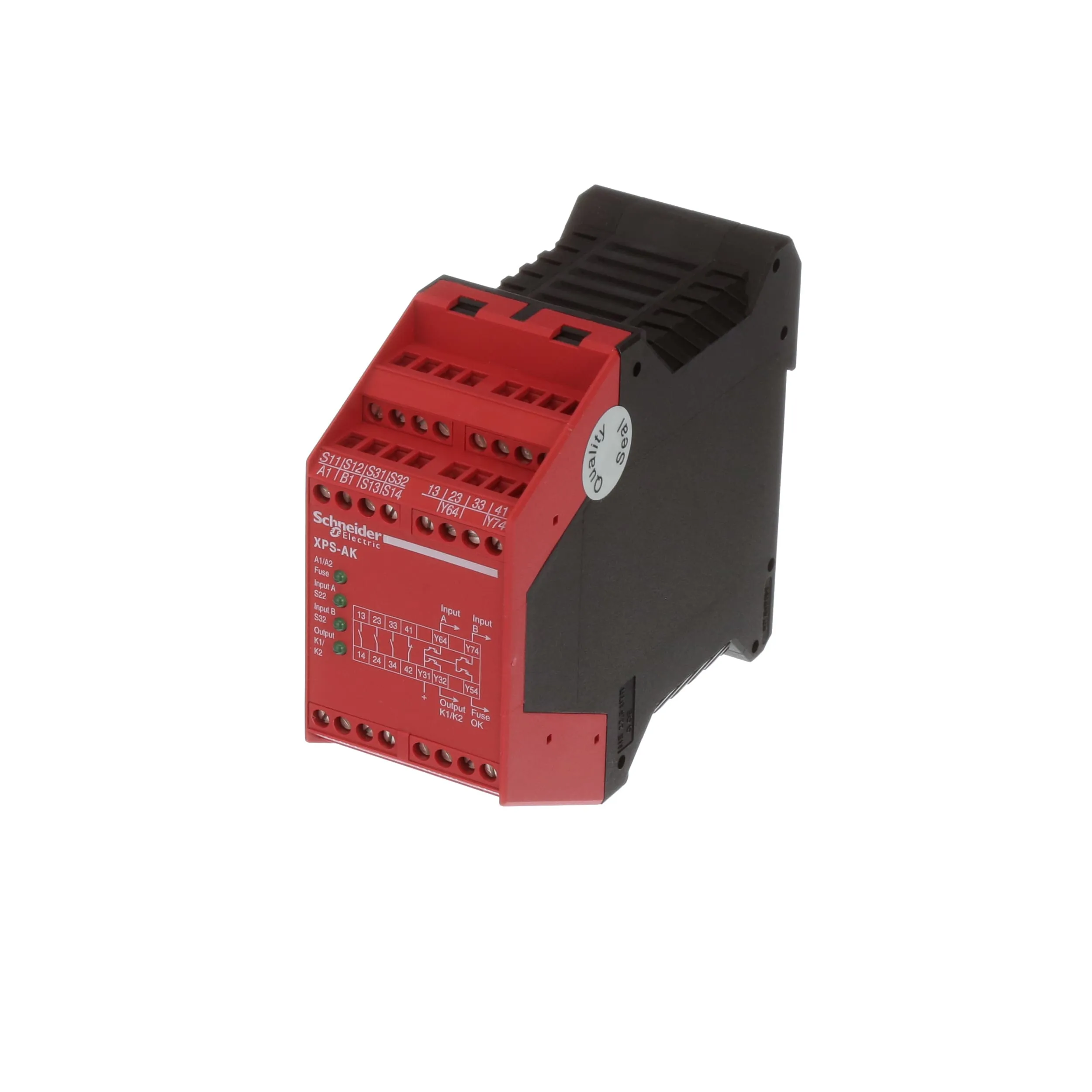

Name: Schneider Electric XPSAK311144
SKU: 529869

Product Details ＋

Product Attribute	Attribute Value
Family Name	Preventa XPS Safety Automation Family
Function	Safety
Mounting Type	DIN Rail
Number of Channels	2 Channel
Series
Special Features	Auxiliary Contacts
Supply Voltage	24 VAC/DC
Terminal Type	Screw Clamp
UPC Code	785901291664

Overview

Schneider Electric Preventa XPS-AK Series — For Emergency Stop and Switch Monitoring, Category 0 | Types: XPS-AFL, XPS-AR, XPS-AK, XPS-AXE, XPS-AC, XPS-AF:

Safety modules XPSAK meet the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1.

XPS-AK Features:

Monitoring Emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1

Electrical monitoring of switches activated by protection devices, with optional selection of synchronisation time between signals

Monitoring 4-wire sensing mats or edges

Monitoring type 4 light curtains conforming to EN/IEC 61496-1 which have solid-state safety outputs with test function (light curtains XUSL)

Housed in a compact enclosure, the modules have 3 safety outputs, a relay signalling output and 4 solid-state signalling outputs for signalling to the process PLC

Preventa safety modules XPSAKppppP incorporate removable terminal blocks, thus optimising machine maintenance

To aid diagnostics, the modules have 4 LEDs on the front face which provide information on the monitoring circuit status

The Start button monitoring function is configurable depending on the wiring

PLe/Category 4 conforming to EN/ISO 13849-1, SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061

CSA

TÜV
