Product Details
Product Attribute Attribute Value
Current Rating 30 A
Input Type Current
Input, Range 4 to 20
Maximum Operating Temperature 60 °C
Minimum Operating Temperature -20 °C
Module Type Isolated
Mounting Type DIN Rail
Number of Channels 1
Output Type Analogue
Series
Special Features Lead Breakage Monitoring
Standards 16-533FM-12 (cFMus), 6GYJ 12.1421, ANZEx 08.2009X, CE, Certificate No 1056, GESI ATEX, IECEx CES 06.0001, TCCExEE, cULus
Supply Voltage 19 to 30 VDC
Temperature Operating Range -20 to 60 °C
Type Barrier

Overview

Isolated Intrinsic Safety Barriers
Solving a wide range of applications in one system, our K-System barriers guarantee a reliable and economical signal transmission between your field device and the control system. Whether your plans include a single isolating module or a large scale system integration we have comprehensive offering of galvanically isolated interface modules suitable for Division 1/2 hazardous ‘classified’ locations. They are suitable for a wide range of analog and discrete circuits and signal conditioning applications including switches, proximity sensors, transmitters, I/P converters, TC/RTDs, potentiometers, solenoids, over/under speed and frequency conversion. Isolated barriers are used for intrinsic safety application.

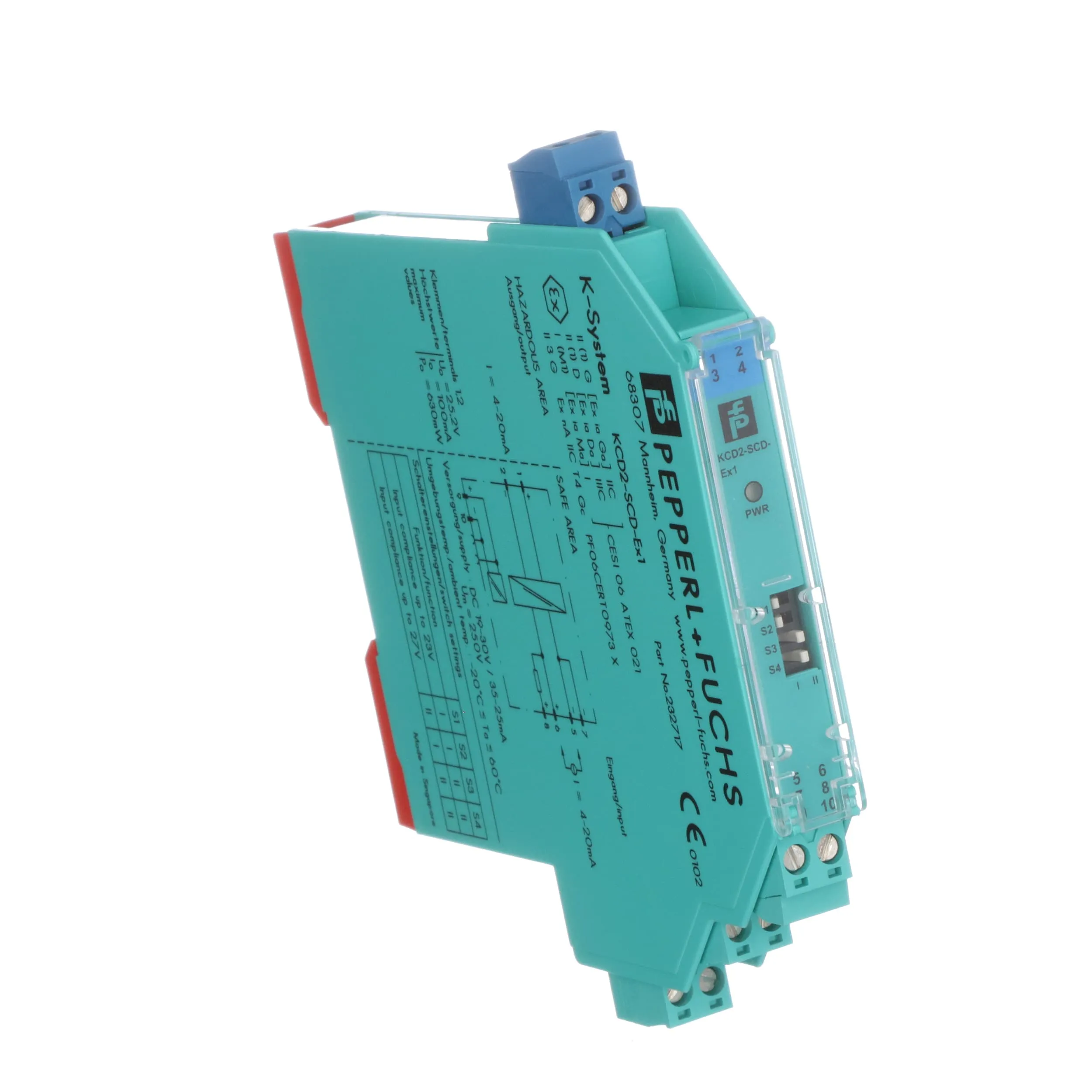

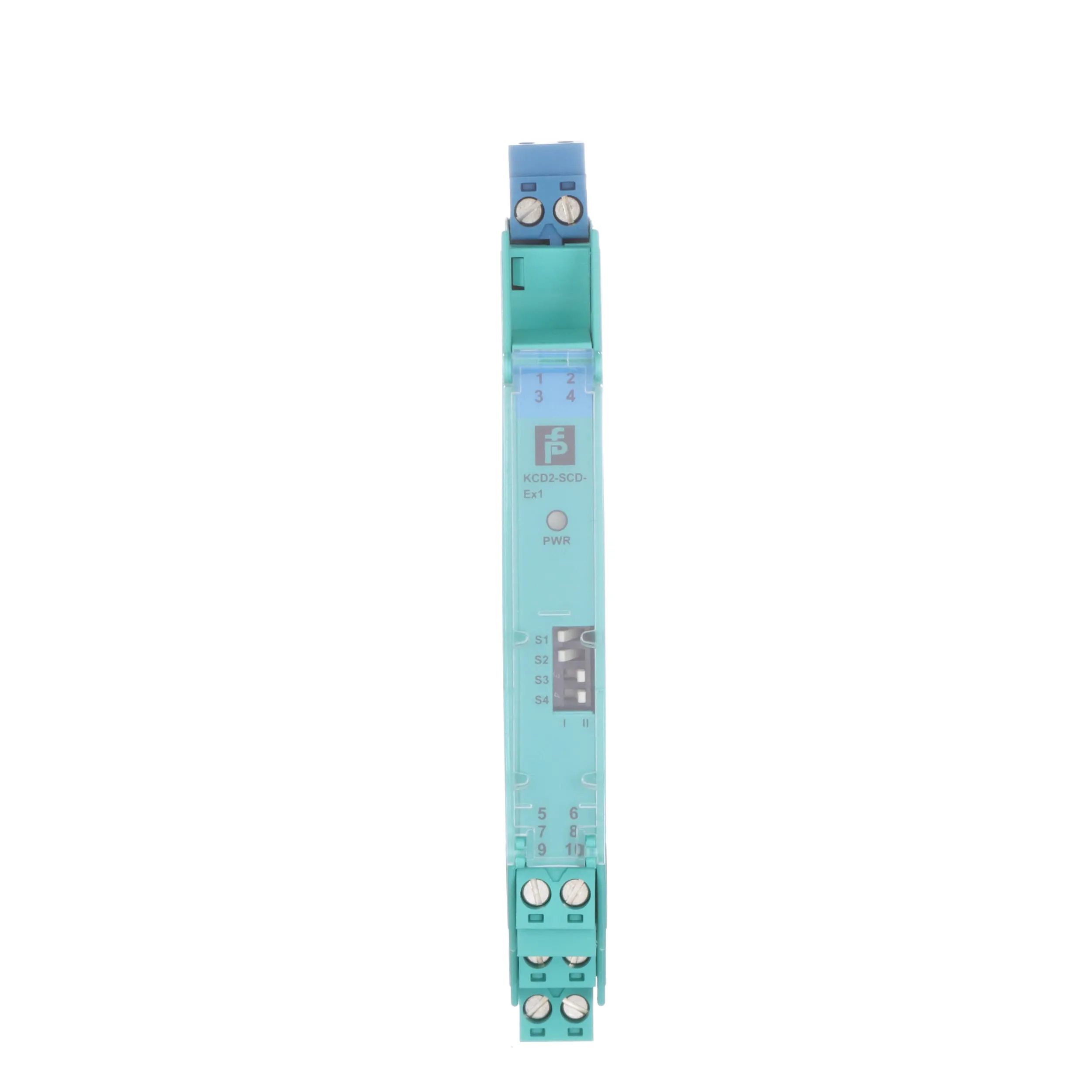

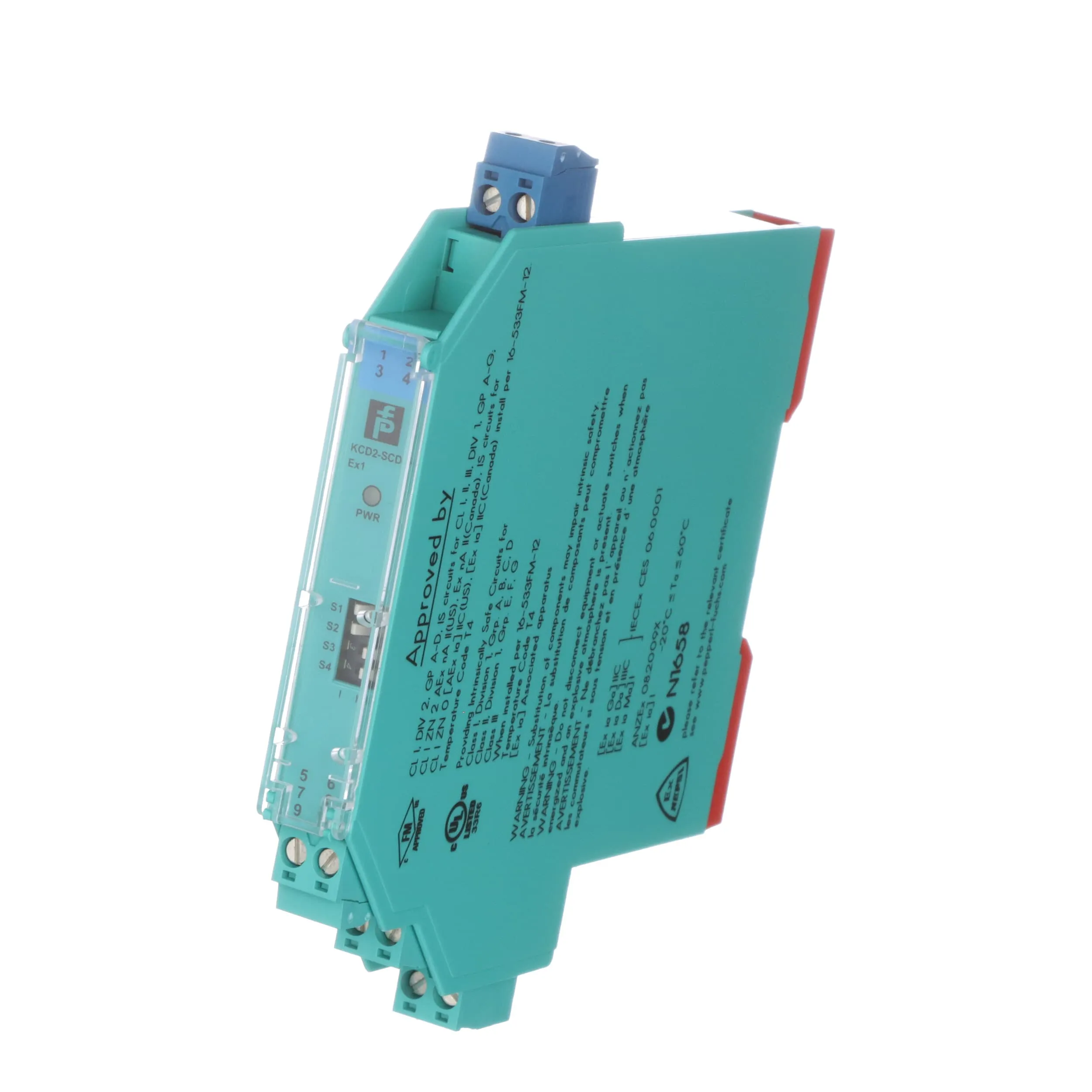

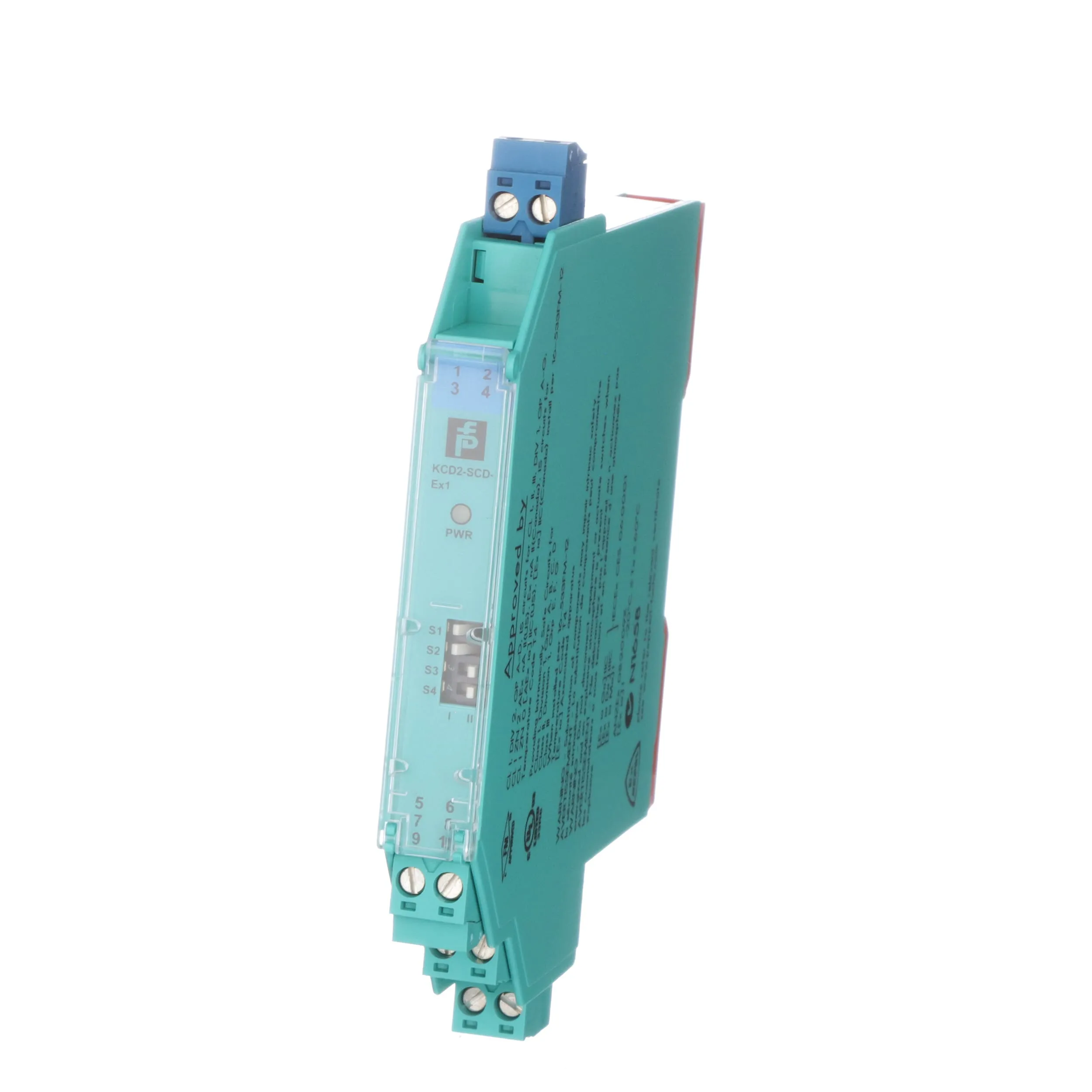

Pepperl Fuchs Process Automation KCD2-SCD-EX1
  • DefaultTitle

$ 62.06

$ 47.74
