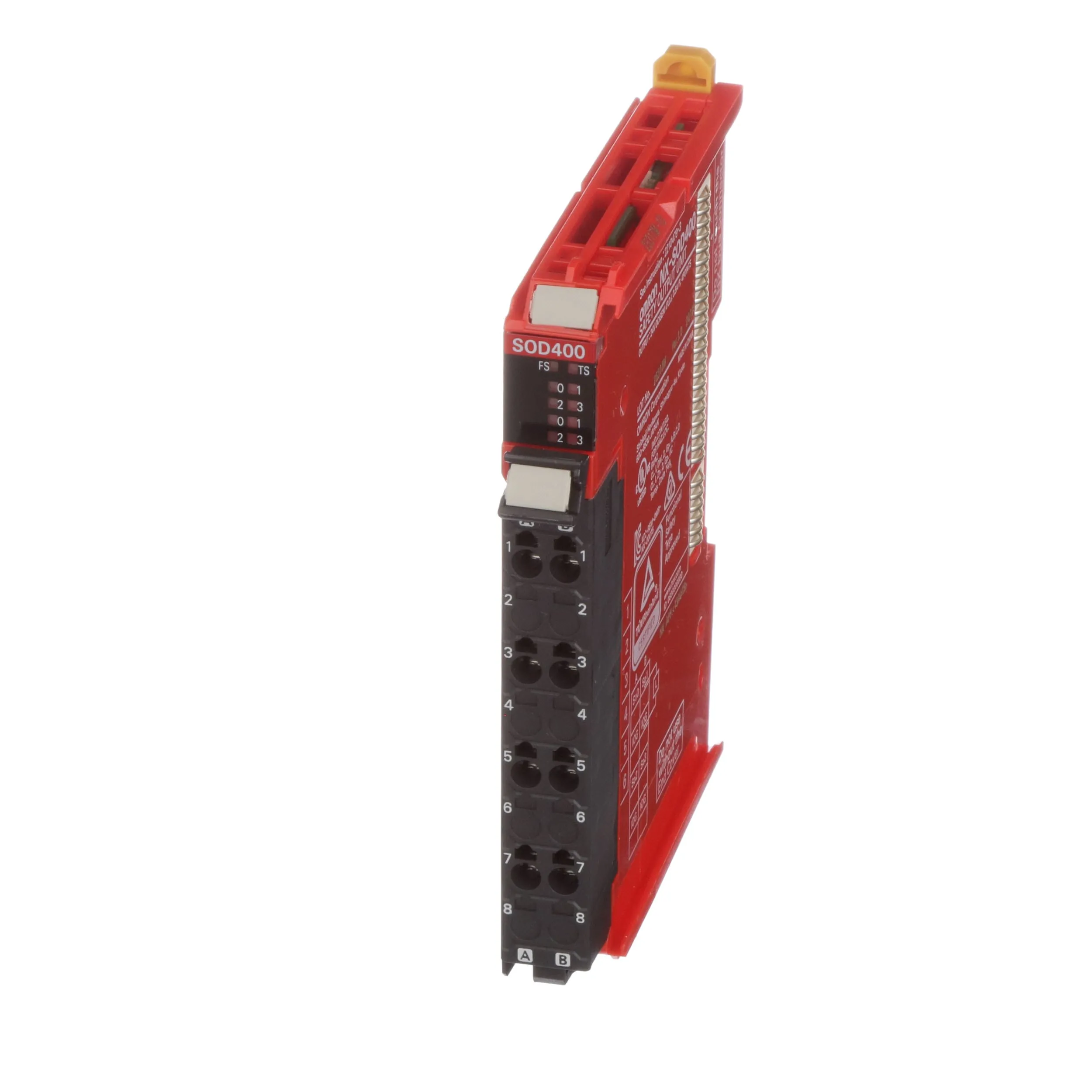

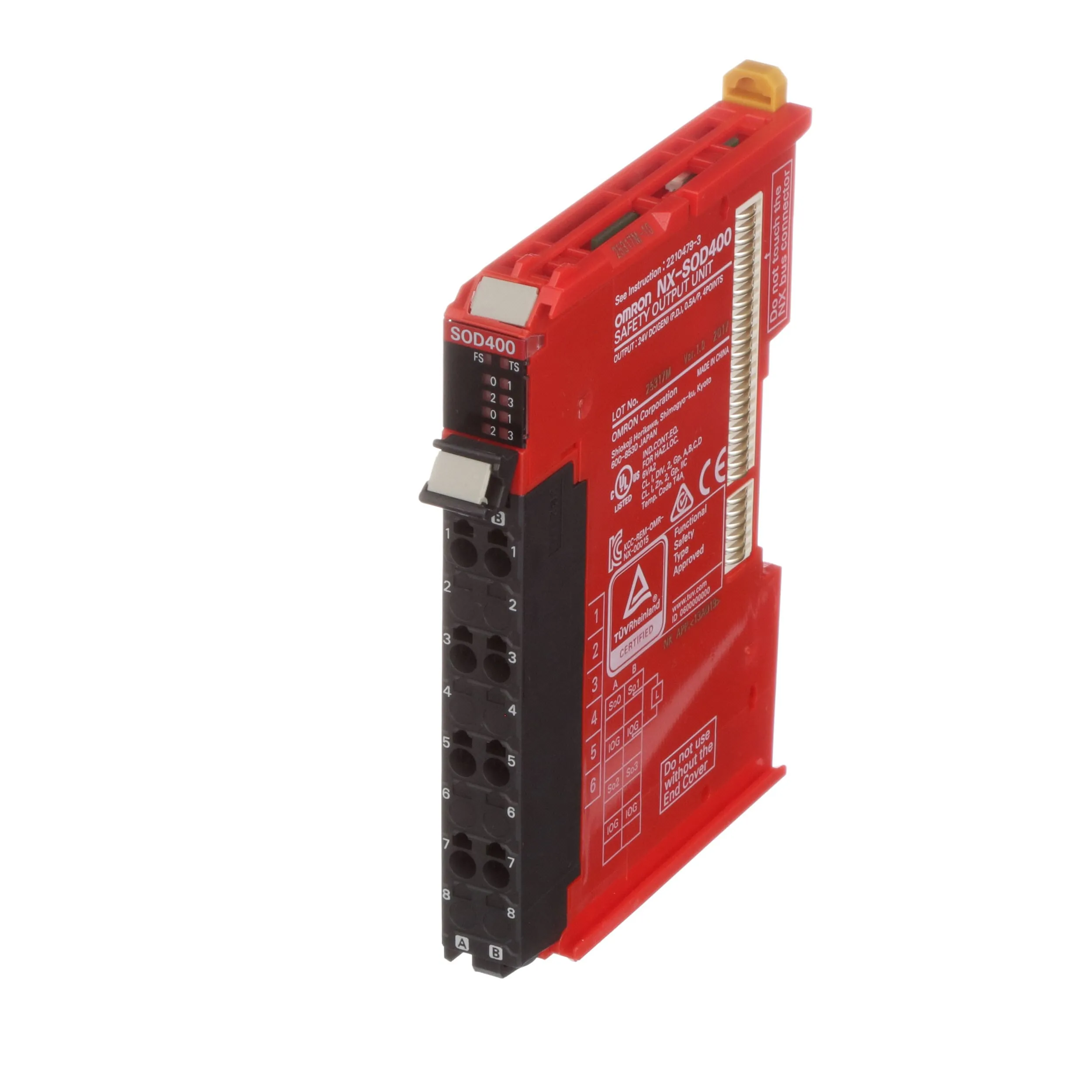

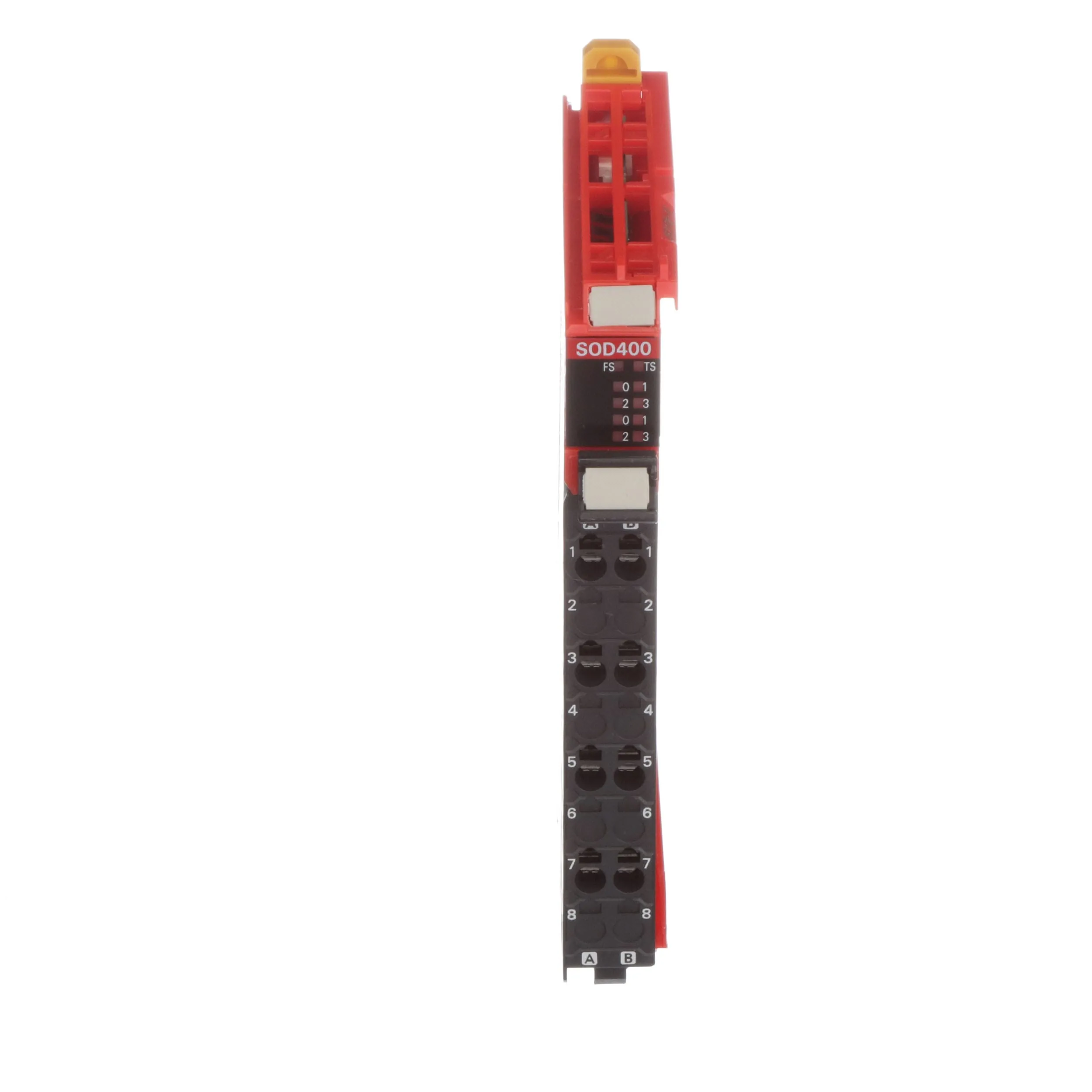

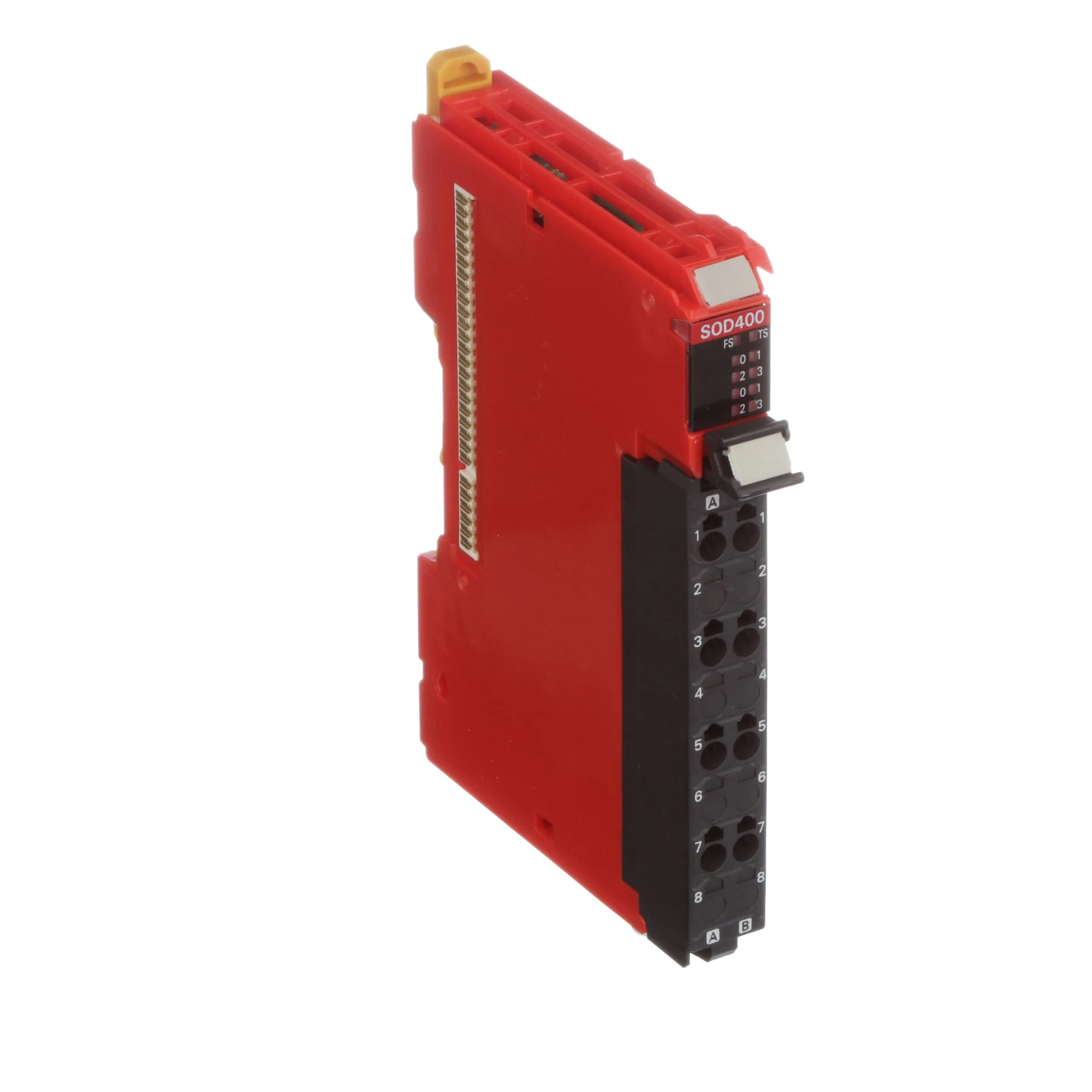

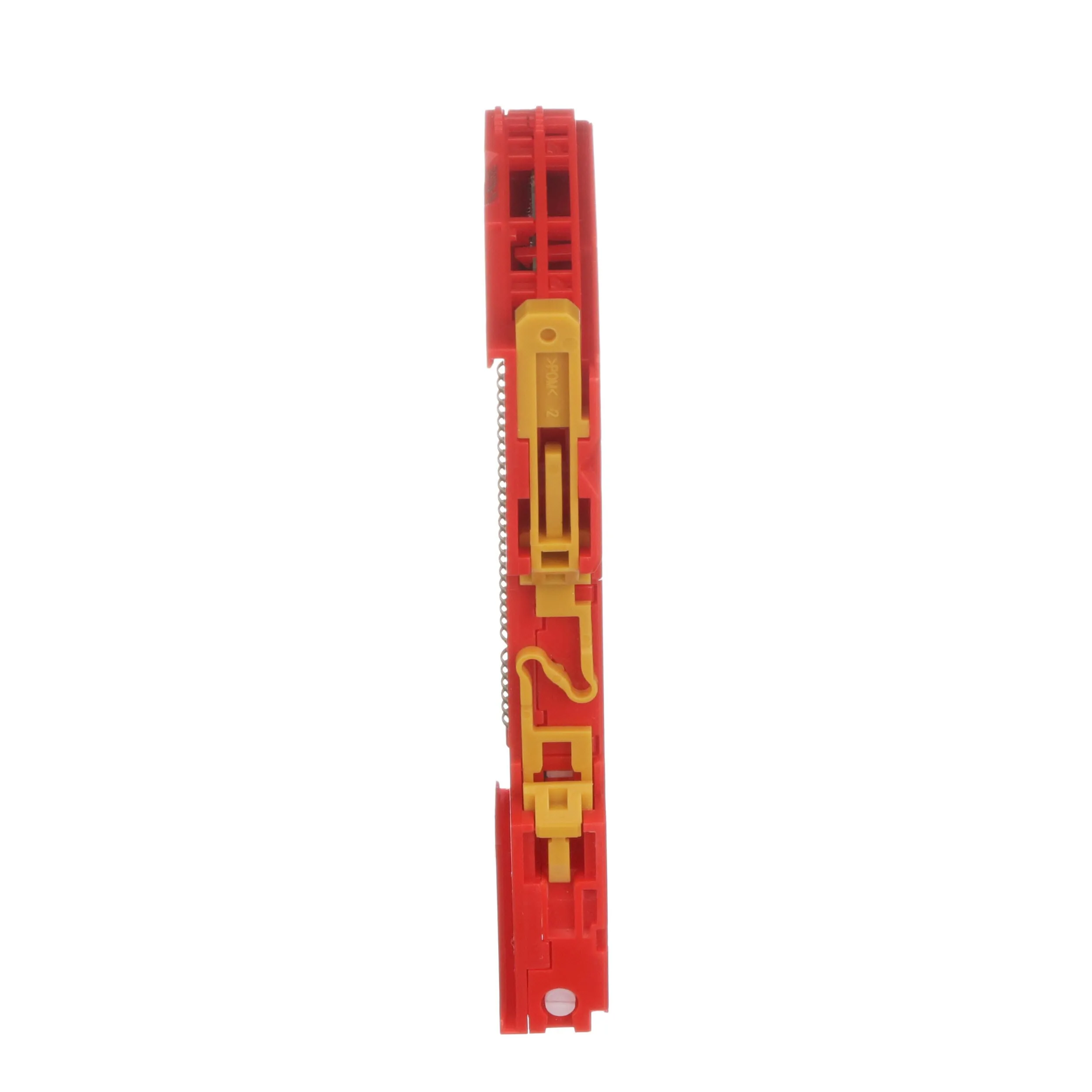

Name: Omron Safety (Sti) NX-SOD400
SKU: 515622

Product Details ＋

Product Attribute	Attribute Value
Application	Automation
Family Name	NX/IO Family
For Use With	NX/IO Series
Input Voltage	24 VDC
Interface	RS-422A/485
Maximum Current	0.5 / 2.0
Mounting Type	Panel Mount
Safety Outputs	4
Series
Standards	cULus: Listed (UL508), ANSI/ISA 12.12.01, EU: EN 61131-2, NK, LR, RCM, and KC: KC Registration

Overview

OMRON NX-SI Series – Stand-Alone Safety Controller I/O Unit:

The NX Stand-alone Safety Controller is a powerful and robust Safety System that reaches the PLe according to EN 13849-1 and SIL3 according to IEC 61508. The EtherNet/IP coupler unit allows for connection to almost any PLC via EtherNet/IP™ or standard Ethernet communications. The flexible hardware allows the NX safety I/O units to be mixed in any combination with standard NX I/O units. Sysmac Studio software allows for configuration, programming, simulation and monitoring functionality.

The system allows up to 63 safety/standard I/O units per coupler; up to 32 safety I/O units to a maximum of 256 safety I/O signals. Configure systems with the right combination of I/O to optimize cost. The detachable terminal block of the I/O unit simplifies the commissioning and maintenance tasks. Screwless push-in connections speed up installation.

Features:

EN ISO13849-1 (PLe/Safety Category4), IEC 61508 (SIL3) certified

One connection using Safety over EtherCAT (FSoE) * protocol enables flexible configuration by mixing the Safety Units with standard NX I/O

4 or 8 points per Safety Input Unit, 2 or 4 points per Safety Output Unit. Characterized by large output breaking current of 2.0 A

Integrated safety into machine automation possible by connecting with the NX-series EtherCAT Coupler

The Safety CPU Unit controls up to 128 Safety I/O Units

4 or 8 points per Safety Input Unit. The 4-point Safety Input Unit can be directly connected with OMRON Non-contact Switches and Singlebeam Sensors

2 or 4 points per Safety Output Unit. The 2-point Safety Output Unit is characterized by large output breaking current of 2.0 A.

The Safety Units can be freely allocated in any combination with standard NX I/O.

Compliant with IEC61131-3

Safety programs can be standardized and reused efficiently by using POUs for design and operation

Requirements for SIL 3 (Safety Integrity Level 3) in IEC 61508, EN 62061, Safety Standard for Safety Instrumented Systems (Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems)
