Product Details
Micro filters remove harmful oil/water condensate, pipe scale, dirt and rust from compressed air systems. Mini micro filters are ideal for use in compact low air flow applications such as small pneumatic equipment, miniature valving and instruments. WARNING: For compressed air service only. Not to be used on life support systems or breathing air systems. Never use polycarbonate plastic bowls on air supplied by a compressor lubricated with synthetic oils or oil containing phosphate esters or chlorinate hydrocarbons. They can carry over into the air distribution systems and chemically attack and possibly rupture the bowls. For these applications use a metal bowl. Materials such as trichloroethylene, acetone, paint thinner or cleaning fluids will craze and/ or rupture a polycarbonate bowl. When these materials are present either inside or outside the bowl, use metal bowls. For more complete list of known harmful chemicals check instruction sheet.

Features:

  • 20 micron filter
  • All micro filters supplied with preassembled AUTOMATIC OVERNIGHT DRAIN
  • Light weight aluminum die-cast housing
  • 3 stage baffle system for exceptional moisture removal
  • Corrosion resistant metal bowl
  • Install micro filters upstream from regulators to protect against valve and diaphragm failure

Product Information

  • Maximum pressure: Poly bowl 150 PSI
  • Operating temperature range: Poly bowl 40 Deg. F to 120 Deg. F
  • Size: 1/4 in
  • Bowl Capacity: 1 oz.
  • SCFM at 50 PSI: 22
  • SCFM at 75 PSI: 24
  • SCFM at 100 PSI: 27
  • Maximum SCFM: 27 1

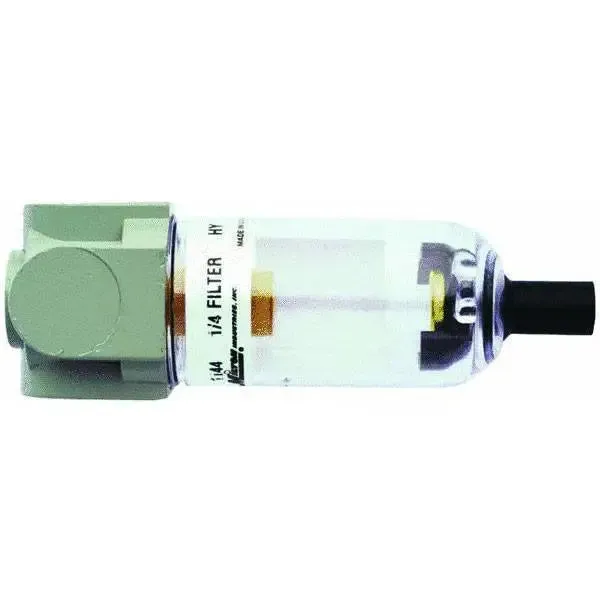

Milton 1/4 in NPT Micro Filter w/ 1oz. Polycarbonate bowl
  • Default

$ 0.00

$ 40.16
