BME280 is an environmental sensor that integrates onboard temperature sensor, humidity sensor and barometer. The sensor is of high precision, multiple functions, and small size etc. It provides both SPI and I2C interfaces, which make it easy to make a fast prototypes. It can be widely used in environmental monitoring, story height measurement and Internet of Things (IoT) control and so on.

Gravity I2C BME280 Environmental Sensor has based on BoSCH newest MEMS sensor (Micro-Electro-Mechanical System). It is very stable to compare with other kind of sensors, especially the air pressure measurement, the offset temperature coefficient is ±1.5 Pa/K, equiv. to ±12.6 cm at 1 °C temperature change. Therefore, the stable and multi-function make BME280 become a good choice in many scenes.

Features:

Compatible with 3.3V/5V microcontrollers

Environmental monitoring: temperature, humidity and barometer

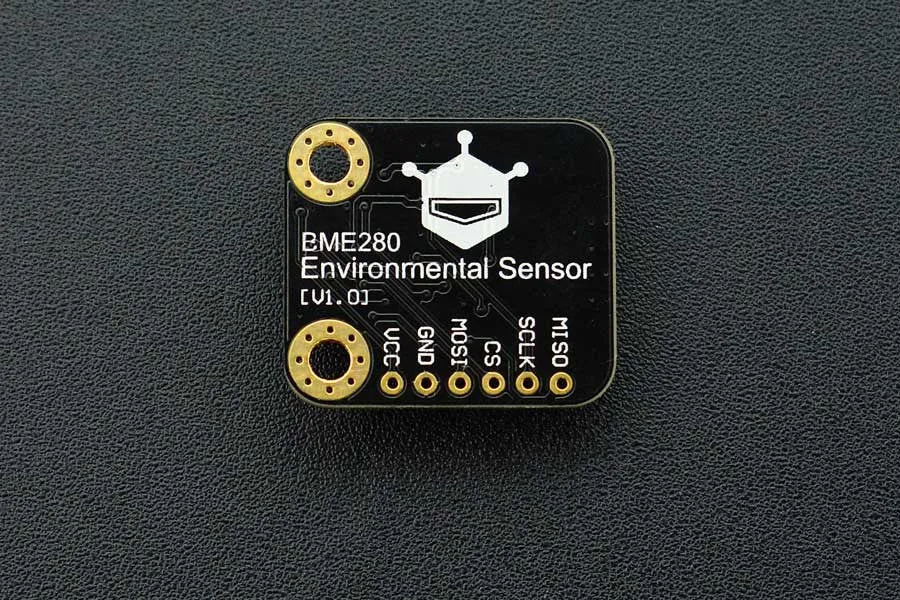

Gravity I2C interface and reserve XH2.54 SPI interface

Small size, convenient to install

Applications:

Context awareness, e.g. skin detection, room change detection

Home automation control (control heating, venting, air conditioning (HVAC))

Internet of things

GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)

Indoor navigation (change of floor detection, elevator detection)

Outdoor navigation, leisure and sports applications

Weather forecast

Vertical velocity indication (rise/sink speed)

Specification:

Working Voltage：3.3V~5.0V

Working Current：2mA

Working Temperature：-40℃~ 85℃

Temperature Measuring Range: -40℃~ 85℃, resolution of 0.1℃, deviation of ±0.5℃

Humidity Measuring Range: 0~100%RH, resolution of 0.1%RH, deviation of ±2%RH

Pressure Measuring Range: 300~1100hPa

Humidity Sampling Time: 1s

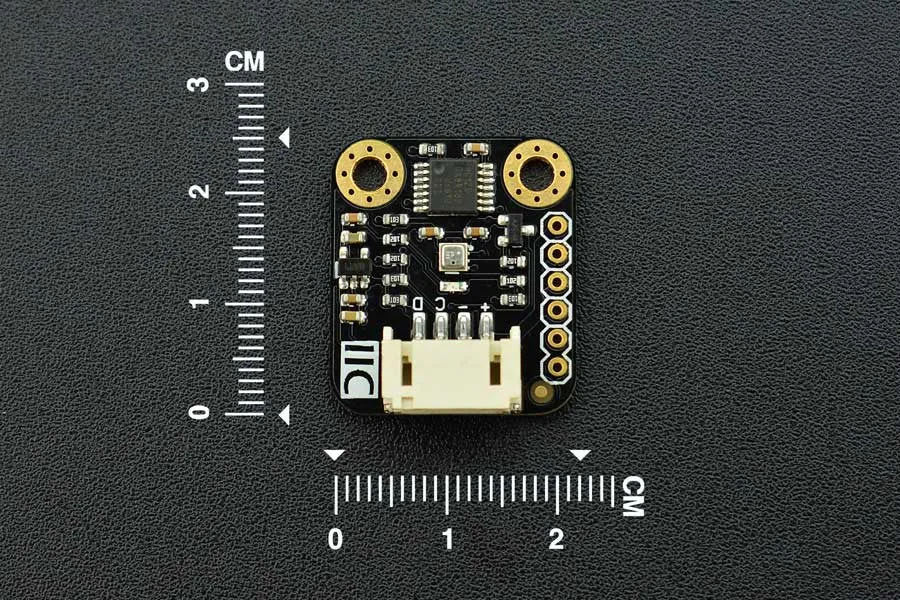

Dimension: 22 * 25 mm/ 0.87 * 0.98 inches

Weight: 12g

Documents:



Product Includes:

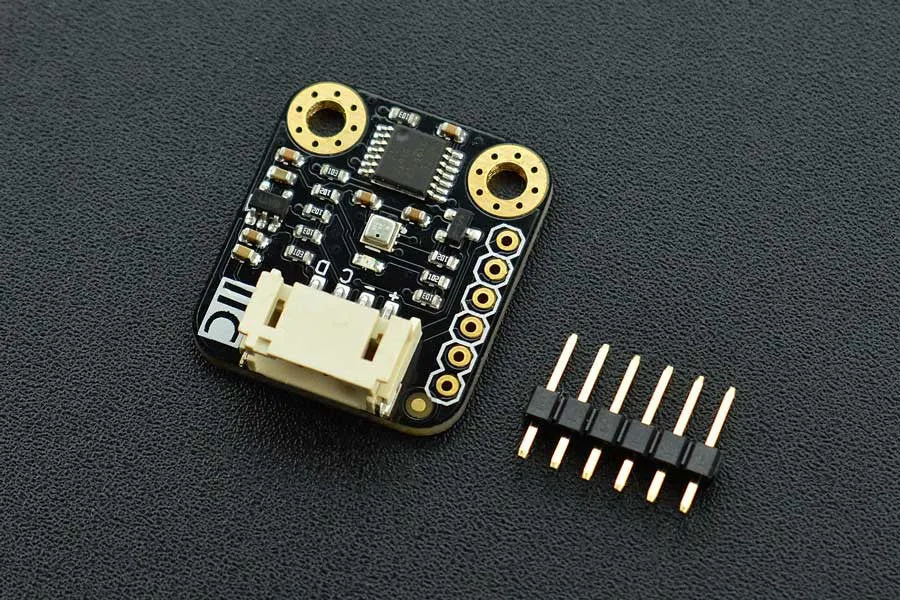

Gravity: I2C BME280 Environmental Sensor (Temperature, Humidity, Barometer) x1

XH2.54-6pin Headerx1

Gravity-4P I2C/ UART Sensor Wirex1
