Product Details
+
The 3.0 Inch Laminated IPS Kit for Game Boy Advance from FunnyPlaying.
**This kit only pairs with
FEATURES:
- An IPS and glass lens all in one piece.
- Adjust brightness with touch sensor.
- Multiple display effects including a mixed frame rate switch.
- Long Touch the touch sensor for full OSD menu.
- Soldering optional for button controls.
- Applicable console text is present on lens. Holographic text.

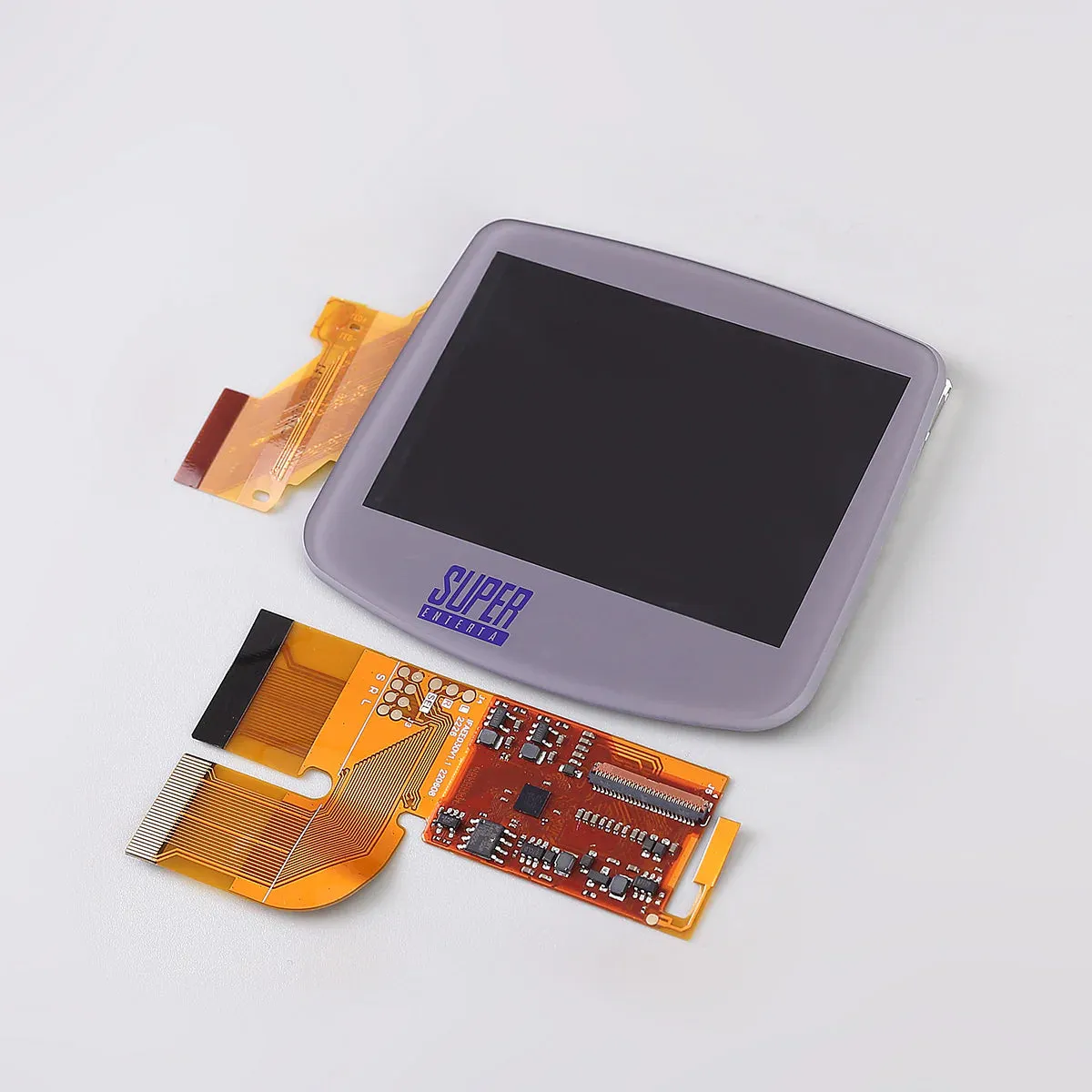

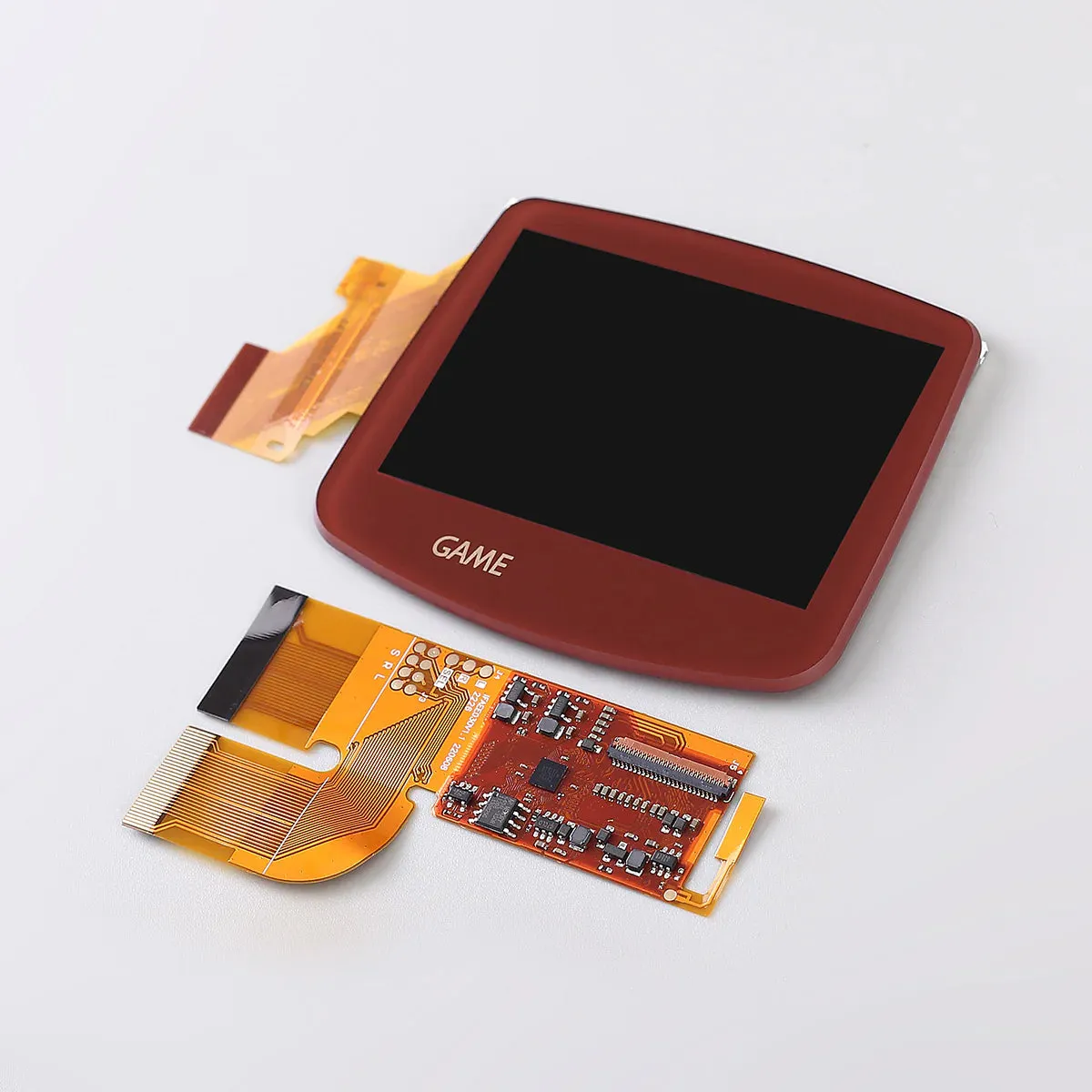

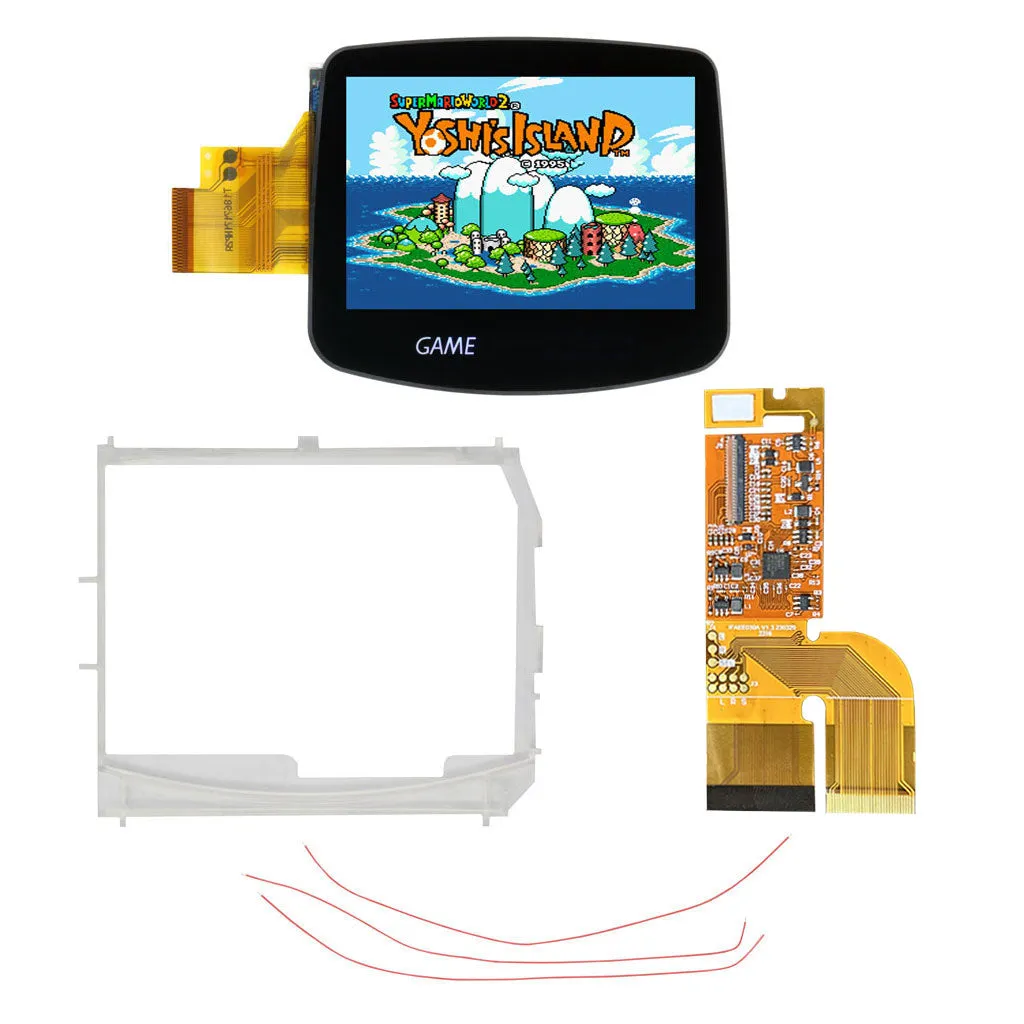

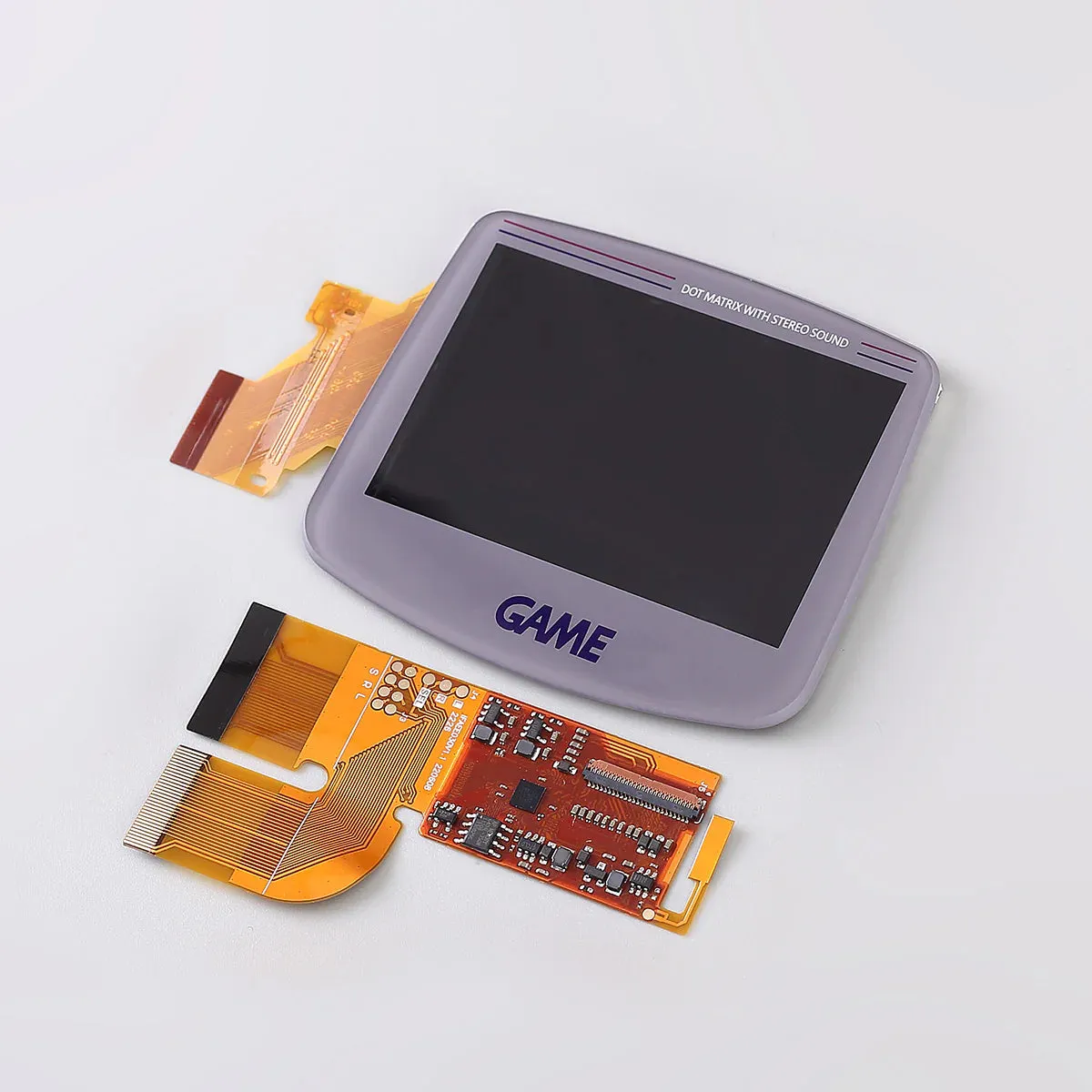

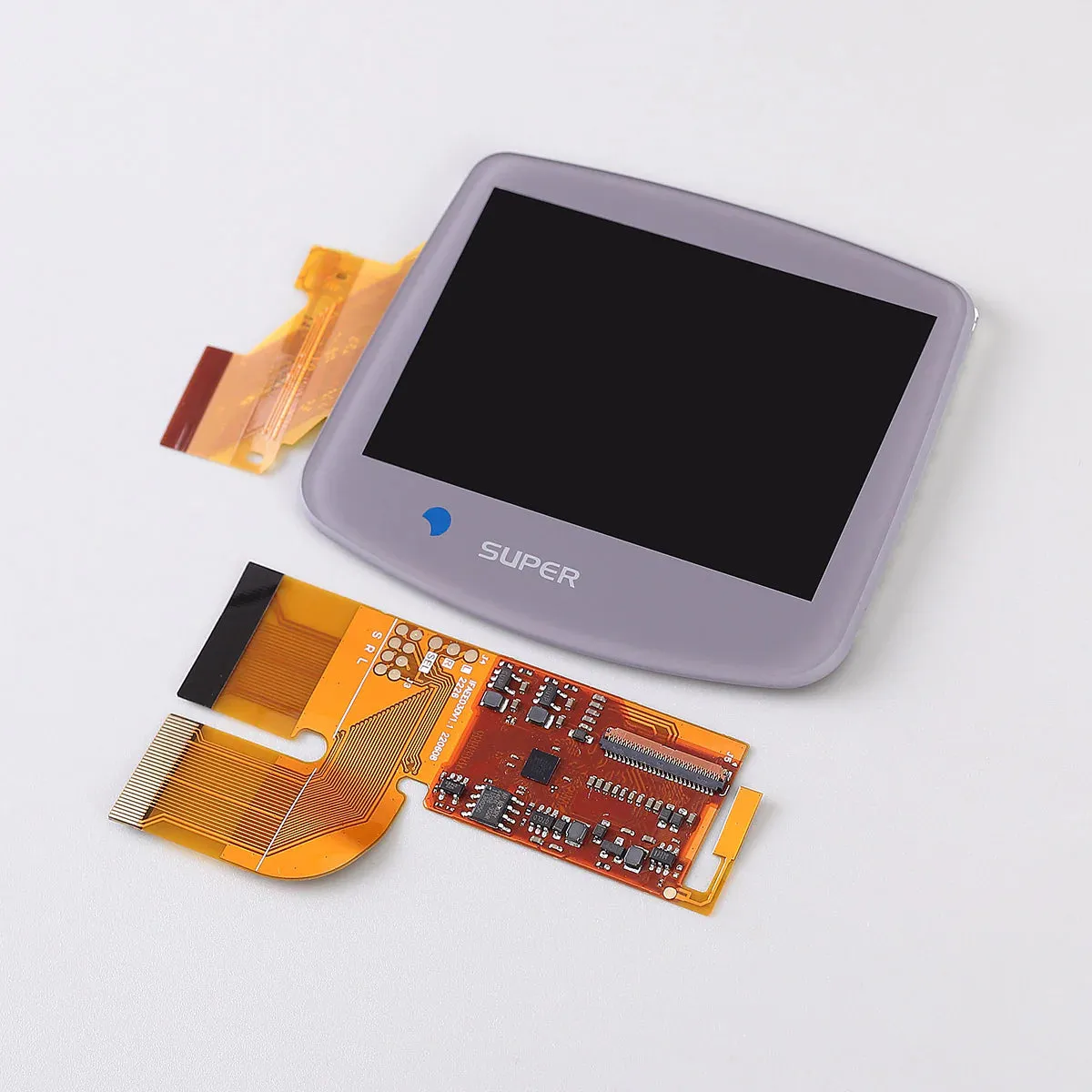

INCLUDED:
- 1 x IPS LCD with lens adhered (see warnings)
- 1 x PCB ribbon cable with attached touch sensor
- 3 x Wires
- 1 x Bracket
PAIRS WELL WITH:
- (ONLY pairs with this shell)
DOCUMENTATION:
NOTES:
- Only pairs with the . Other other shells require extensive trimming. Refunds/replacements are not accepted if the incorrect shell is used.
- If you received a bracket that looks different from the one in the product photo, you may have received the wrong bracket. Please . If this is not completed and the LCD kit is damaged, refunds/replacements will not be accepted.
- Long touch the touch sensor to bring up the OSD display, from there tapping the touch sensor once will adjust the value, and long holding the touch sensor a second time will allow you to cycle through the OSD. To exit OSD either wait 10 seconds or long hold the touch sensor for about 10 seconds.
- No longer includes foam. Touch sensor (now a larger size) can be adhered to the back of the LCD with Kapton tape/included adhesive when folded in the middle. The touch sensor can also float freely without adhering while being held down by the bracket.
- After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please for assistance.
WARNINGS:
- You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
-
Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
- LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
