Name: ExplorIR®-M 20% CO2 Sensor
SKU: 294734

Product Details ＋

The ExplorIR®-M-20 (formerly known as MinIR-GC-0026) is a miniature CO2 sensor, capable of measuring up to 20% CO2 concentration by volume. Its compact and robust design enables easy integration into gas monitoring and detection systems.

ExplorIR®-M is specifically designed for applications that require the sensor to operate reliably in extreme environmental conditions, especially where the pressure, temperature or vibration regime is particularly harsh. This makes it the ideal for applications from aerospace to food storage during transportation.

The sensor is designed to take 2 readings per second, making it ideal for applications where gas concentrations are rapidly changing.

The ExplorIR®-M uses patented solid-state optical technology, which enables the sensor to provide high accuracy CO2 measurement capability over an extended lifetime.

Features

Measures up to 20% CO2
Low power CO2 sensor
Solid-state LED optical technology
Vibration and shock resistant
UART interface
Built-in auto-zero function

Models

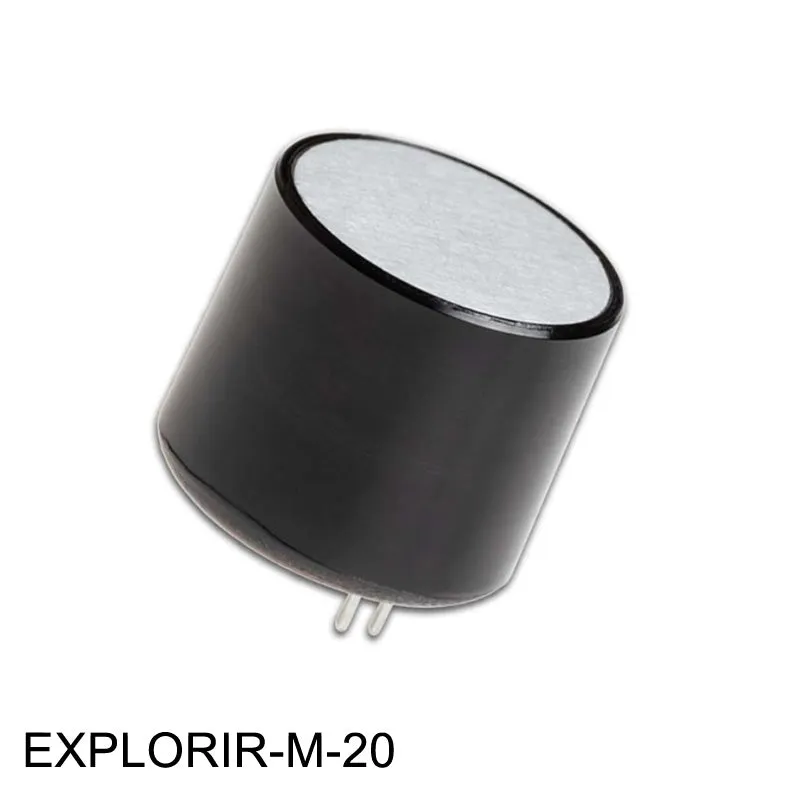

EXPLORIR-M-20 - ExplorIR®-M-20 Sensor for integration into high-volume OEM products.

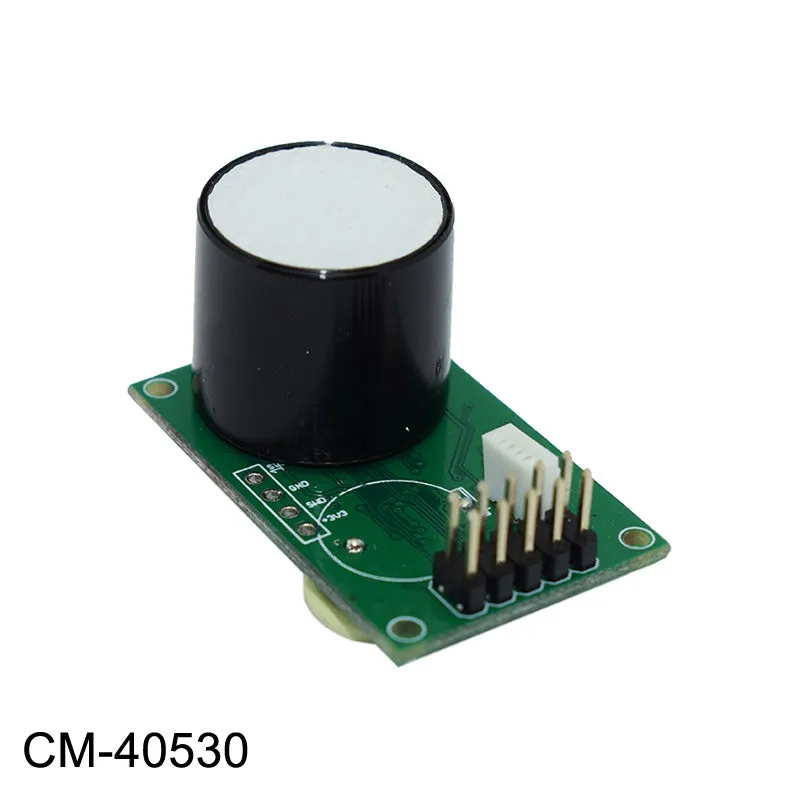

CM-40530 - EXPLORIR-M 20% CO2 Sensor w/ MX Board

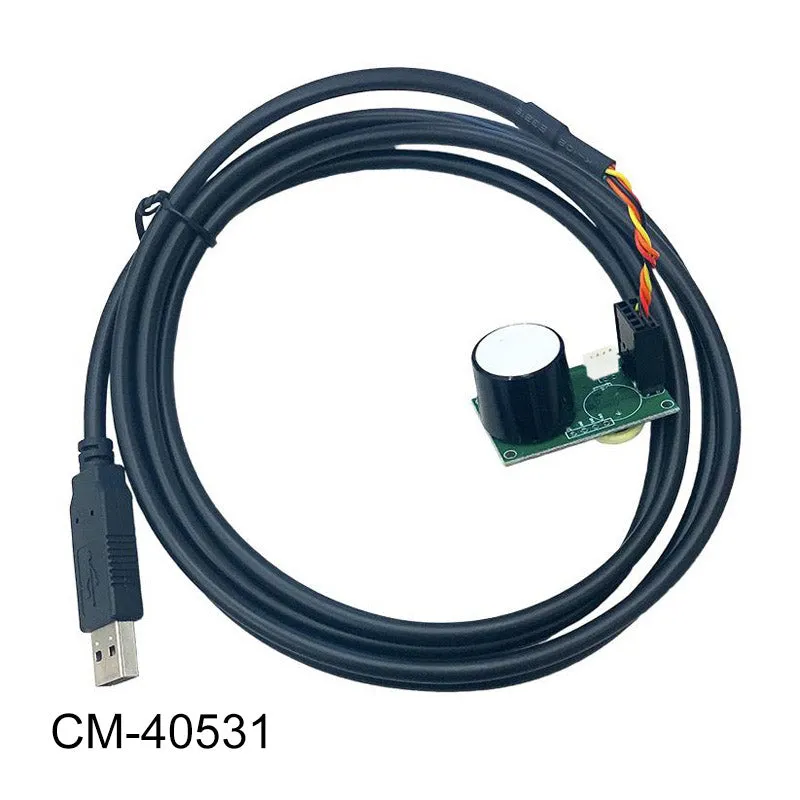

CM-40531 - EXPLORIR-M 20% CO2 Sensor Development Kit - Easy to use, simply plug the sensor module PCB into your PC via USB. Use our free to measure and graph carbon dioxide in real time or for data logging. Use a to create a sampling sensor.
Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free to measure and graph carbon dioxide or use our to build your own application or for OEM batch testing/configuration. Order sensors on this page, then .

We recommend that all first-time users purchase either the CM-40531 or CM-200 Development Kit for fastest and easiest results.

Specifications

CO2 Sensing Method: Non-dispersive infrared (NDIR) absorption
Sample Method: Solid-state LED NDIR Diffusion
Measurement Range: 0-5%
Accuracy: ±70 ppm /- 5% of reading @ STP
Time to 1st Reading: <1.2 seconds
Resolution: 10ppm
Non Linearity: < 1% of FS
Operating Pressure Range: 950 mbar to 10 bar
- external pressure calibration
Pressure Dependence: 0.1% of reading per mbar @STP
Warm-up Time: < 10s. 1.2 secs to first reading
Response Time: <30 Seconds (Diffusion Limited)
Readings per Second: 2
Operating Temperature: 0°C to 50°C
Operating Humidity: 0 to 95% RH, non-condensing
Storage Temperature: -40°C to 70°C
Dimensions: 20.9 mm x 21.7 mm
Weight: 4g sensor
Sensor Life Expectancy: > 15 years

Electrical / Mechanical

Power Input: 3.25V to 5.5V
Peak Current: 33mA @ 2 readings/sec.
Average Current: <1.5mA
Power Consumption: 3.5mW @ 3.3V
Measurement Output/Interface: UART (Serial)

Warranty

90 days - See

Documents

Accessories

- designed to provide customers with an easy drop-in solution. Includes our free . Sensor sold separately.

easily convert 20mm standard gas sensors from diffusion to sampling sensors. Molded polymer. Tube cap adapters are not pre-installed. For accurate results you must mount the tube cap permanently.

includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.

is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.

provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.

gives a strong and secure container to mount the sensor. Hydrophobic filters available for enclosure for outdoor use.
