Note:

1080P Front Camera

480P Rear View Camera

The camera consists of 1080P and 480P, and the two resolutions are different.

If the video is blurry, it means that your front and rear cameras are installed upside down, please install them correctly

Feature: 1. The whole machine is waterproof, dustproof and shake proof: The body is IP65 waterproof / the lens is IP67 waterproof.

2. 3.0 inch high definition display, three display styles, the display is clear and understandable at a glance.

3. Brand new appearance design in European and American industrial style, unique style.

4. Equipped with independent waterproof wire controller, recording, control operation button and stop button, LED display operation.

5. Prevent high and low temperature, prevent the machine from working in harsh conditions.

6. Equipped with an independent bracket, easy to install; comes with a full set of accessories, not easy to fall off while riding.

Technical specifications:

 Model: SE20

Display: 3.0-inch high definition 16:9 color screen

Effective pixel: 1920*1080 (front camera)

Video format: VGA

Video compression: MJPG Frame rate: 1080p, 30 frames per second

Image format: JPEG

Image size: max. 12 MP 4032*3024

Rear Camera: VGA

Collision sensor: 3-axis three-dimensional collision detection Recording mode: VGA format, cyclic video

Video interval: 0 ms

Memory: Support TF memory card from 4GB to 32GB (TF card is not included)

AP Encrypted Player: Automatic formatting of the local system to create

AP player startup time: 2 seconds

Working voltage: DC 5V

Operating current: 650mA

Quiescent current: <100uA

Storage temperature: -20~ 70℃

Operating temperature: 0~ 60℃

Working humidity: 15%-60%

RH Battery type: 300 mAh, heat-resistant polymer lithium battery

Body Material: Zinc alloy

Bill of lading:

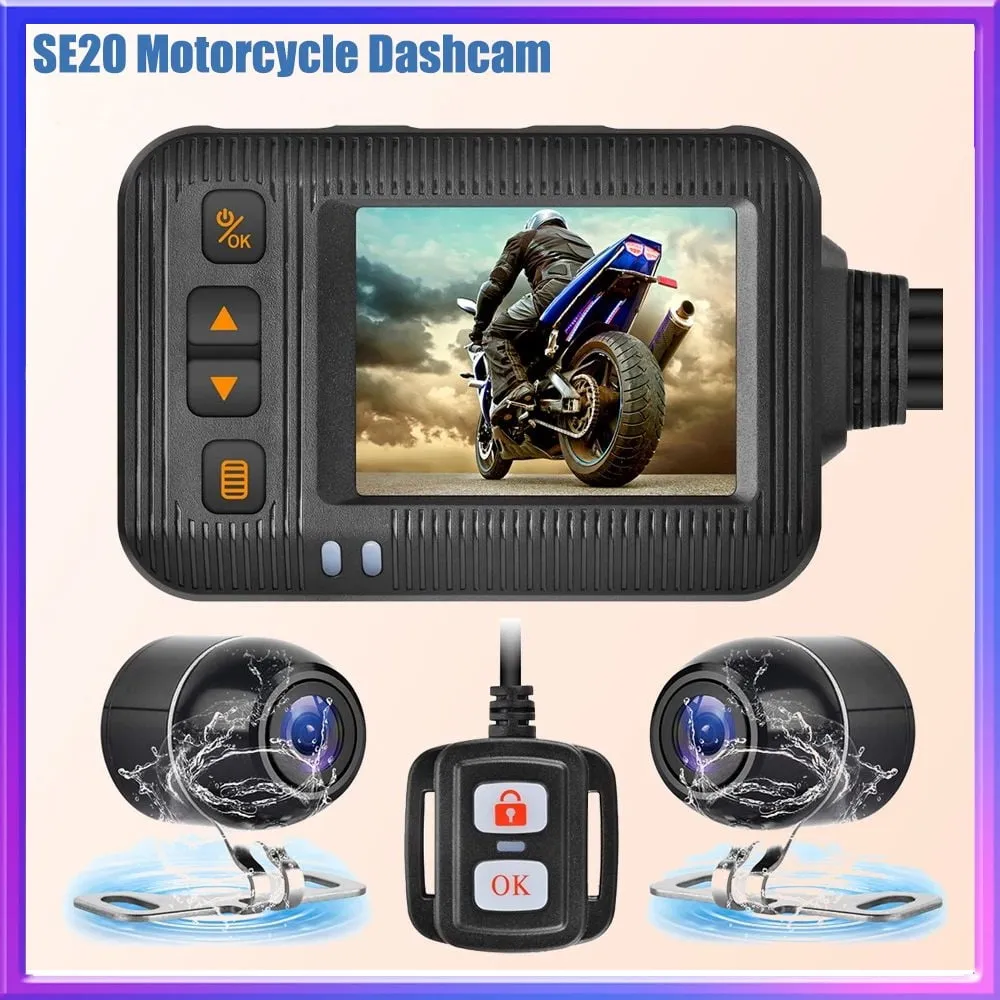

1 X Display 1 X Front Camera 1 X Rear View Camera 1 X Bracket 1 X Wired Control
