Product Details

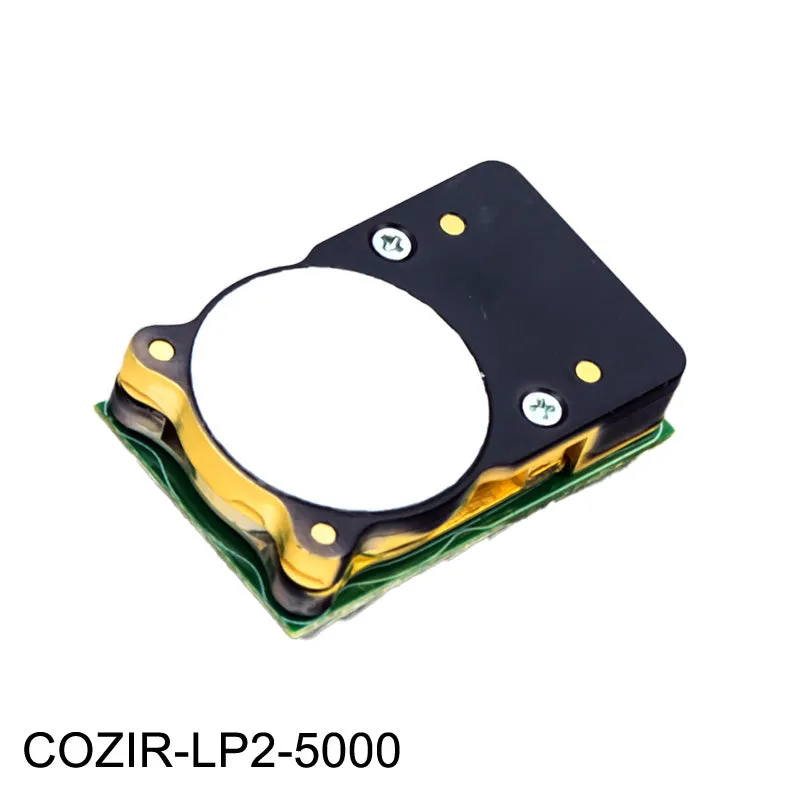

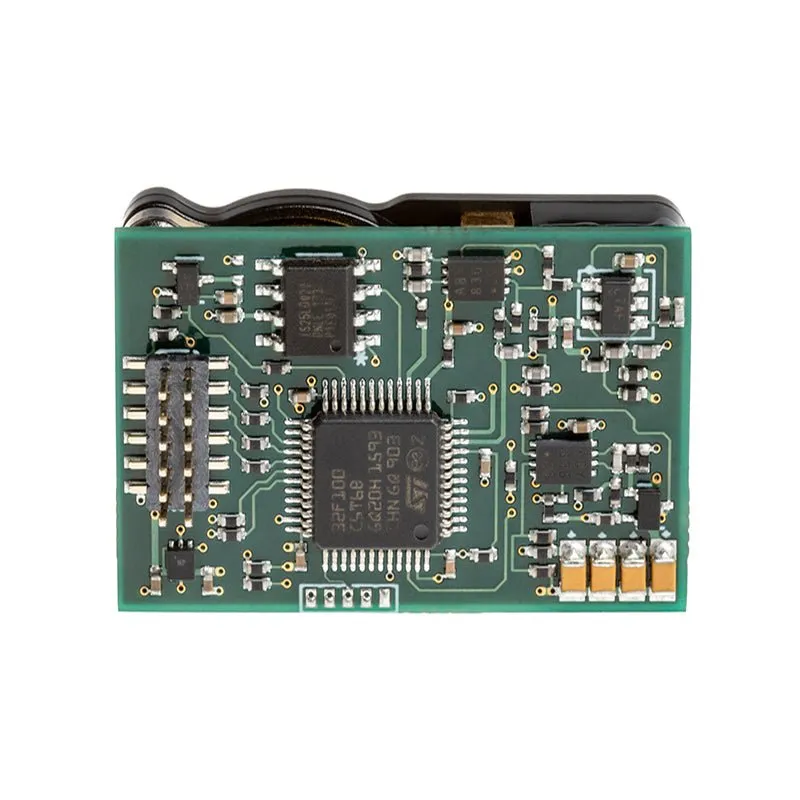

The CozIR®-LP2-5000 (formerly known as the GC-0034) holds the lowest power and longest lifespan of an infrared CO2 sensor available today. This sensor is perfect for IAQ, DCV and HVAC applications or gas monitoring detection systems.

Features

  • Measures up to 1% CO2 concentration
  • Digital (UART) and I2C Output
  • Up to 50X lower power than typical NDIR CO2 Sensors
  • Supports energy-efficient smart home environments

Models

  • COZIR®-LP2-5000 – designed for low concentration CO2 environments with measurement ranges from 0-2000 ppm, 0-5000 ppm, and 0-1%.

Specifications

  • CO2 Measurement: Patented Solid-state NDIR absorption
  • Sample Method: Diffusion
  • Measurement Range: 0-2,000 ppm, 0-5000 ppm, 0-1%
  • Accuracy: ±(30ppm, 3% of reading)
  • Time to 1st Reading: <1 second
  • Calibration: Auto calibration
  • Resolution: 1ppm
  • Pressure dependence: 0.15% of reading per mbar (normal atmospheric)
  • Operating pressure range: 500mbar – 10 bar
  • Response time: <30 secs (diffusion limited)
  • Sensor Life Expectancy: > 15 years

Electrical/Mechanical

  • Power Input: 3.25 to 5.5V. (3.3V recommended)
  • Power Consumption: <3.5mW @ 3.3V
  • Connector: 2 x 6-way 1.27mm header
  • Communication: UART, I2C

Warranty

  • 90 days - See CO2Meter Terms and Conditions

Documents

Case Studies

Free Easy-to-use GasLab® Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.

System Requirements for Data Logging or Changing Defaults

  • Windows XP SP2 or newer
  • Microsoft .Net 3.5 Runtime Libraries

    CozIR®-LP2 5000ppm CO2 Sensor
    • CozIRLP250005000ppmCO2Sensor

    $ 149.00

    $ 54.00

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
