As an event technician and theater lighting designer you know: the requirements for a Fresnel spotlight are identical regardless of the size of the application - high quality of light in the most compact dimensions possible, natural color rendering, professional features such as adjustable PWM and silent mode and more.
In addition to large, powerful spotlights with several kW light output, large theaters need smaller versions that fit seamlessly into the lighting concept. But what about smaller stages, theater festivals away from the big festivals, ensembles on tour in unusual locations?

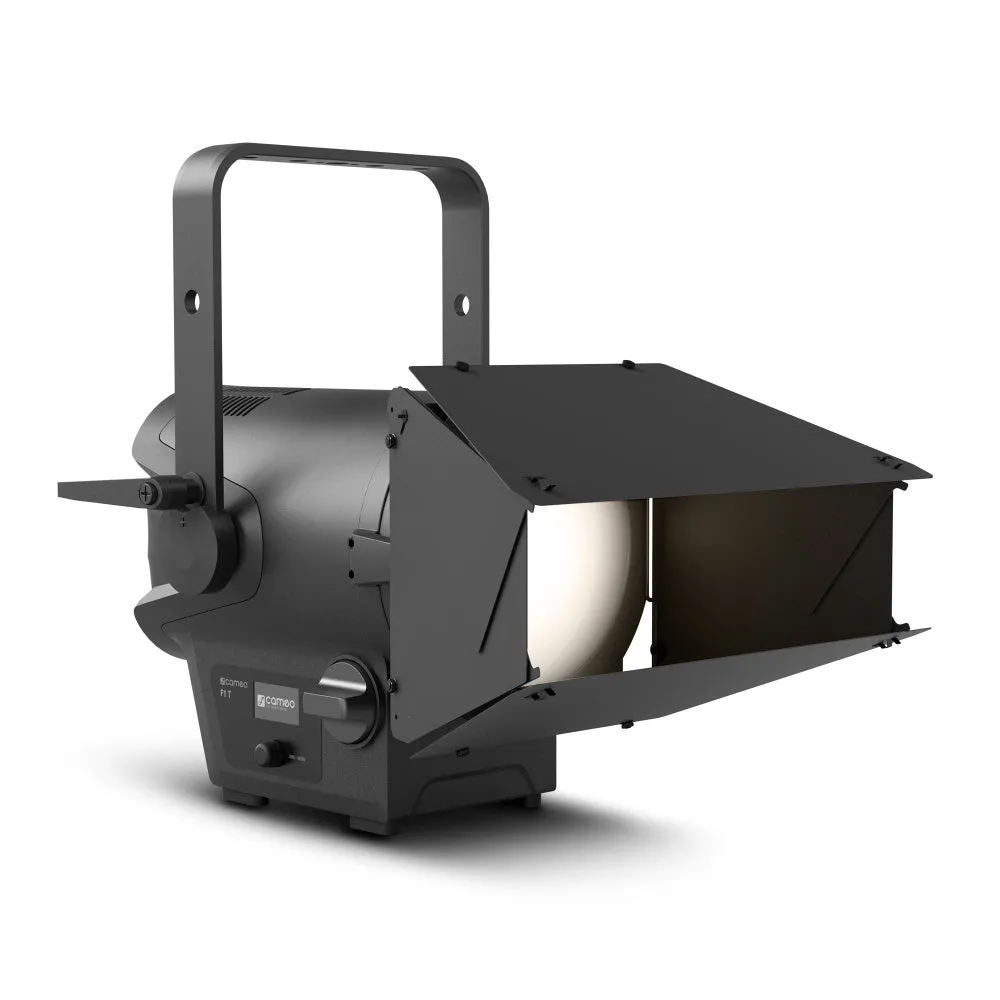

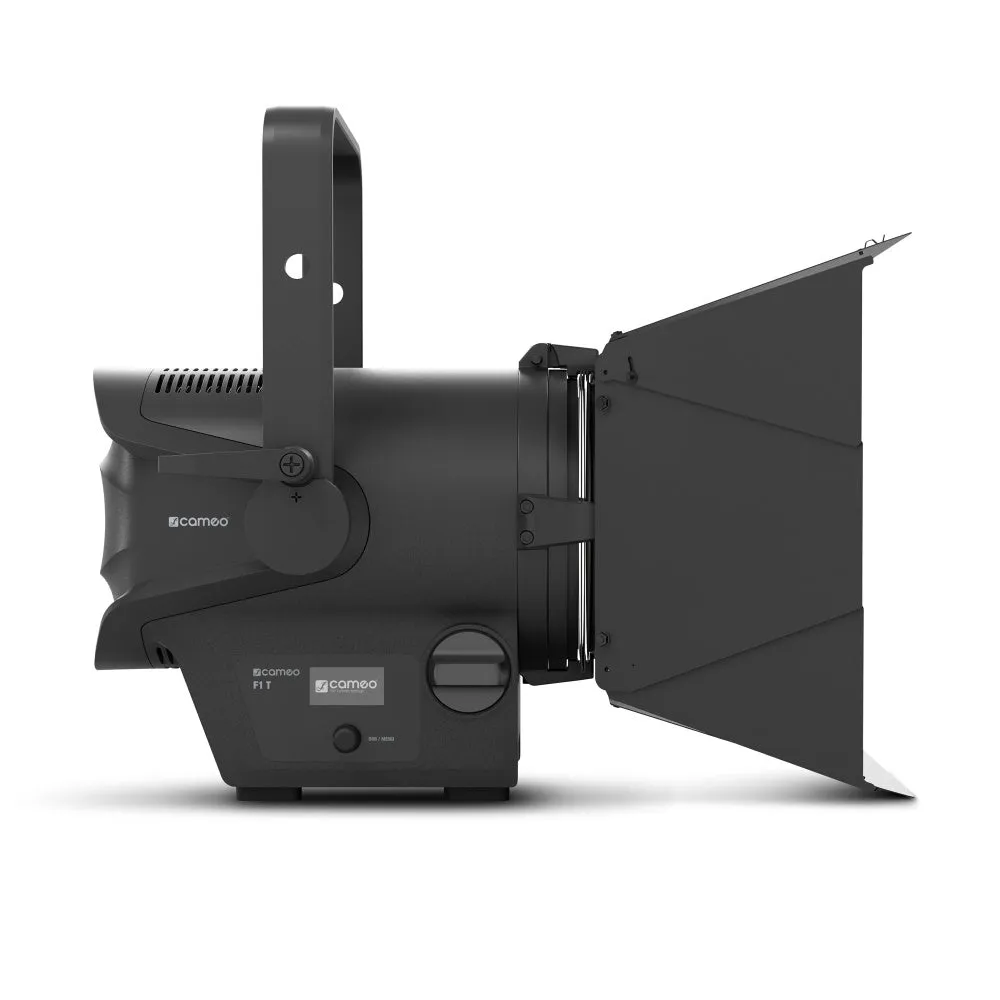

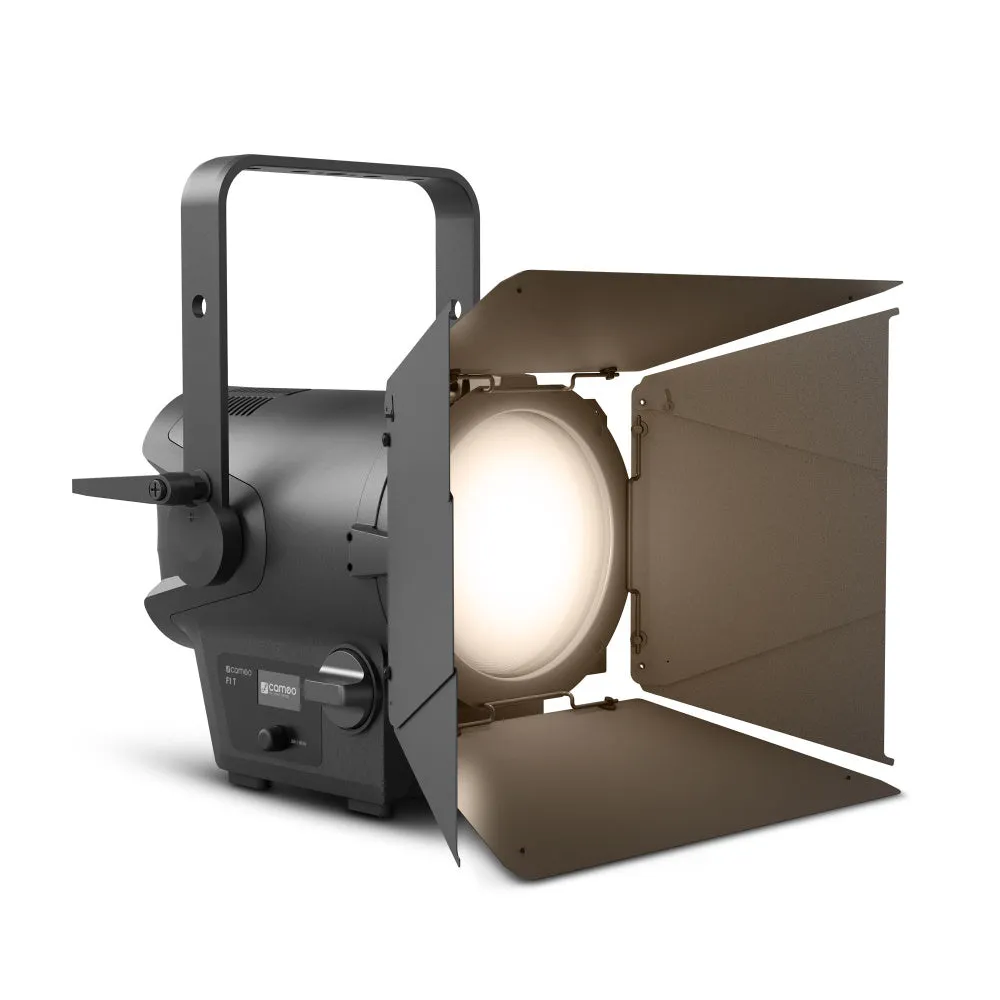

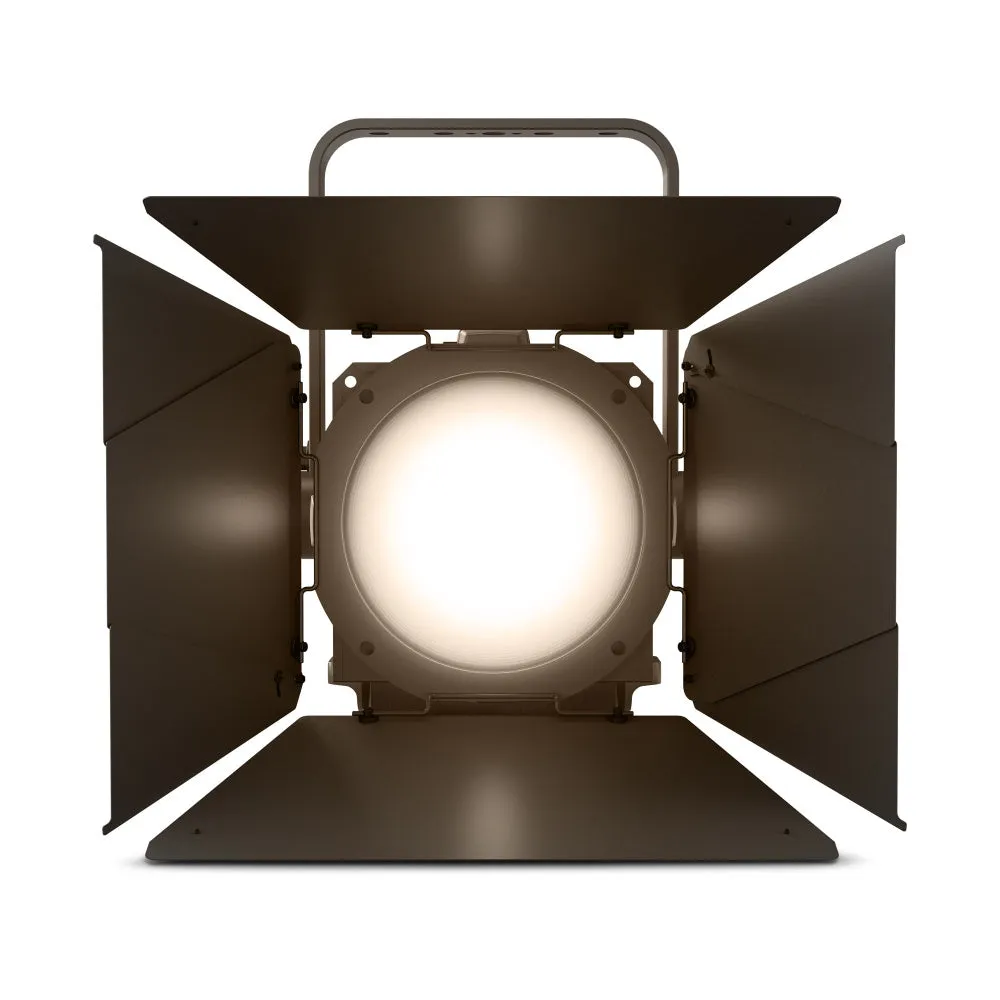

The F1 T provides you with an ultra-versatile LED Fresnel spotlight with tungsten LED for use in theatres, live applications, broadcasting and film. It can be quickly and easily transported anywhere and utilized without mains cables when needed.
Cameo's F series is rounded off by the F1, which is the most compact spotlight in the range. It functions on less power than the larger F2 and F4 models and, with 4,800 lm of warm white, it can be easily used in place of conventional spotlights which have comparatively inefficient 650-watt halogen lamps. In professional applications, the F1 is every bit as good as its big brothers: an impressive CRI rating of 98 faithfully reproduces colors when lighting objects and people, Silent Mode for virtually silent use in noise-sensitive environments, and flicker-free operation thanks to selectable pulse width modulation frequency up to 25 kHz.
Paired with the infinitely variable zoom range of 15° to 53°, you're free to use the F1 T as a theatre or TV/film light: it works just as well as a high-performance front light or as flexible additional lighting, then wows the very next day when used as a durable spotlight on the street festival stage, and then finally wraps up the week as a natural light source in interviews. Frequently travelling lighting technicians are well aware of the wide range of requirements placed on spotlights and will love the compact, lightweight magnesium housing. In addition, the F1 T can be converted into a battery-operated spotlight for mobile use in just a few steps with the optional V-Mount battery plate.
Features
- Fresnel spotlight with tungsten LED, 3000 K
- 4,800 lm luminous flux replaces conventional 650 W halogen Fresnel spotlights
- Natural colour reproduction (CRI: 98)
- Continuously variable zoom range (15° to 53°)
- Flicker-free camera images thanks to selectable pulse-width modulation up to 25 kHz
- Four selectable dimmer curves with adjustable response
- Highly efficient cooling system and silent mode for noise-free operation
- 8-way barn door and gel frame included
- Compact and lightweight design for mobile applications
- Optionally expandable with the V-mount battery plate for battery operation
Specifications
- Product type: LED Fresnel Spotlight
- Type: Theater Fresnel
- Colour spectrum: Tungsten
- Number of LEDs: 1
- LED type: 78 W (approx. 50000 operating hours)
- LED PWM Frequency :800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
- Dispersion: Beam Angle: 15 - 53 °, Field Angle: 24 - 78 °
- Lens: 150 mm Fresnel

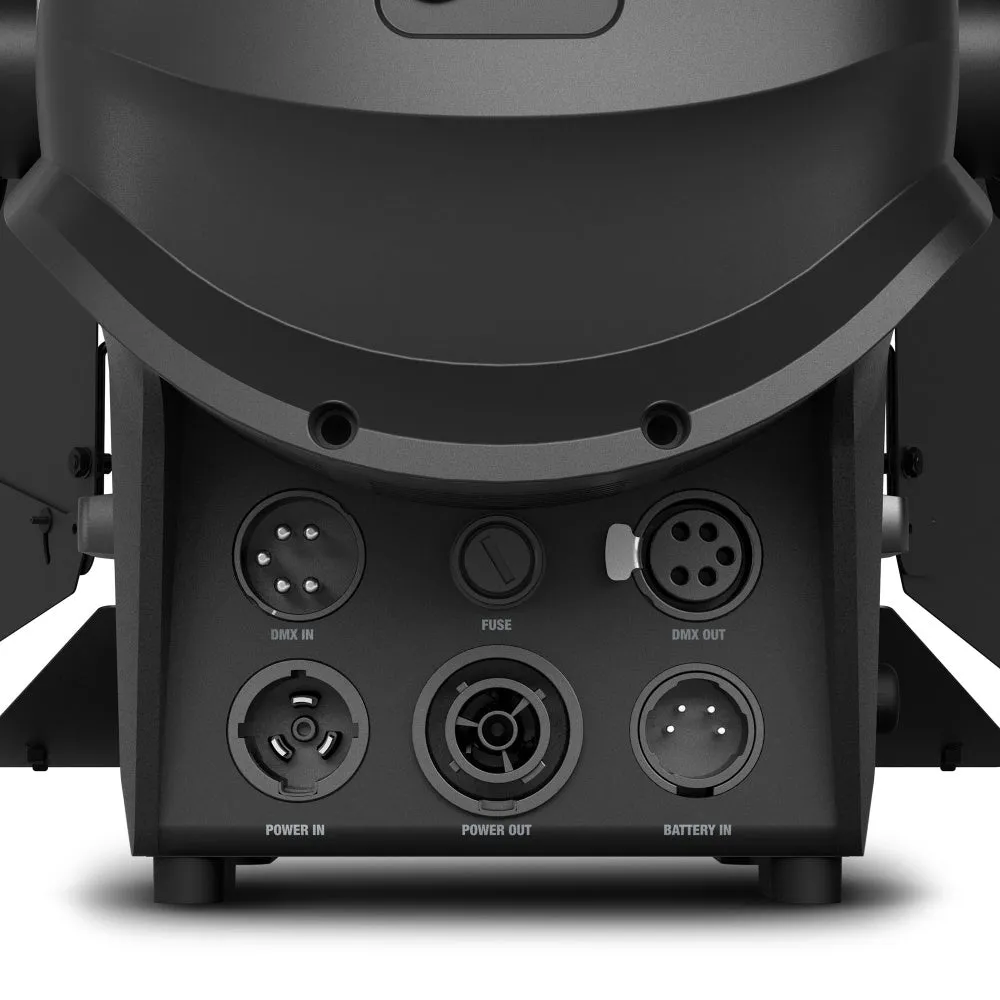

- DMX input: 5-Pol
- DMX output: 5-Pol
- DMX Functions: Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe
- Standalone modes: Master / Slave mode, Static
- Controls: Push encoder
- Indicators: OLED Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 87 W
- Power connector: TRUE1 Compatible Power I/O Socket
- Power supply connection: 4-pin connector
- Housing material: Magnesium
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: Combination of Heat Pipe and Temperature Controlled Fan
- Luminous flux: 4800 lm
- Efficiency: 51 lm/W
- Color temperature: 3000 K
- Operating Temperature: -15 - 40 °C
- Accessories (included): 8-way barndoor, gel frame, Power cord
- Width: 225 mm
- Height: 255 mm
- Length: 280 mm
- Weight: 4,5 kg
