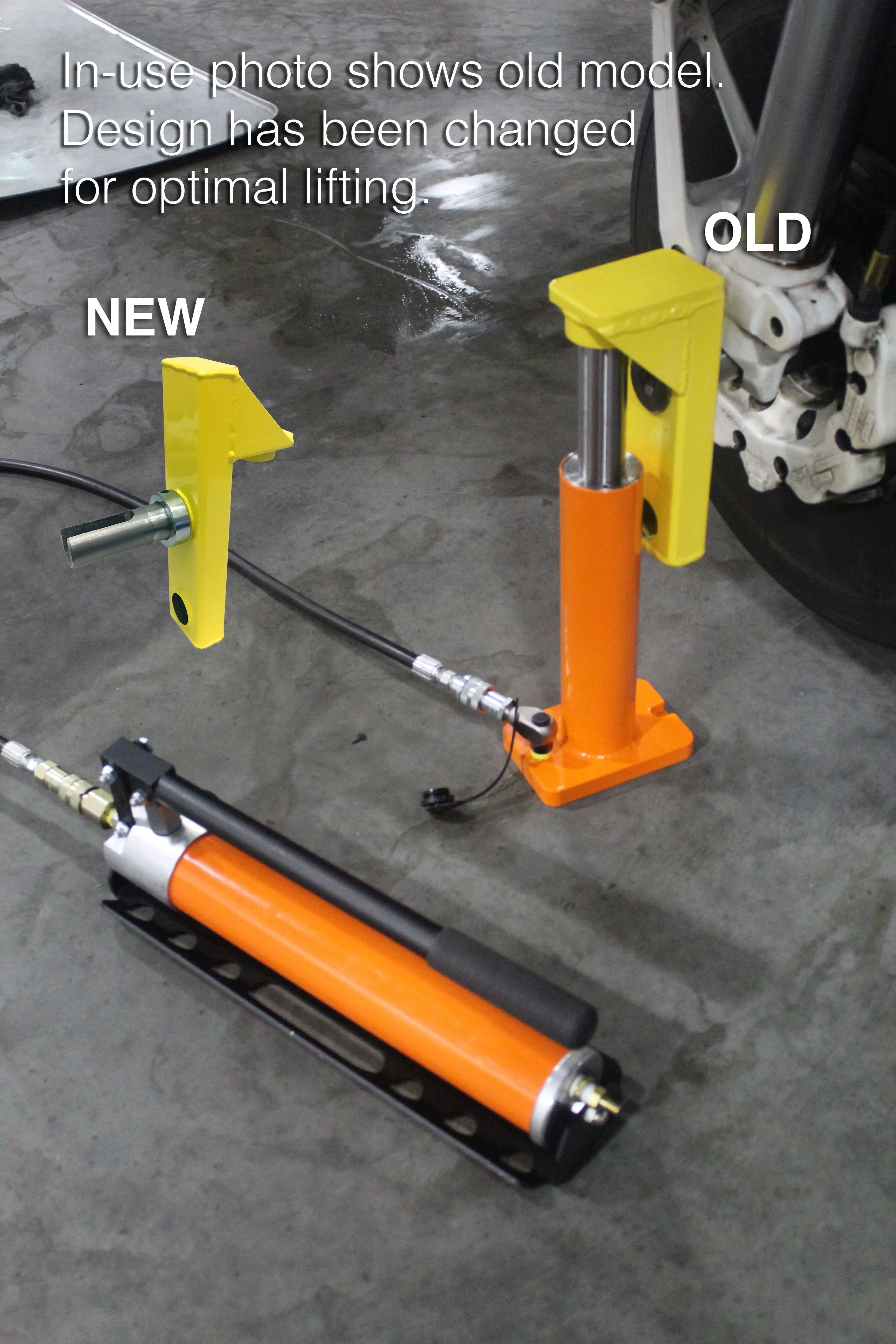

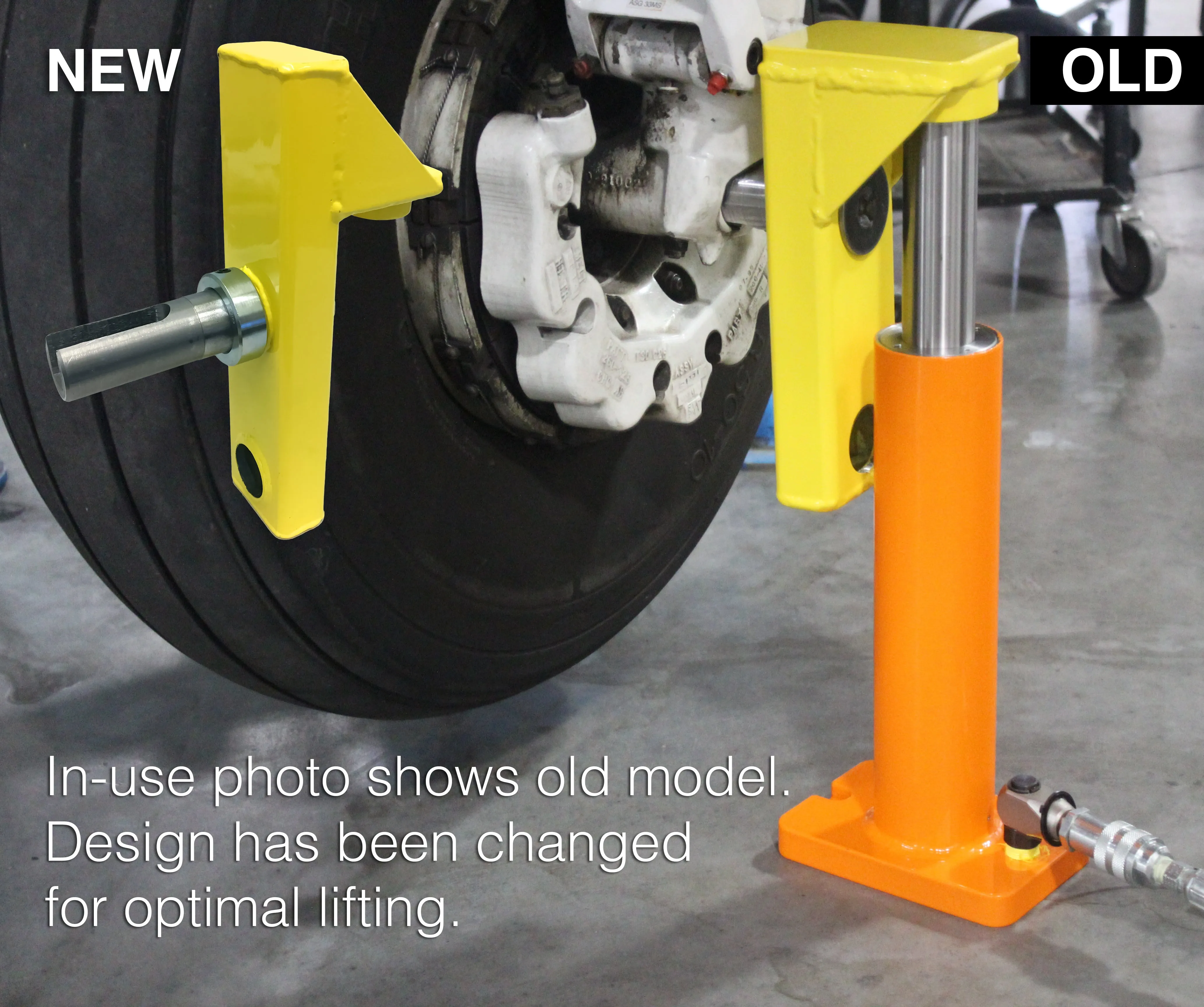

*Note: Product designs shown above are currently undergoing upgrades. The final product you receive may vary slightly. If you have questions in the meantime, please call us at (509) 736-1513
Our Bogert Aviation Jack Kits will save you time and money when needing to raise one wheel for a tire change, repacking wheel bearings, servicing the brakes, or changing a flat tire. This frees up wing jacks for other work!
Use with Bogert Aviation’s for safety.

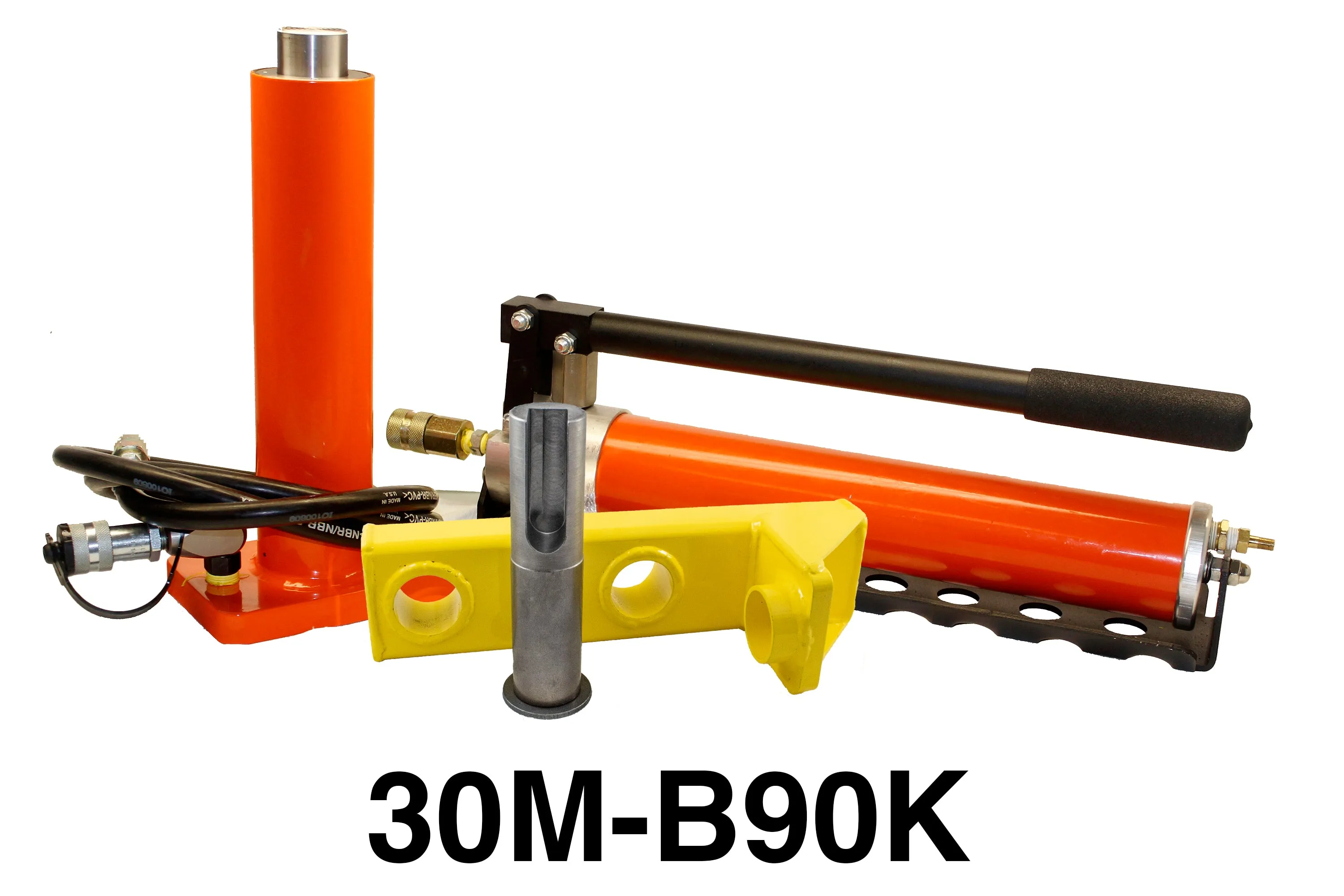

DETERMINE YOUR NEEDS FROM THE TABLE BELOW THEN CHOOSE YOUR KIT FROM THE DROP-DOWN MENU
| ITEM INCLUDED | Beechcraft B90
| Beechcraft B100, B200, B300 | NAVY T54 | Cessna 414, 421 C, 425, 441 | Pilatus PC12 | Piper PA-46, M-600, M-700 |
| Instruction Manual | X | X | X | X | X | X |
| Remote Bottle Jack | X | X | X | X | X | X |
| Hydraulic pump & handle | X | X | X | X | X | X |
| 6-foot hydraulic hose w/ couplings | X | X | X | X | X | X |
| Jack Shelf Adapter Tube | X | X | X | X | X | X |
| Rub Strip Plug | X | X | X | X | X | X |
| Pelican Air Case AC-1595 | X | |||||
| NOSE Gear Axle Pin | X | X | X | X | ||
| MAIN Gear Axle Pin | X | X | X | X | X | X |
| Nose Gear Pin UNAVAILABLE (gear is forked) | X | X |
Benefits
- Saves time and money
- Adds mission capability
- Small, Portable, and lightweight compared to wing jacks
- Frees up wing jacks for other work
Features
- Designed to be used with BMI Hydraulic Technologies' 12-inch, 15-ton Remote Hydraulic Jack
- Jack pad can be used with Safe Jack's™ 6-ton 1¼” ram or larger bottle jacks
- Can be used with 3-ton or larger floor jacks
- Made in the USA
BMI Hydraulic Remote Bottle Jack is heavy-duty, American-made, and built for service under constant use. Features a steel base for a wide stance and positive load support.
P/N | Tonnage/Working Pressure @ 6,500 psi | Closed Height | Total Extended Height | Hydraulic Lift (Stroke) | Ram Diameter | Cylinder I.D. | Jack Base Size (W&L) | Unit Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
2088-02RB1512 | 15 Ton | 12" | 22" | 10" | 1.5" | 2.25" | 4x6" | 17 |
BMI Hydraulic Technologies Hydraulic Pump has externally adjustable pressure relief up to 10,000 psi, is compatible with most fluids, easy to pump, lightweight, can exchange cylinders and pistons, and is 100% made in the USA. Hose included in Aircraft Jack Kits.
P/N | Stage | Piston Diameter | Volume Per Stroke | MAX PSI | BAR | Handle/Lever Effort (lbs) at 10,000 PSI | Usable Oil Capacity | Weight with Oil (lbs) |
|---|---|---|---|---|---|---|---|---|
P40ACX-07 | 1-Single | 7/16 | 0.1882 cu in | 6,500 | 700 | 105.0 | 40 cu in | 9.4 |
These kits are 100% Made in the USA
