Name: Aims Power - 3000 Watt 120Vac Pure Sine Inverter Charger with 120Vac 30A or 240Vac 50A Bypass - 12 VDC 120 VAC 50/60Hz - PICOGLF3K12050BY
SKU: 294896

Product Details ＋

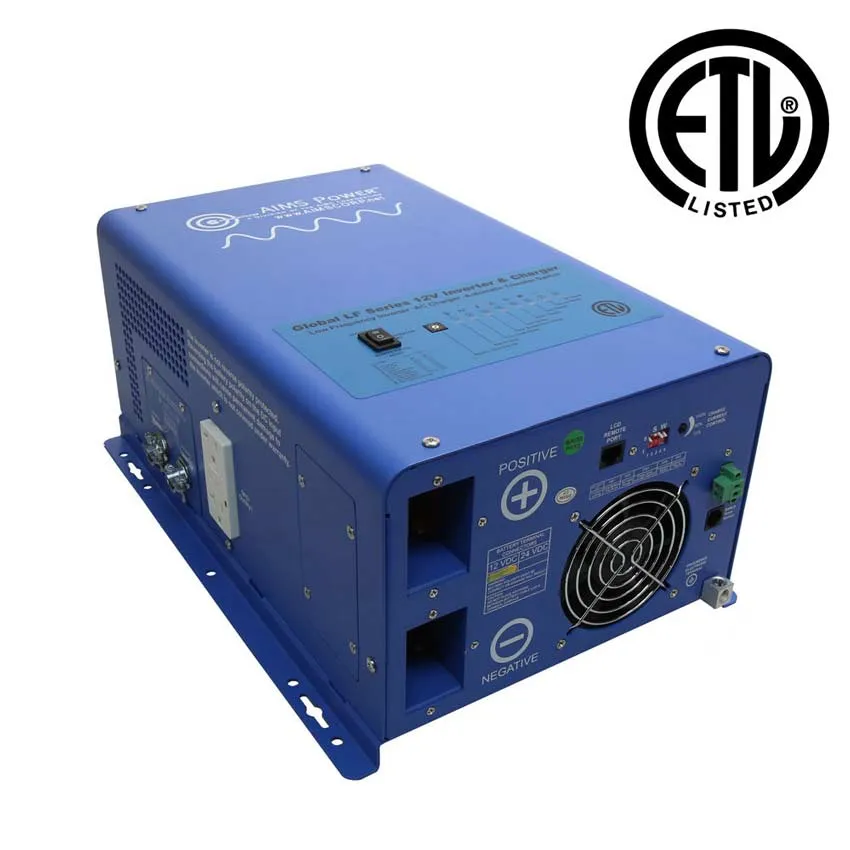

Elevate your power solutions with the ETL listed AIMS 3000-watt pure sine inverter charger, now available for purchase on Appliance Guys. This advanced inverter surpasses ETL requirements and is equipped with a 2-year warranty, ensuring reliable performance. Designed as a combination of an inverter, battery charger, and AC auto-transfer switch, this system is perfect for RVs, work trucks, food trucks, and boats. Packed with features, it boasts a peak DC and AC conversion efficiency of 92%, making it one of the most sophisticated inverter chargers in the market. Upgrade your power setup with the AIMS 3000-watt pure sine inverter charger, ensuring reliable and efficient performance in various applications.

Appliance Guys Exclusive Benefits:

Lifetime Phone Support: Expert assistance always within reach.
Open 7 Days a Week: Convenience tailored to your schedule.
Price Match Guarantee: Shop confidently, knowing you're getting the best deals.

Features

Features

Bypasses 50 amps 120V or 240V and outputs 120V: Ideal for various applications
2-year warranty: Ensures product reliability
3000-watt low-frequency inverter: Powerful performance
9000-watt surge for 20 seconds - 3x surge capability: Handles demanding loads
Battery priority selector: Customizable power usage

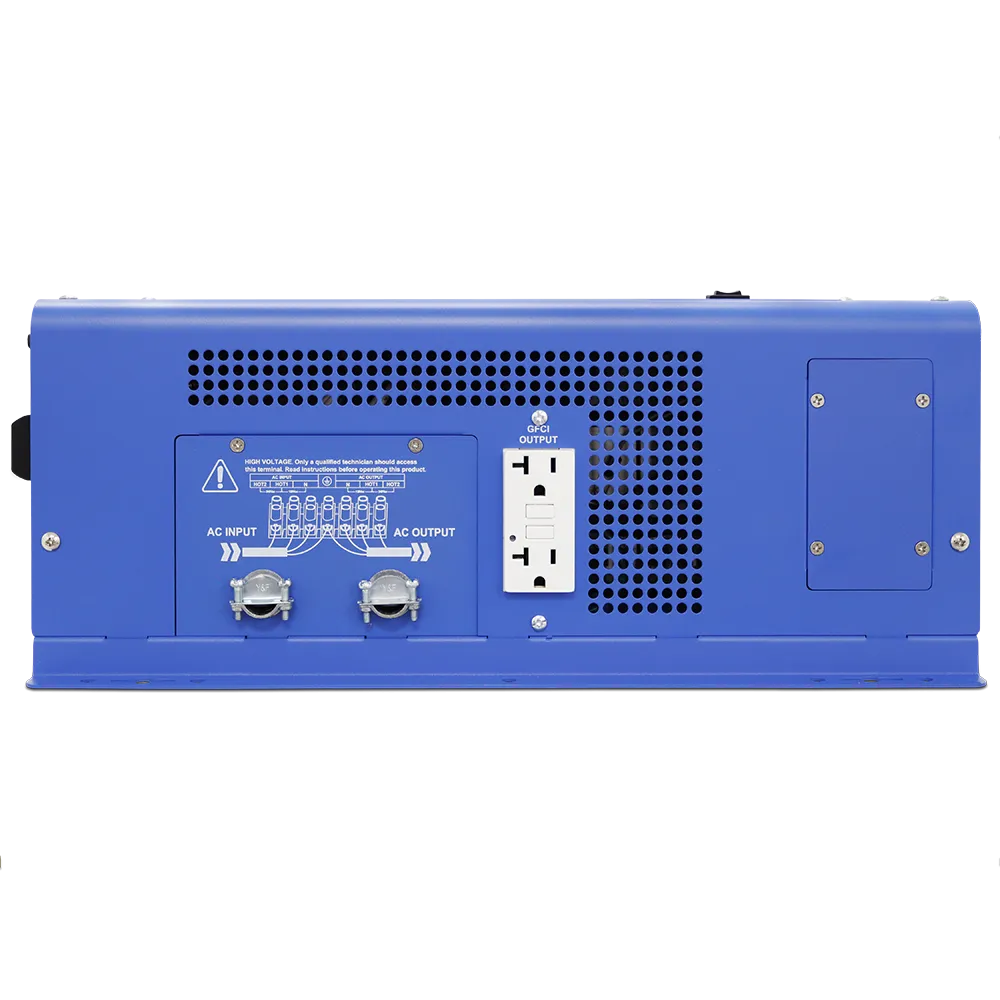

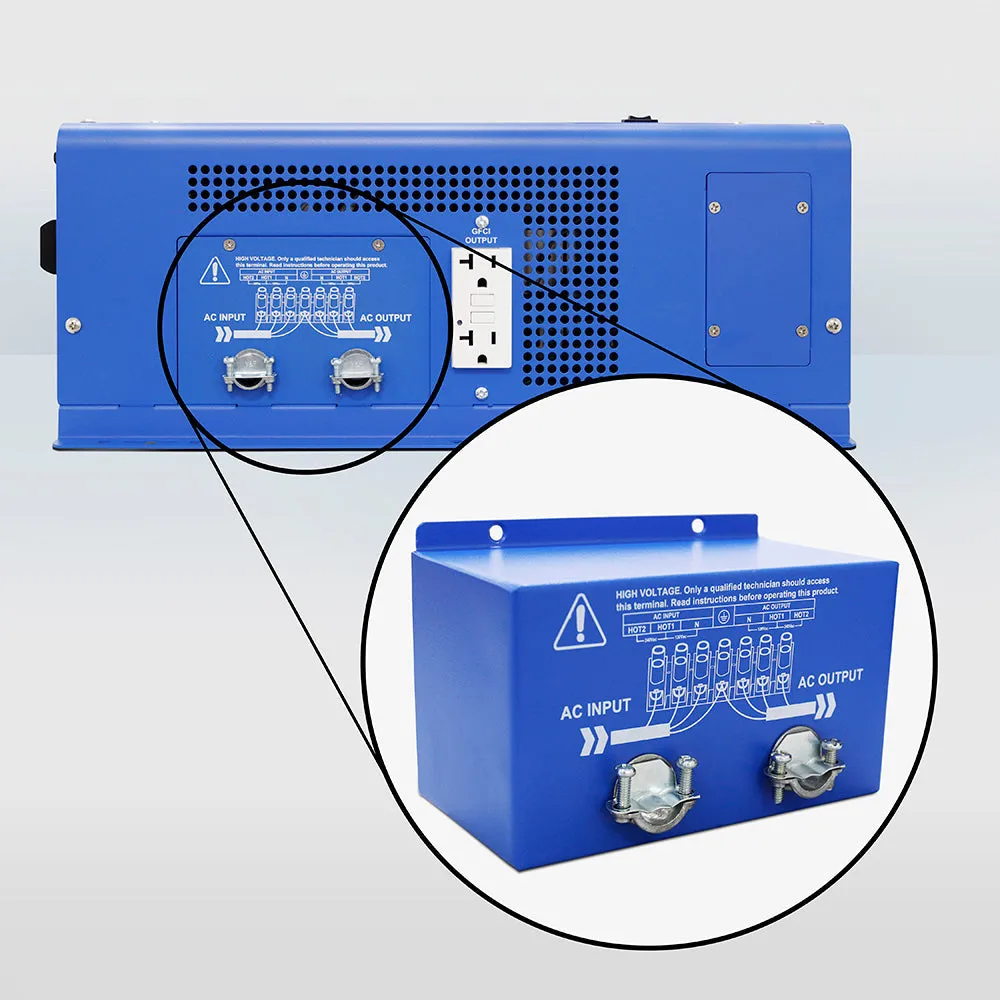

AC direct connect terminal block: Easy connectivity
GFCI – 20 amps: Enhanced safety
Marine coated and protected: Suitable for marine environments
Multi-stage smart charger 100 amps: Efficient charging
Remote panel available: Convenient control
Auto gen start: Integrates electrical generators as backup
Auto frequency: Automatic adjustment
10msec typical transfer time: Swift power transitions
7 battery type settings for charger including lithium: Versatile battery compatibility

Specifications

Specifications

Continuous Output Power: 3000 Watts / 3KW
Surge Rating (20 secs): 9000 Watts / 9KW
Starting Electric Motor (HP): 3 HP
Output Waveform: Pure Sine
Nominal Efficiency: >92% (Peak)
Line Mode Efficiency: >95%
Power Factor: .9 – 1
Nominal Output Voltage (rms): 120Vac
Output Voltage Regulation: ± 10% RMS
Output Frequency: 50/60 Hz ±0.3Hz
Short Circuit Protection: YES. Current Limit Function (fault after 1 sec)
Typical Transfer Time: 10ms (MAX)
Max THD @ Full Linear Load: <20%

DC INPUT:

Nominal Input Voltage: 12 Vdc
Minimum Start Voltage: 10Vdc
Low Battery Alarm: 10.5Vdc / 11.Vdc
Low Battery Trip: 10Vdc / 10.5Vdc
High Voltage Alarm & Fault: 16Vdc
High DC Input Recovery: 15.5Vdc
Low Battery Voltage Recover: 13Vdc
Sleep Mode Threshold: >50 Watts (Power Saven On)

CHARGE:

Input Voltage Range: Narrow: 100-135Vac Wide: 90-135Vac
Input Frequency Range: Narrow: 47-55 ±0.3Hz @ 50Hz, 57-65 ±0.3Hz @ 60Hz
Output Voltage: Depends on battery type
Charger Breaker Rating (120 Vac): 30A
Max Charge Rate: 100A
Over Charge Protection Shutdown: 15.7V

BYPASS & PROTECTION:

Input Voltage Waveform: Pure sine from grid or generator
Nominal Voltage: 120Vac
Low Voltage Trip: 80V/100V ±4%
Low Voltage Re-engage: 90V/100V ±4%
High Voltage Trip: 140V ±4%
High Voltage Re-engage: 135V ±4%
Max Input AC Voltage: 150Vac
Nominal Input Frequency: 50Hz or 60Hz (auto detect)
Low Freq Trip: Narrow: 47 ±0.3Hz @ 50Hz, 57 ±0.3Hz @ 60Hz Wide: 40 ±0.3Hz for 50/60Hz
Low Freq Re-engage: Narrow: 48 ±0.3Hz @ 50Hz, 58 ±0.3Hz @ 60Hz Wide: 45 ±0.3Hz for 50/60Hz
High Freq Trip: Narrow: 55 ±0.3Hz @ 50Hz, 65 ±0.3Hz @ 60Hz Wide: No limit for 50/60Hz
High Freq Re-engage: Narrow: 54 ±0.3Hz @ 50Hz, 64 ±0.3Hz @ 60Hz Wide: No limit for 50/60Hz
Output Short Circuit Protection: Circuit Breaker
Bypass Breaker Rating (120 Vac): 50A
Bypass Breaker Rating (240 Vac): 50A
GFCI Rating: 20A
