The Allegro® A1104 Hall-effect switches are next-generation replacements for the popular Allegro 312x and 314x lines of unipolar switches. The A110x family, produced with BiCMOS technology, consists of devices that feature fast power-on time and low-noise operation. Device programming is performed after packaging, to ensure increased switch point accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and low-offset amplifiers help to minimize noise and to reduce the residual offset voltage normally caused by device over molding, temperature excursions, and thermal stress. The A1104 and Hall-effect switches include the following on a single silicon chip: voltage regulator, Hall-voltage generator, small-signal amplifier, Schmitt trigger, and NMOS output transistor. The integrated voltage regulator permits operation from 3.8 to 24 V.

Features:

1. Continuous-time operation
2.  Fast power-on time
3.  Low noise
4. Stable operation over the full operating temperature range
5.  Reverse battery protection
6.  Solid-state reliability
7.  Factory-programmed at end-of-line
8. for optimum performance
9.  Robust EMC performance
10.  High ESD rating
11.  Regulator stability without a bypass capacitor

Package Includes:

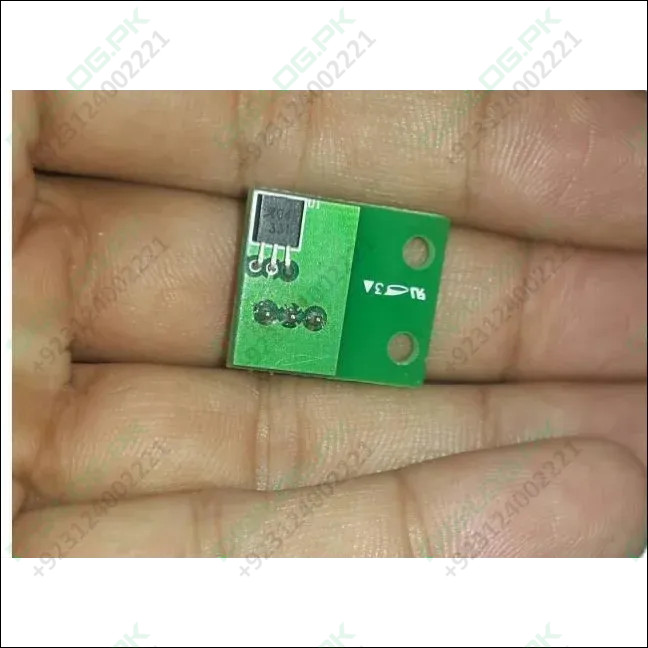

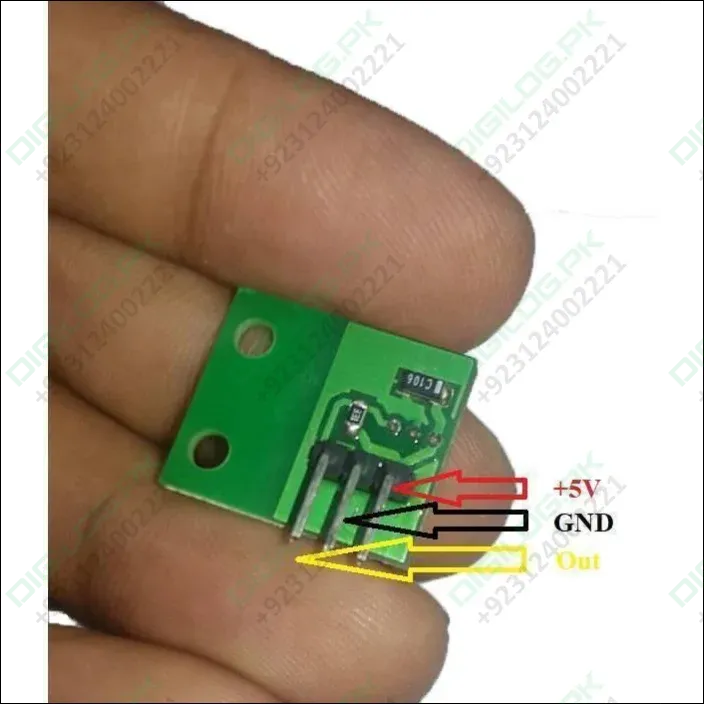

 1x A1104E Hall effect sensor module
