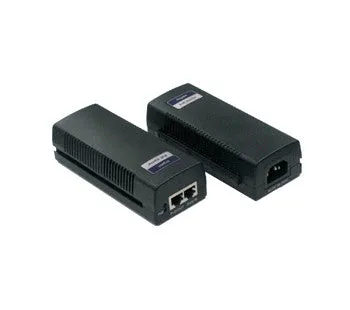

ISI-POE-101 is a economic single port, high-power PoE Injector. Generating up to 30W, POE-I100H supplies remote power for IP camera appication. It complies to IEEE 802.3at PoE standard and backward compatible to IEEE802.3af. It can work with 10/100Base-T networking devices:, Compataible with IEEE 802.3af, Supports Up to 30 W of POE power, Easy Installation - Parallel Slid-in Design, Support 10/100 Base-T Lan Environment, Safety Protection on Low Power Devices.

No. OF POE Ports 1
Pass Through Data Rates 10/100 Mbps
Pin Assignment and Polarity 1/2 ( ), 3/6 (–) or 4/5( ),7/8(-)
Output Power Voltage 52 VDC Maximum
User Port Power 30 Watts Maximum
Input Power AC Input Voltage 100 ~ 240 VAC
Requirements AC Input Current 0.8A @ 100-240 VAC
AC Frequency 50 to 60 Hz
Dimensions 2.74" x 1.6" x 5.2" (87.9 mm x 51.3 mm x 166 mm)
Weight 12.25 Oz(350g)
Indicators System Indicator: AC Power (Green)
Connectors RJ-45
Operating Ambient Temperature -10 to 45 ?
Regulatory IEEE 802.3at/af, RoHS Compliant, CE/FCC
